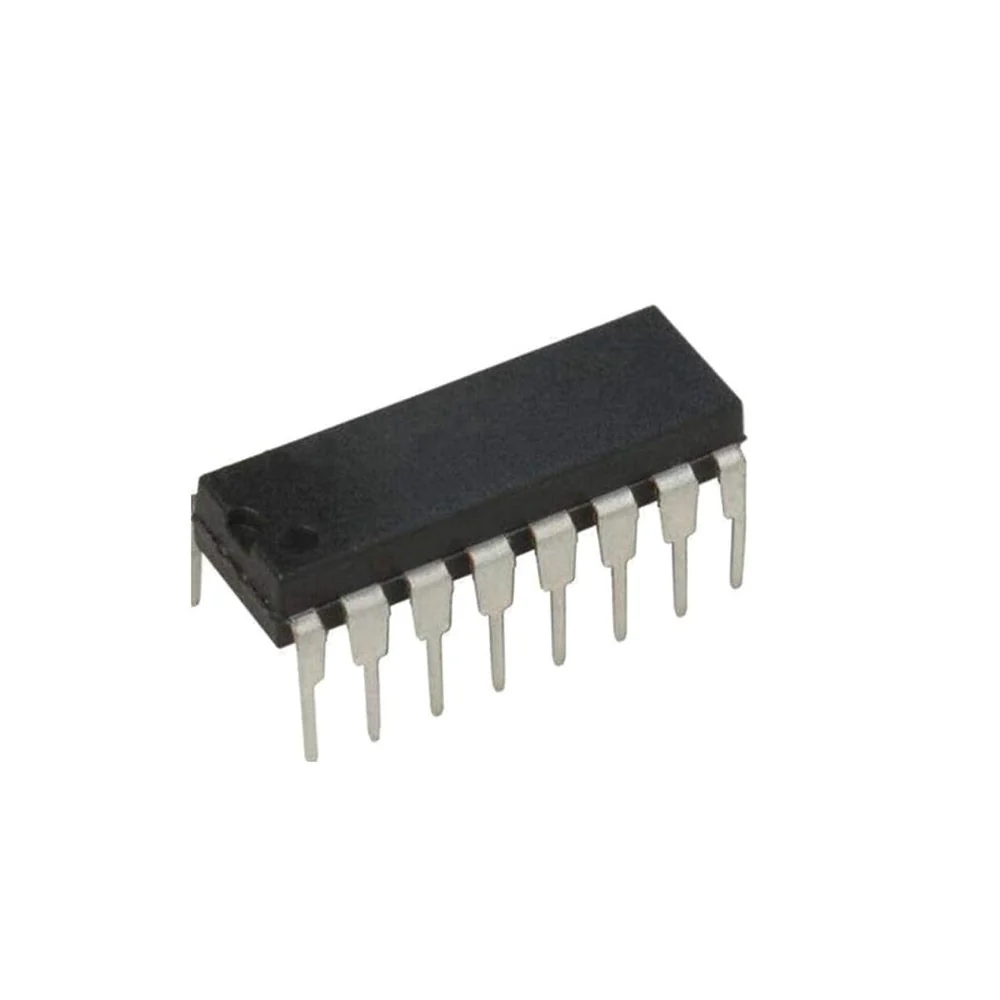

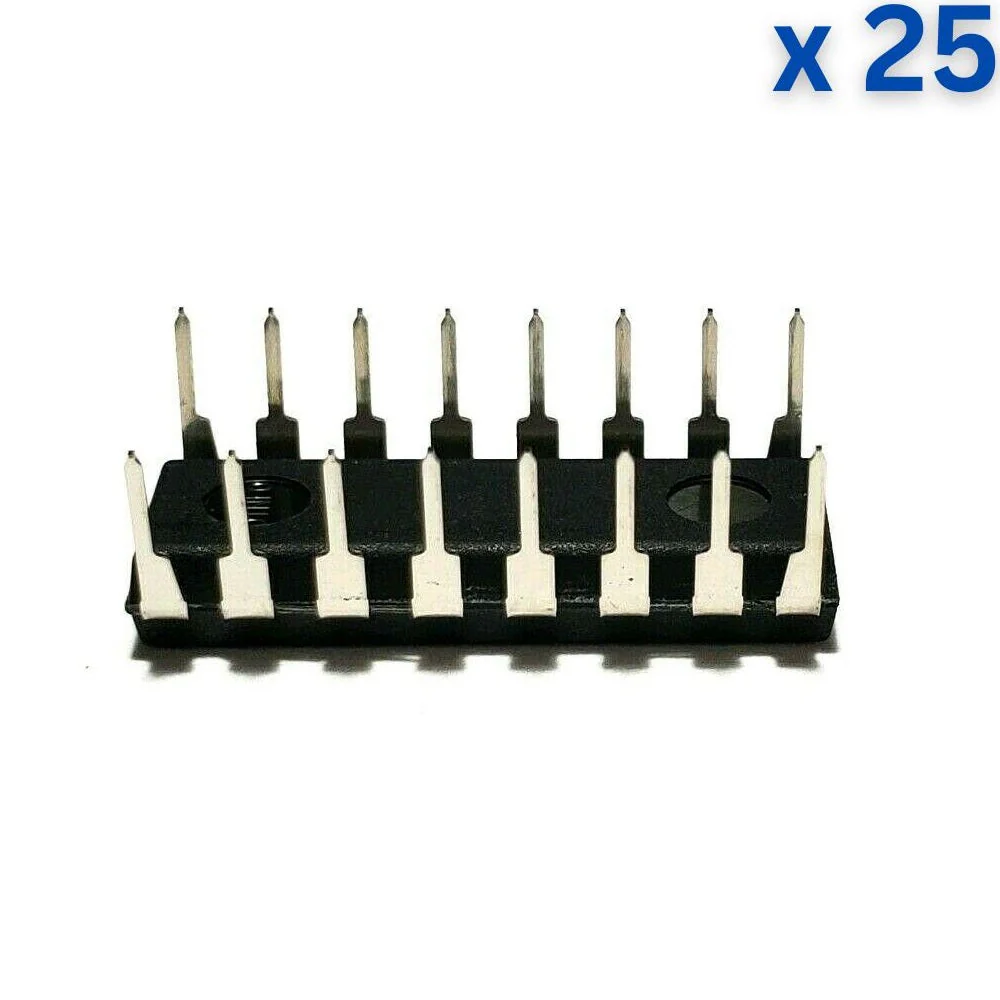

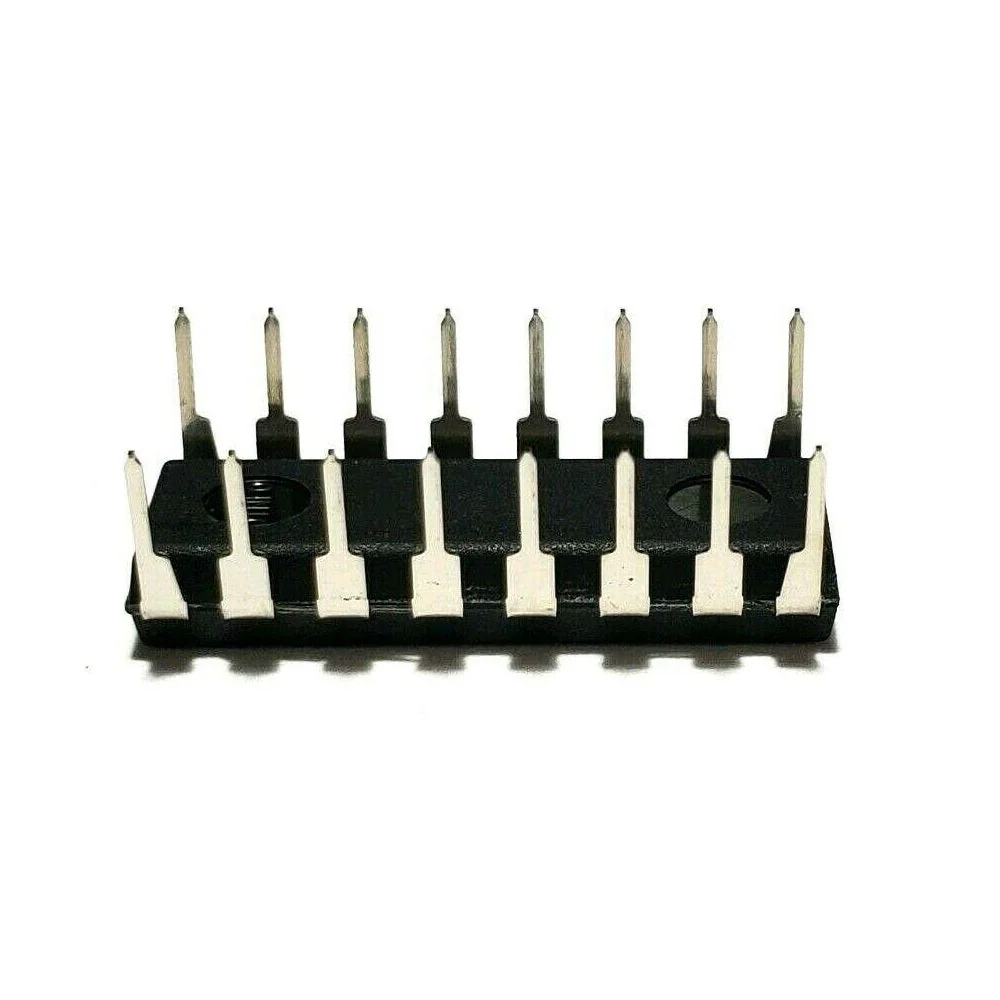

CD4027 belongs to the CD4XXX IC series. The IC is constructed by using the monolithic complementary MOS (CMOS), integrated with p-type and n-type enhancement mode transistors. Each flip-flop has independent J, K, set, reset, and clock inputs and buffered Q and Q outputs.

Technical Specification:

• Part number: CD4027B
• Technology Family: CD4000
• VCC (Min) (V):3V to 18V
• Bits (#):2
• Voltage (Nom):10V
• F @ nom voltage (Max): 8MHz
• ICC @ nom voltage (Max): 0.06mA
• tpd @ nom Voltage (Max): 130ns
• IOL (Max): 1.5mA
• IOH (Max): -1.5mA

Features:

• Two Independent JK Flip-Flops with Set, Reset and Clock Inputs
• Medium Speed up to 12MHz
• Wide Operating Voltage Range
• Low Power CMOS

 Applications:

• Shift Registers
• Ripple Binary Counters
