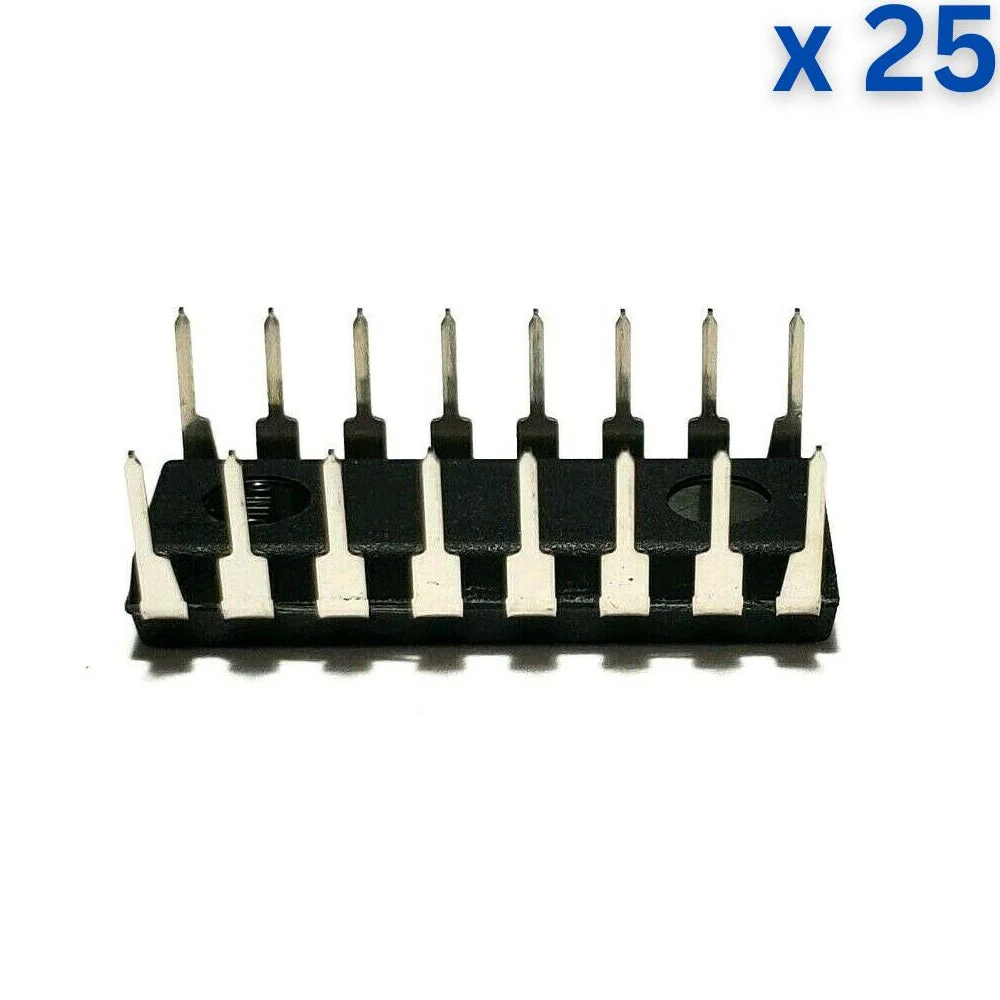

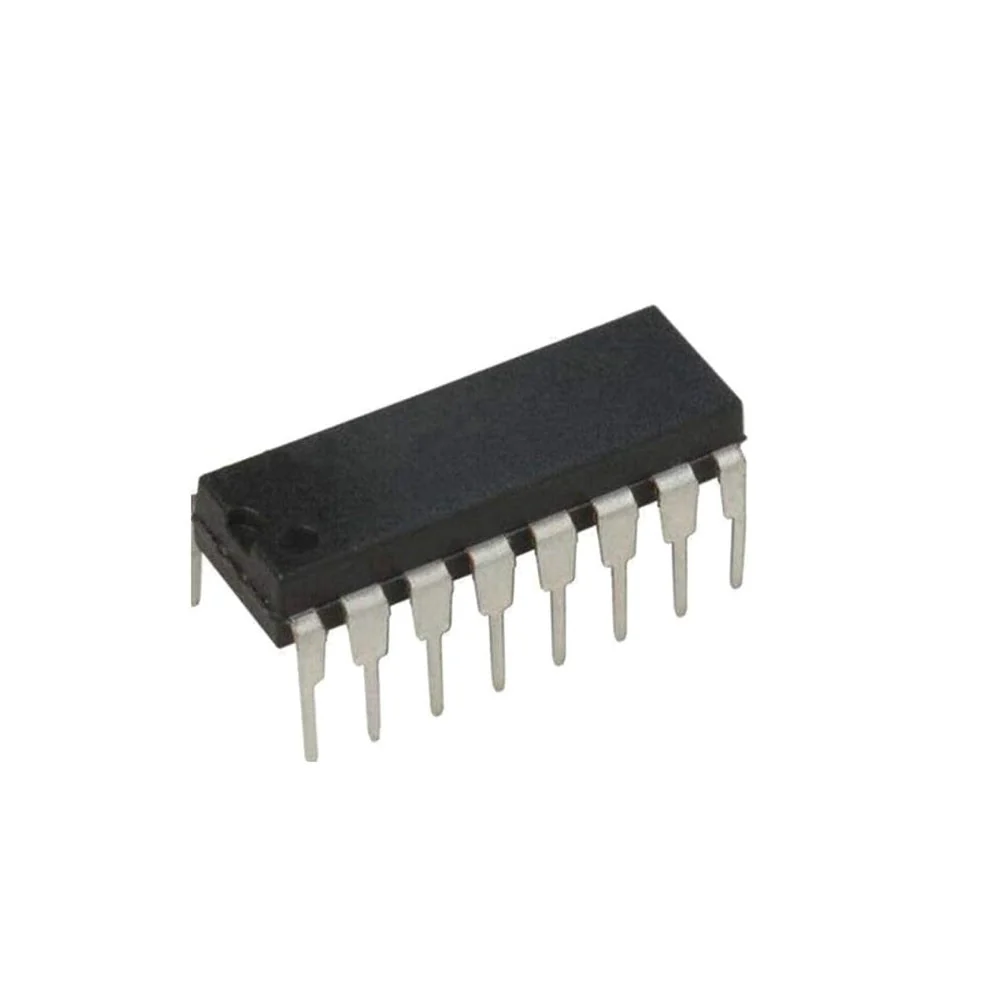

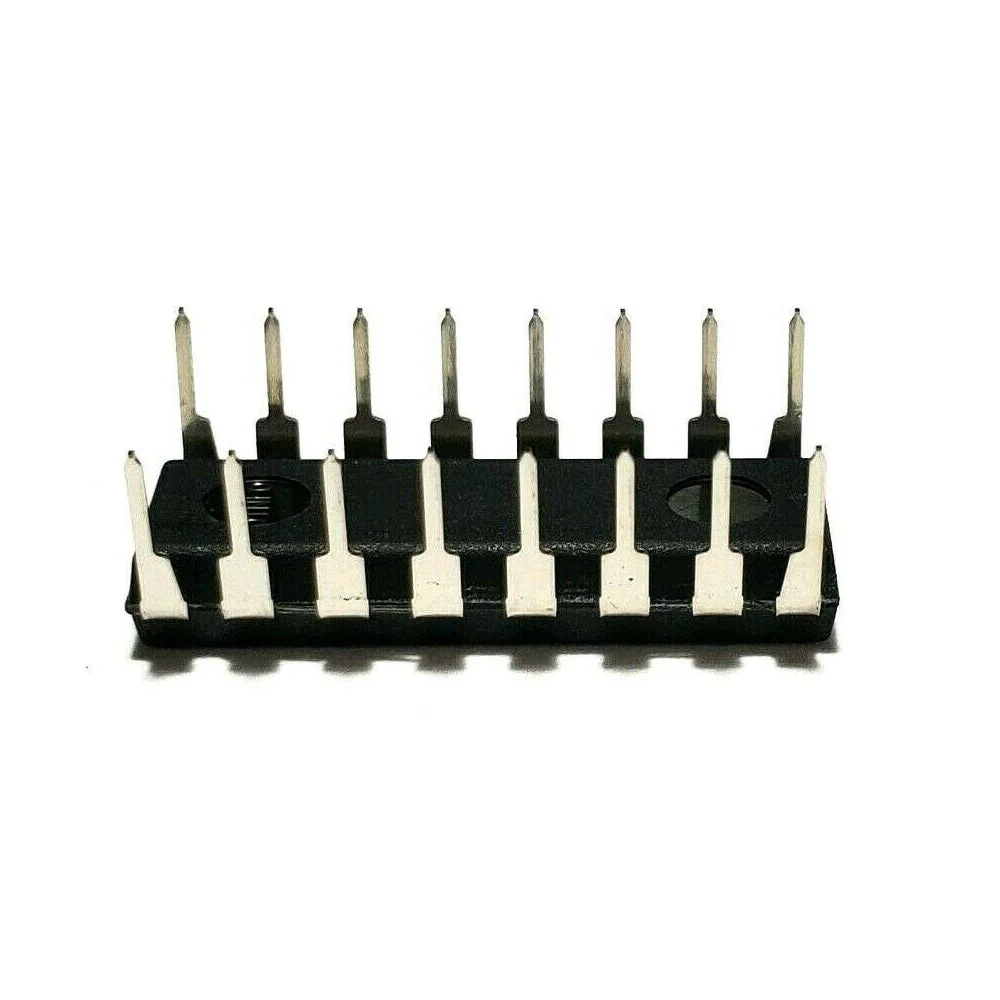

CD4052 Differential 4-Channel Multiplexer/Demultiplexer IC DIP-16 Package
The CD4052 analog multiplexers/demultiplexers are digitally controlled analog switches having a low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3−15V.
Technical Specification:
- Number of Channels: 4 Channel
- Configuration: 2 x 4:1
- Operating Supply Voltage:5 ~ 18V
- Power Dissipation: 700 mW
- Supply Current: 100 uA
- On Resistance – Max: 240 Ohms
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature: +125°C
Features:
- Differential 4-Channel Multiplexer with Two Binary Control Inputs
- The Two Binary Inputs Select Which Pair of the 4-Channels is Connected to the Differential Output
- Low ON Resistance and High OFF Resistance
- Low Power TTL
Applications:
- Multiplexer and Demultiplxer circuit
- A/D and D/A converter circuits
- Network switching
- Programmable Logic circuits
