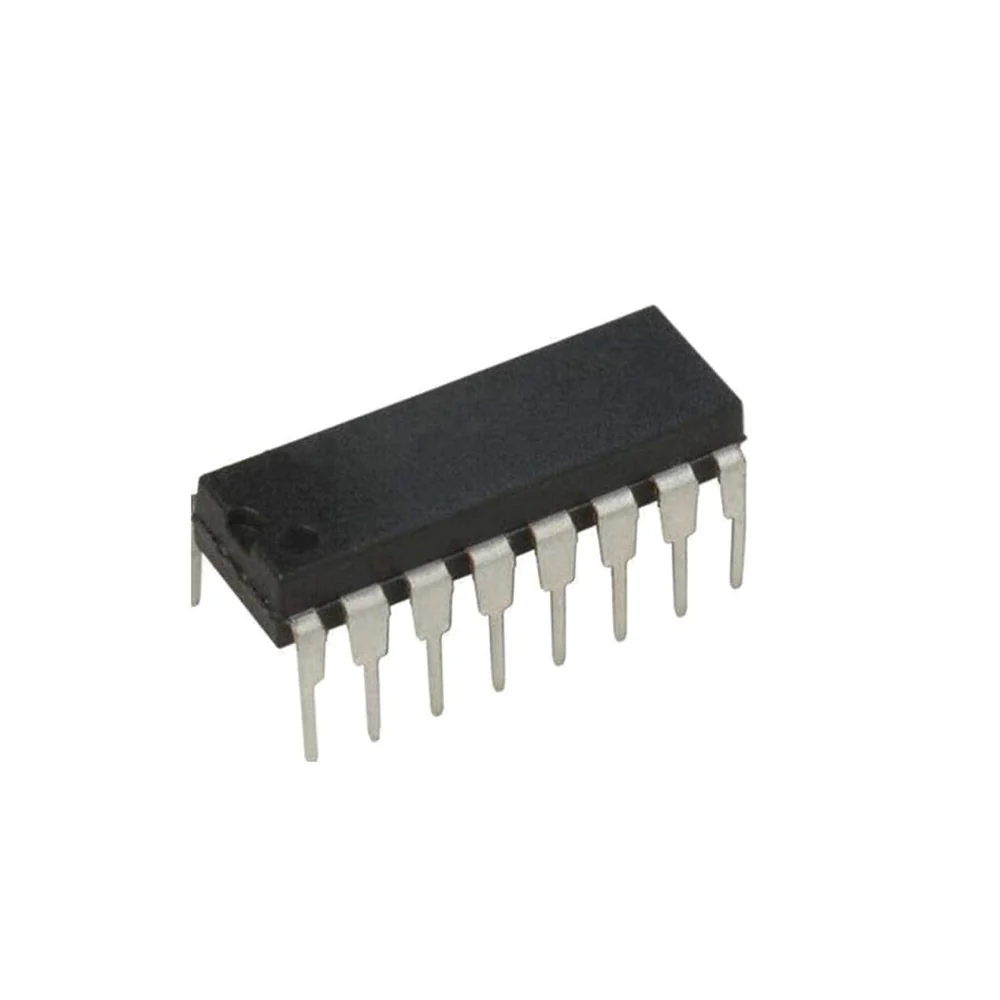

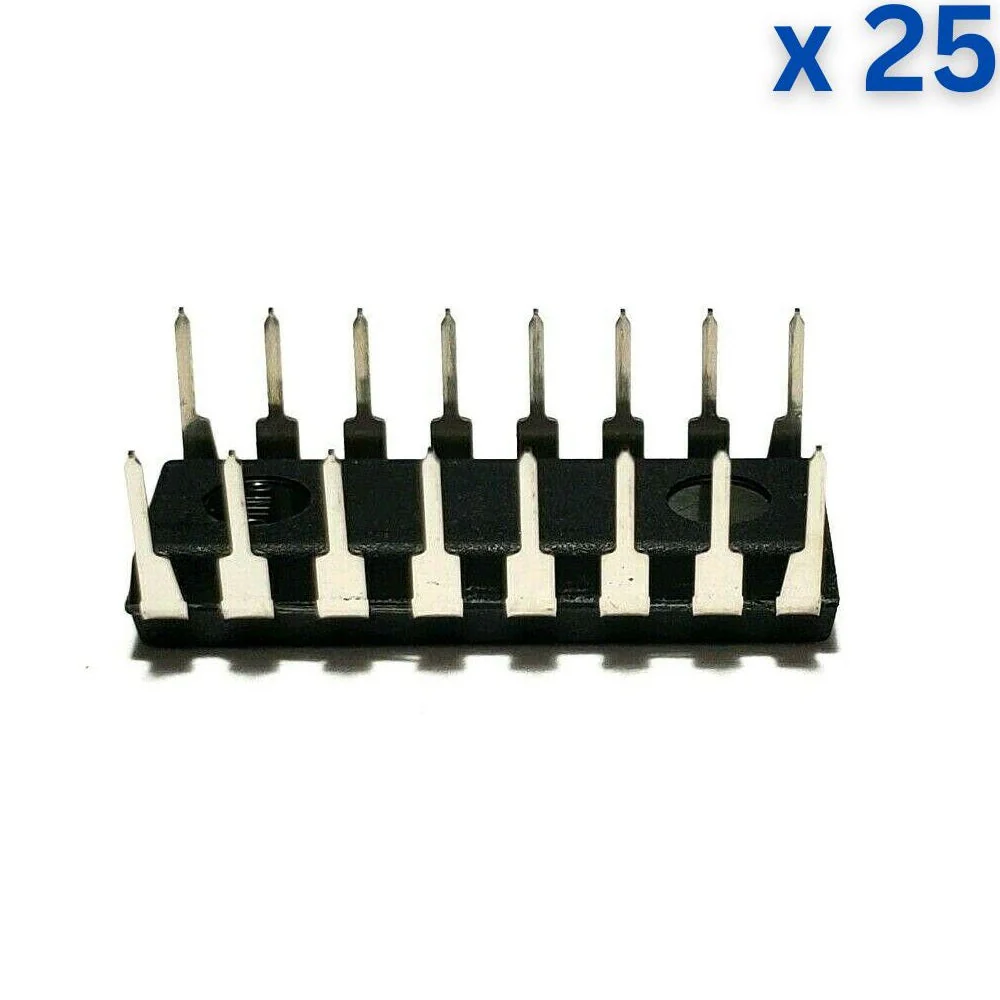

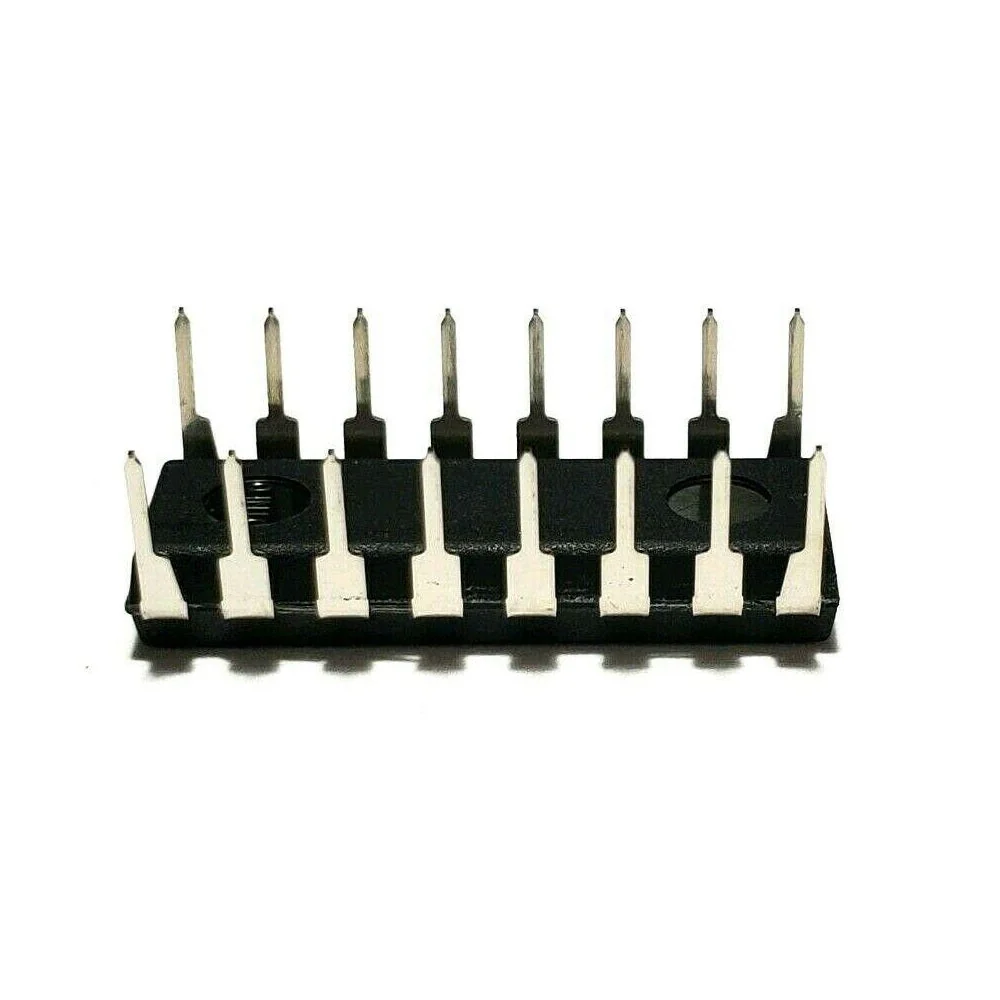

CD4054 4-Segment Display Driver IC DIP-16 Package
CD4054 belongs to the CD4000 IC series. The CD4054 is a display driver IC for a 4 – segment Liquid crystal display. The IC is made by using the complementary MOS (CMOS) technology. Integrated with p-type and n-type enhancement mode transistors. CD4054 is always available in a 16-pin hermetically sealed dual in line IC package.
Technical Specification:
- Supply Voltage Range: 3 to 20V
- Input Current: ±10mA
- Power Dissipation: 200mW
- Low level Output Voltage: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 800ns
Features:
- For Ultra-Low-Power LCD Displays
- Voltage Doubling Across Display
- Low or High Output Level DC Drive
- On Chip Logic Level Conversion
- Full Decoding of all Input Combination
Applications:
- General purpose displays
- Calculators and meters
- Wall and table clock
- Industrial control panels
- Auto dashboard displays
- Panel meters
- Appliance control panels
