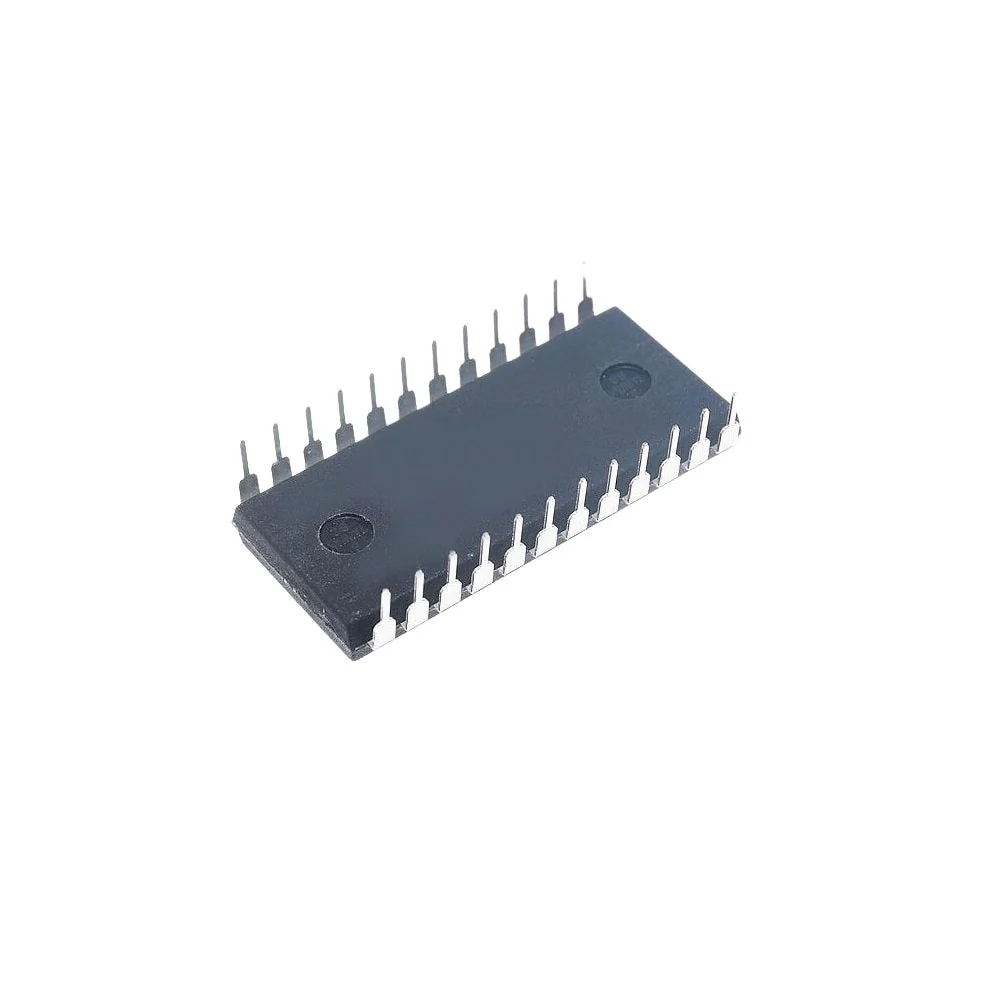

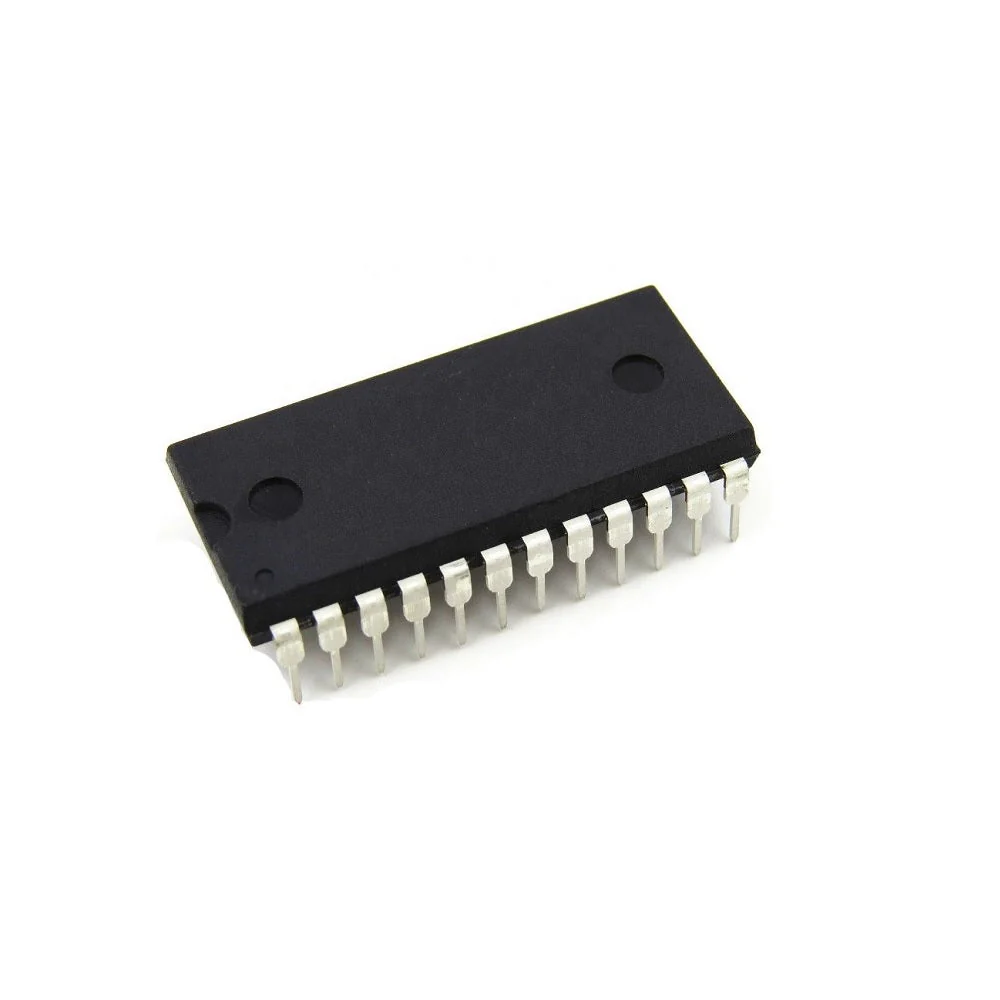

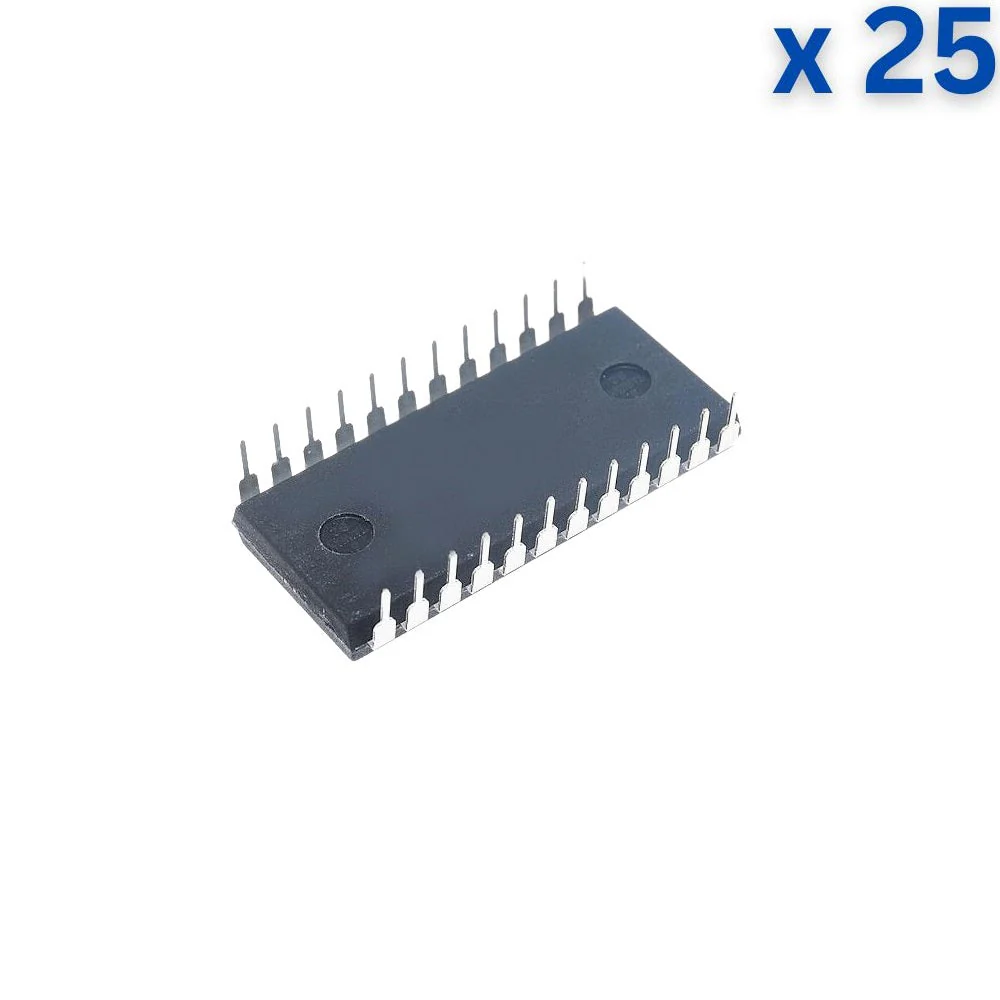

CD4515 4-Bit Latch/4-16 Decoder IC DIP-24 Package
The CD4514BC and CD4515BC are 4-to-16 line decoders with latched inputs implemented with CMOS circuits constructed with N- and P-channel enhancement mode transistors.
Technical Specification:
- DC Supply Voltage (VDD): −0.5V to +18V
- Input Voltage (VIN): −0.5V to VDD + 0.5V
- Storage Temperature Range (TS): −65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL): 260°C
Features:
- 4-bit Strobed Latch with 4-to-16 Line Decoder
- Inhibit Control
- Inhibit=1 Sets all Outputs to 1
- DC Supply Voltage up to 20V
- Maximum Input Current of 1 µA
- Equivalent to MC14515
Applications:
- Digital Multiplexing
- Address Decoding
- Hexadecimal/BCD Decoding
- Program-counter Decoding
- Control Decoder
