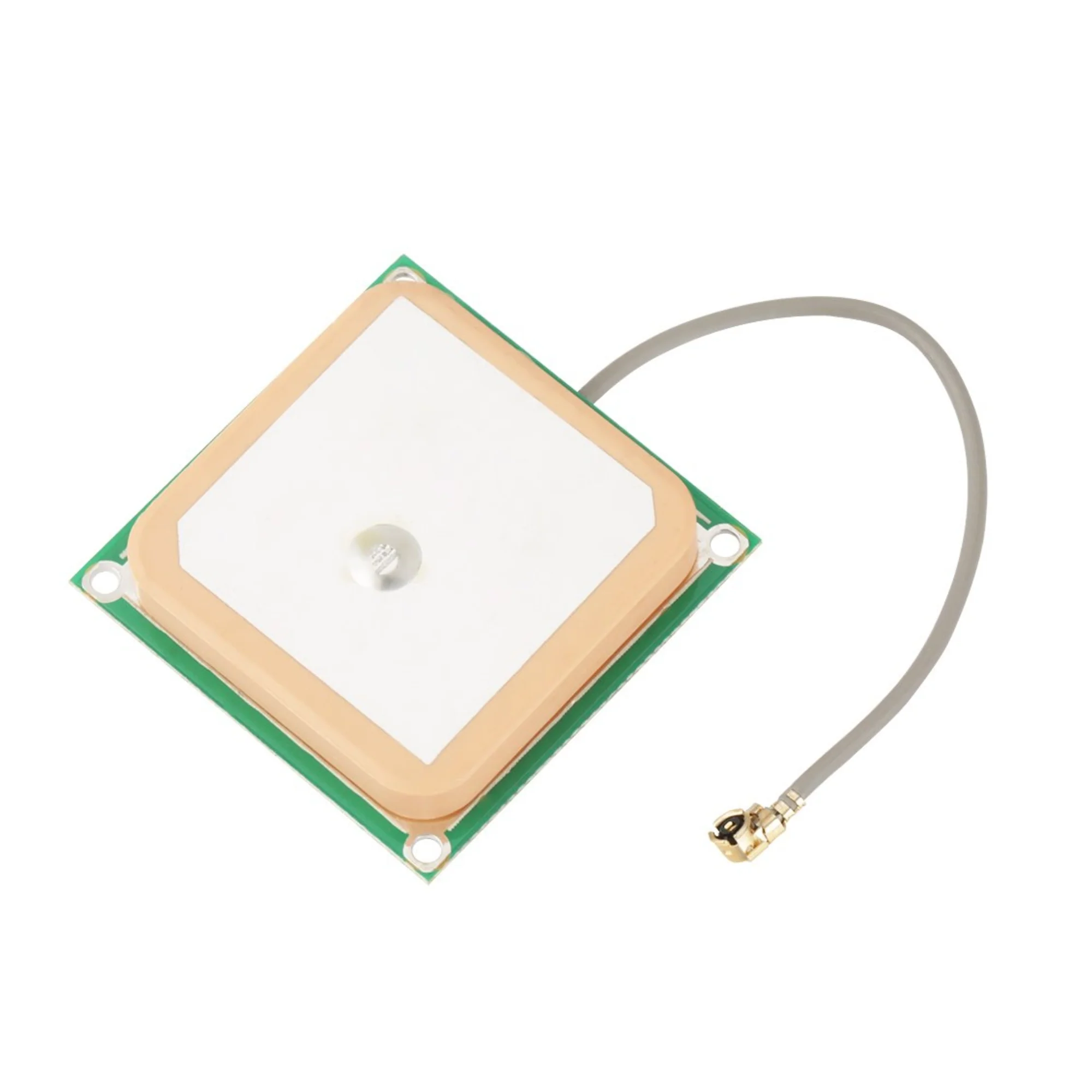

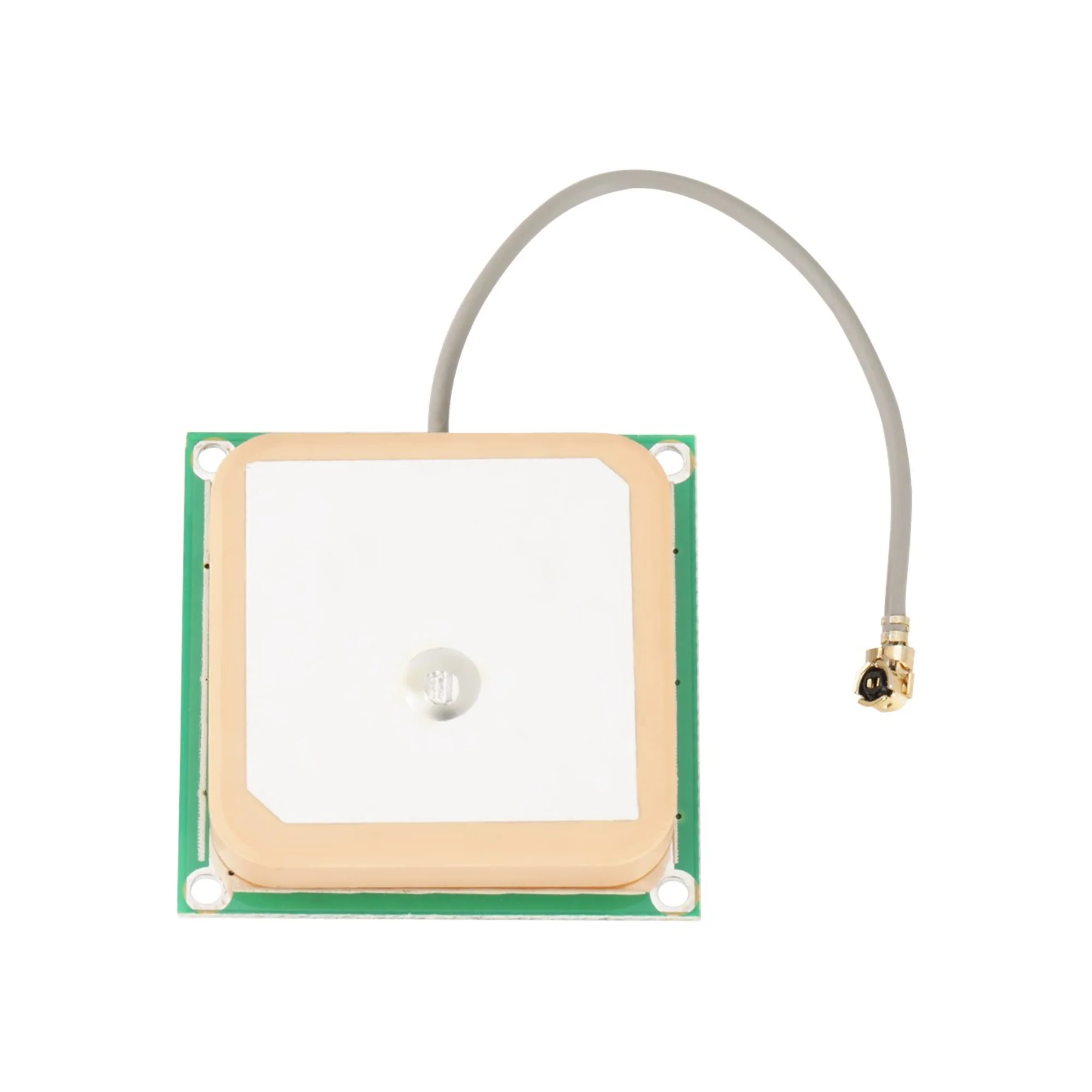

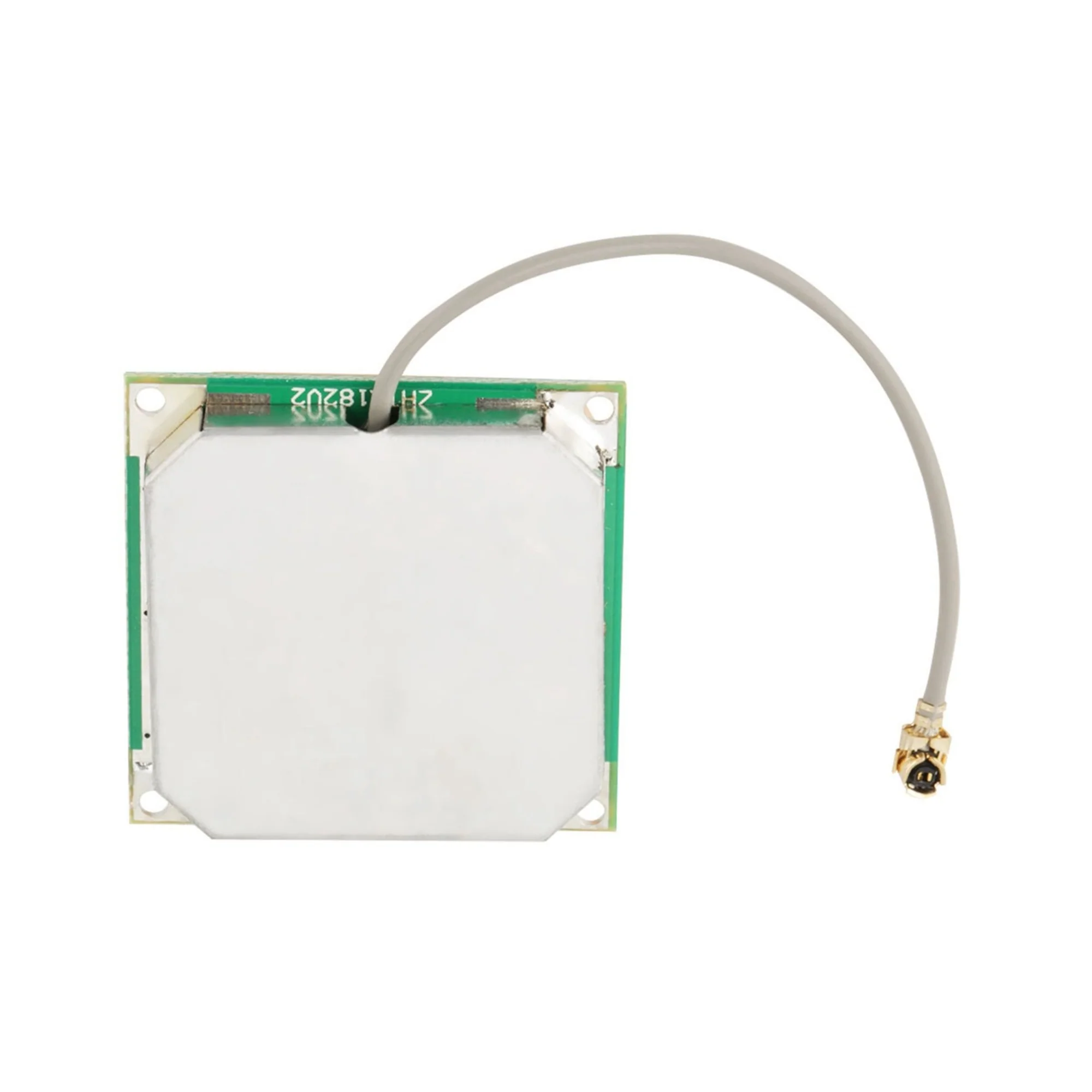

Ceramic Active GPS Antenna 25x25x8mm 28db High Gain 5cm Length

The Ceramic GPS Antenna 25×25×8 mm is a compact, high-performance passive GPS patch antenna designed for reliable satellite signal reception. It is widely used in GPS, GNSS, and navigation-based applications where stable positioning and compact size are required.

Technical Specifications:

• Antenna Type: Ceramic GPS patch antenna

• Frequency Band: GPS L1 (1575.42 MHz)

• Polarization: RHCP (Right Hand Circular Polarization)

• Gain: Typically 2–5 dBi (application dependent)

• Impedance: 50 Ω

• Connector Type: u.FL / IPEX

• Antenna Dimensions: 25 × 25 × 8 mm

• Cable Type: RF coaxial cable (pre-attached)

• Mounting Type: PCB mount with screw holes

Features:

• Compact ceramic patch design

• Optimized for GPS L1 frequency

• Stable signal reception and low noise

• Lightweight and space-saving form factor

• Easy integration with GPS and GNSS modules

• Suitable for embedded and portable devices

Applications:

• GPS navigation systems

• UAVs, drones, and flight controllers

• IoT tracking devices

• Vehicle tracking and telematics

• Robotics and autonomous systems

• Timing and positioning applications
