Mini 360 Step-Down Buck Converter Power Module

The Mini 360 takes a higher voltage (e.g., 12V) and converts it to a lower voltage (e.g., 5V) efficiently, without generating much heat, making it ideal for compact and low-power applications. A compact and efficient voltage regulator ideal for Arduino and other electronics projects.

Technical Specifications:

Input Voltage: 4.75V to 23V DC
Output Voltage: 1V to 17V (adjustable via potentiometer)
Output Current: Up to 1.8A max (1.2A recommended for continuous use)
Voltage Regulation: ±0.5%
Chip Used: MP2307DN (or similar step-down converter IC)
Module Type: Mini 360 Buck Converter
Switching Frequency: 340 kHz
Output Ripple: ~30mV (low, depending on load and wiring)

Pinouts:

Pin Label	Function
IN+	Input voltage positive
IN-	Input ground (GND)
OUT+	Output voltage positive
OUT-	Output ground (GND)

Connection with Battery and Adapter:

The Mini 360 Step-Down Buck Converter is a hardware-only power module — it does not require any code to operate.

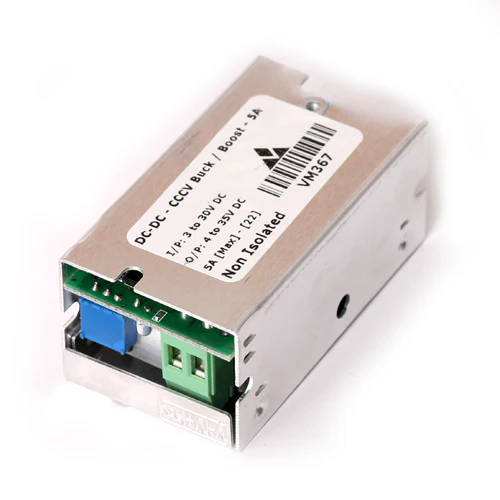

DC-DC - CCCV Buck/Boost - 5A
