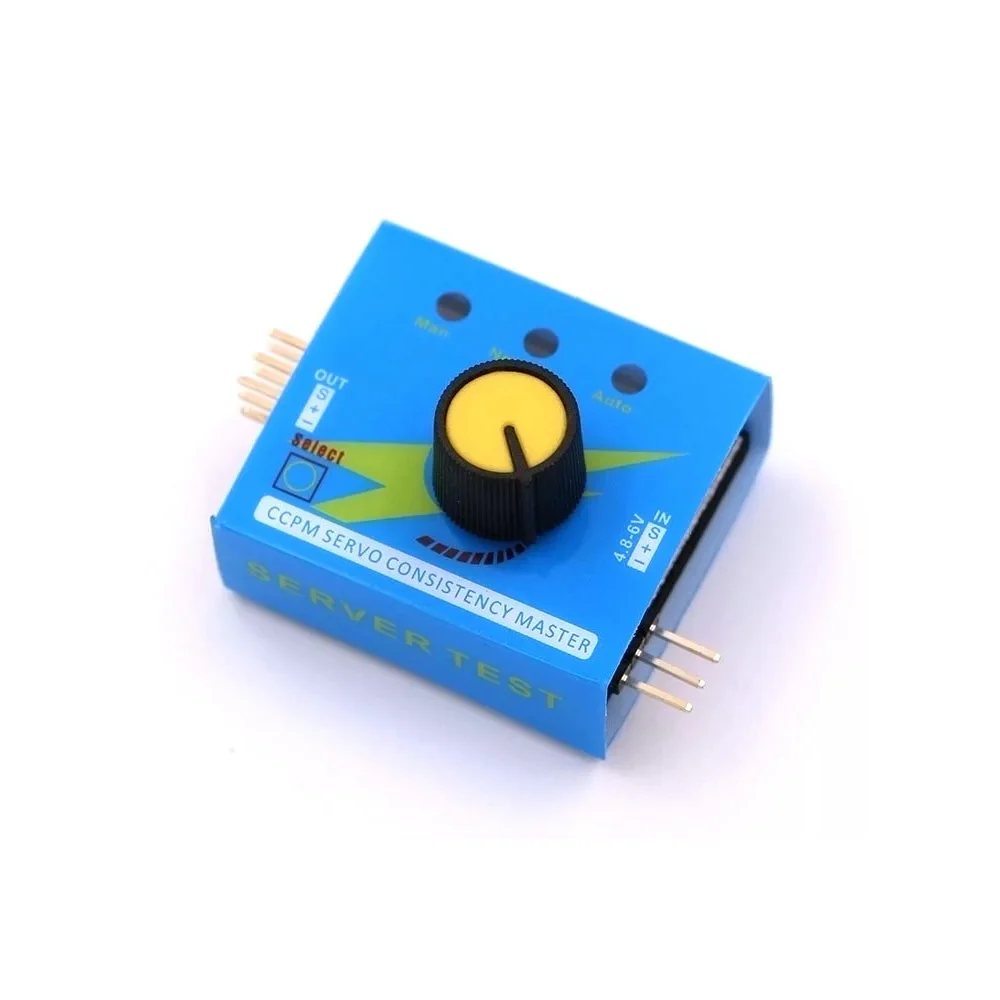

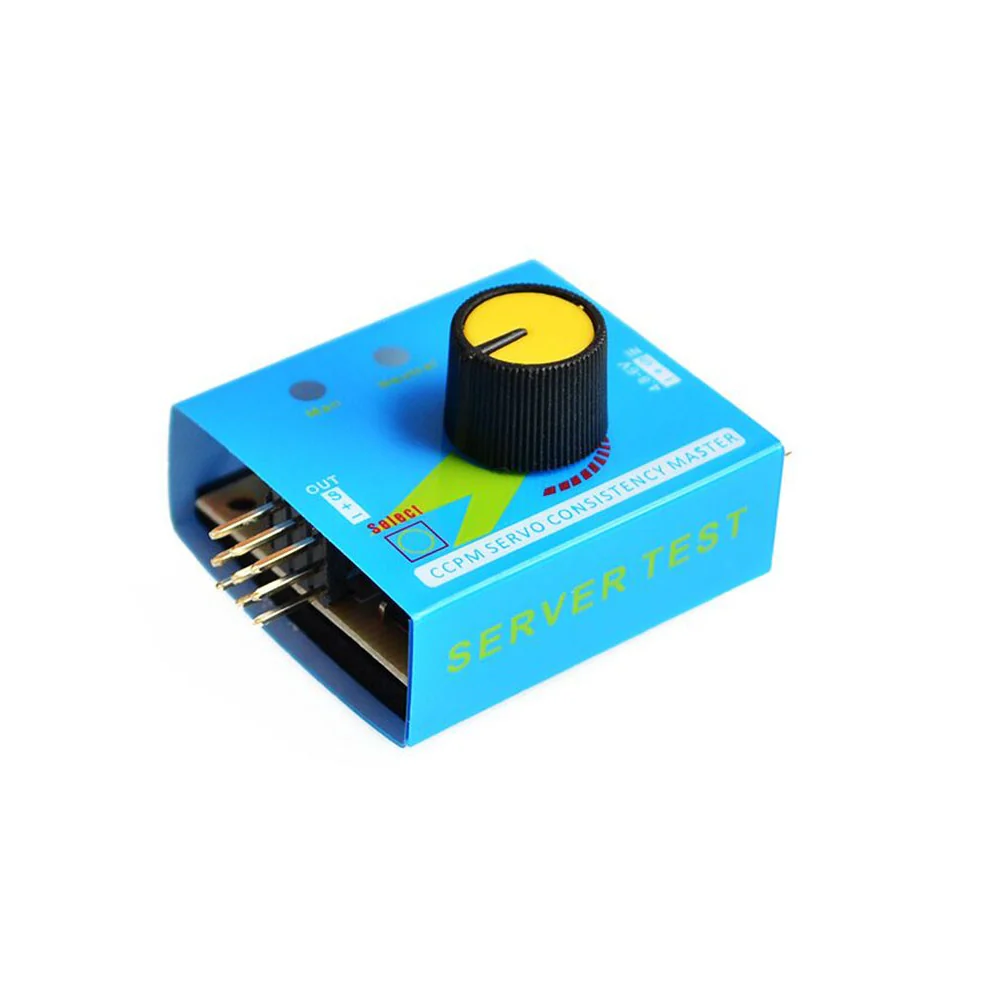

CCPM Servo Consistency Master/Servo Tester is a device that can be effectively used to test up to three servo motors at the same time. It is a useful tool to test Servo motors, ESC, and can be used to determine the motor directions.

For ESC (Electrical Speed Controller), the device can produce a signal without the transmitter and receiver.

Technical Specification:

• CCPM Servo Tester, ESC or Servo tester
• Output: 15mA (5.0)
• Operating Voltage(VDC): 8 to 6
• Output Signal: 5ms±0.5ms
• Color: Blue
• Knob Diameter(mm):12
• Size: 48mm*42mm*17(L*W*H)

Features:

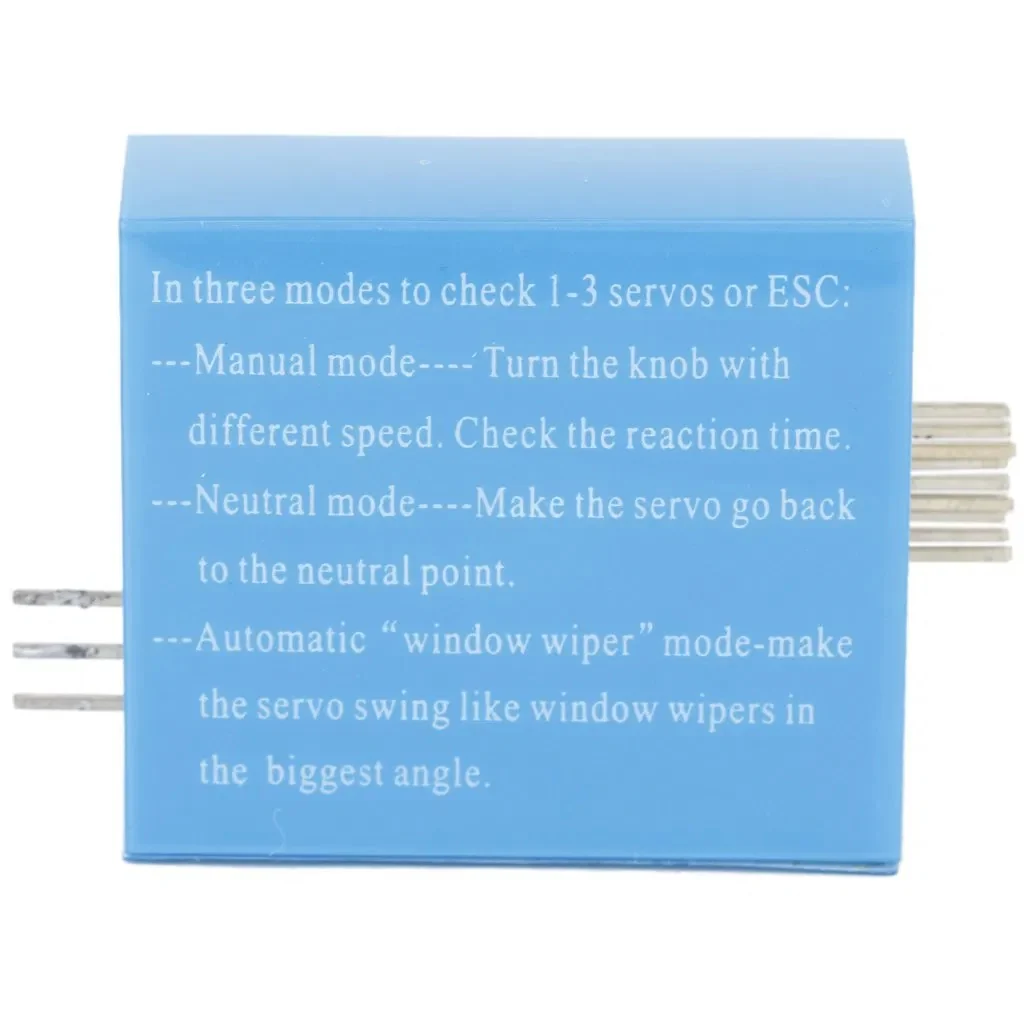

• The Manual Mode allows you to turn the knob to different speeds and check the reaction time
• The Neutral mode makes the servo go back to the neutral point
• The Automatic(Window Wiper) Mode makes the servo swing like a window wiper in the largest angle possible
• Connect to up to 3 servos simultaneously
• Adjustment: manual, automatic, and the median.
• Indicator LEDs
• Can test up to 3 ESC simultaneously
• Enclosure Box
• Mode selection LED Indicator
• Adjustable Knob for manual speed control

Applications:

• ESC Testing
• Servo operations before and after installations in the model
• Servo fault determination
