ESP32 GPIO Expansion Screw Terminal Module
ESP32 GPIO Expansion Screw Terminal Module

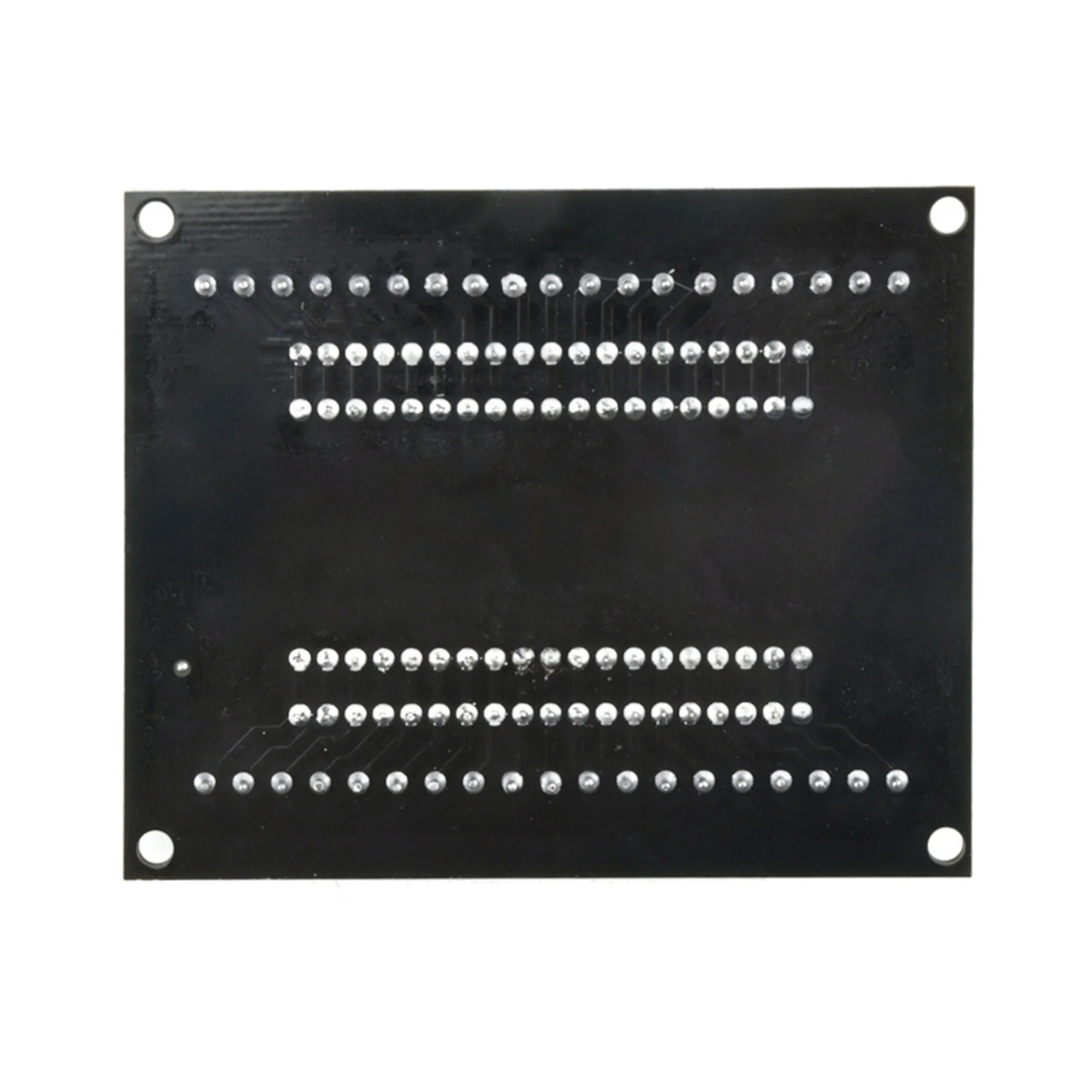

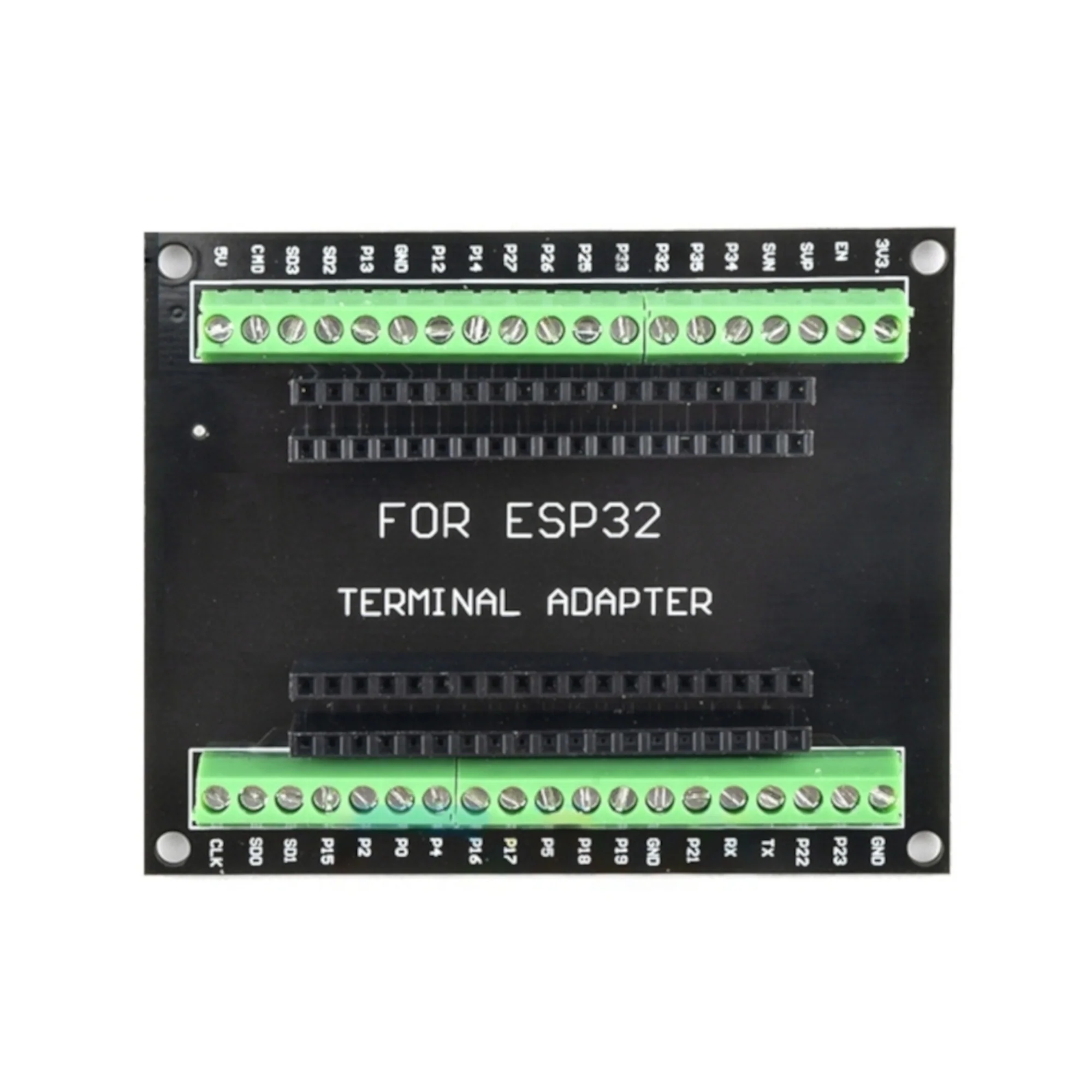

The ESP32 GPIO Expansion Screw Terminal Module is a breakout and terminal adapter board designed to simplify wiring and prototyping with ESP32 development boards. It converts all ESP32 GPIO pins into clearly labeled screw terminals, allowing secure and tool-free connection of sensors, relays, motors, and external circuits. This module is ideal for industrial testing, automation projects, and permanent installations where reliable connections are required.
Technical Specifications:
- Compatible board: ESP32 Dev Module / ESP32 DevKit (30-pin / 38-pin variants, model dependent)
- Interface type: Screw terminal blocks
- GPIO access: All ESP32 GPIO, power, and control pins
- Terminal type: 3.5 mm pitch screw terminals
- Logic voltage: 3.3 V
- Power pins: 3.3 V, 5 V (VIN), GND
- PCB material: FR-4
- Mounting: Pre-drilled mounting holes
- Labeling: Silkscreen pin names for easy identification
Features:
- Converts ESP32 pins to secure screw terminals
- No soldering required
- Clearly labeled GPIO, power, and communication pins
- Strong and vibration-resistant connections
- Ideal for prototyping and industrial wiring
- Reduces wiring errors and debugging time

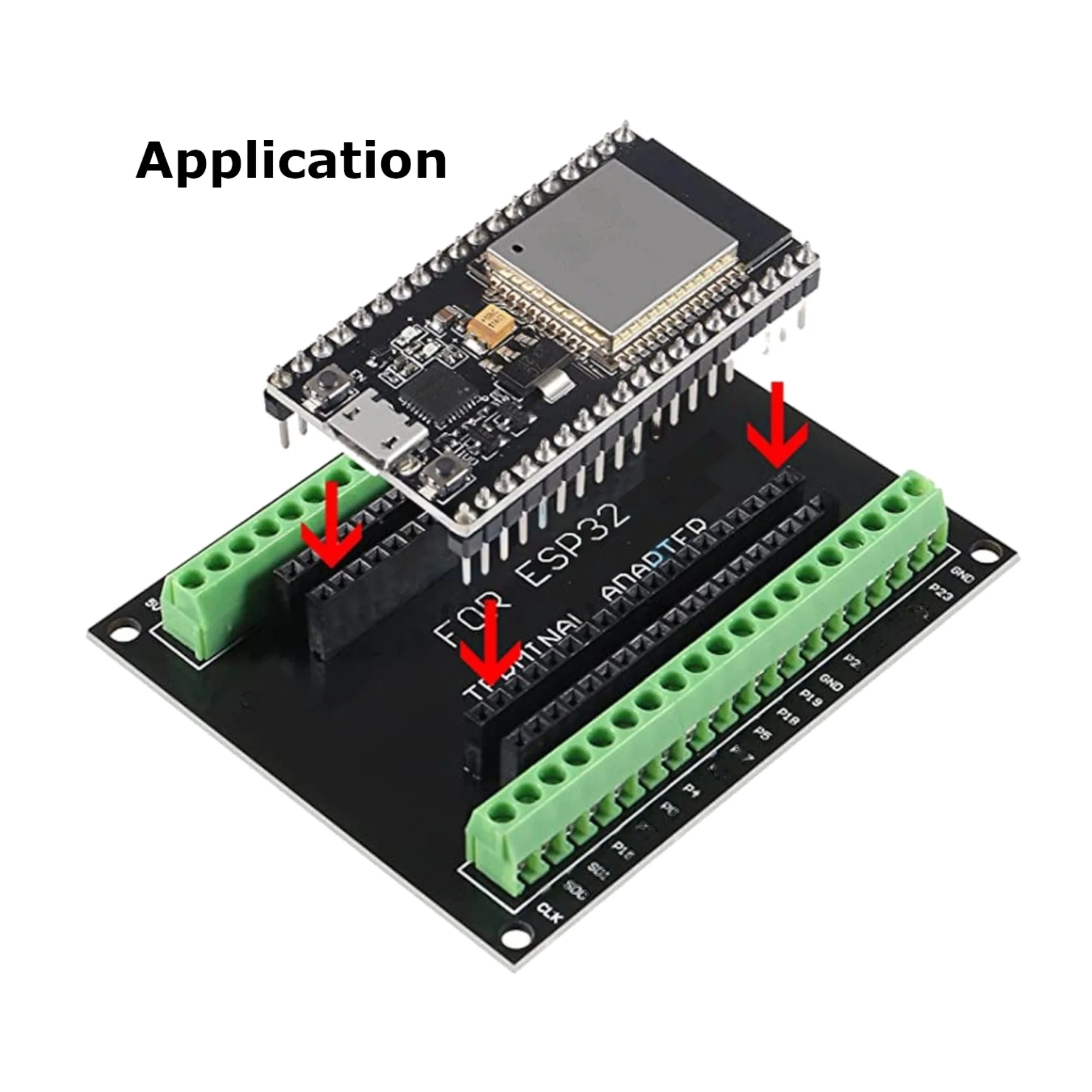

- Plug-and-play design with ESP32 boards
Applications:
- Industrial automation and control panels
- IoT and smart home projects
- Sensor and actuator interfacing
- Educational and training setups
- Robotics and motion control systems
- Relay, motor driver, and PLC interfacing
- Long-term and field-installed ESP32 projects
