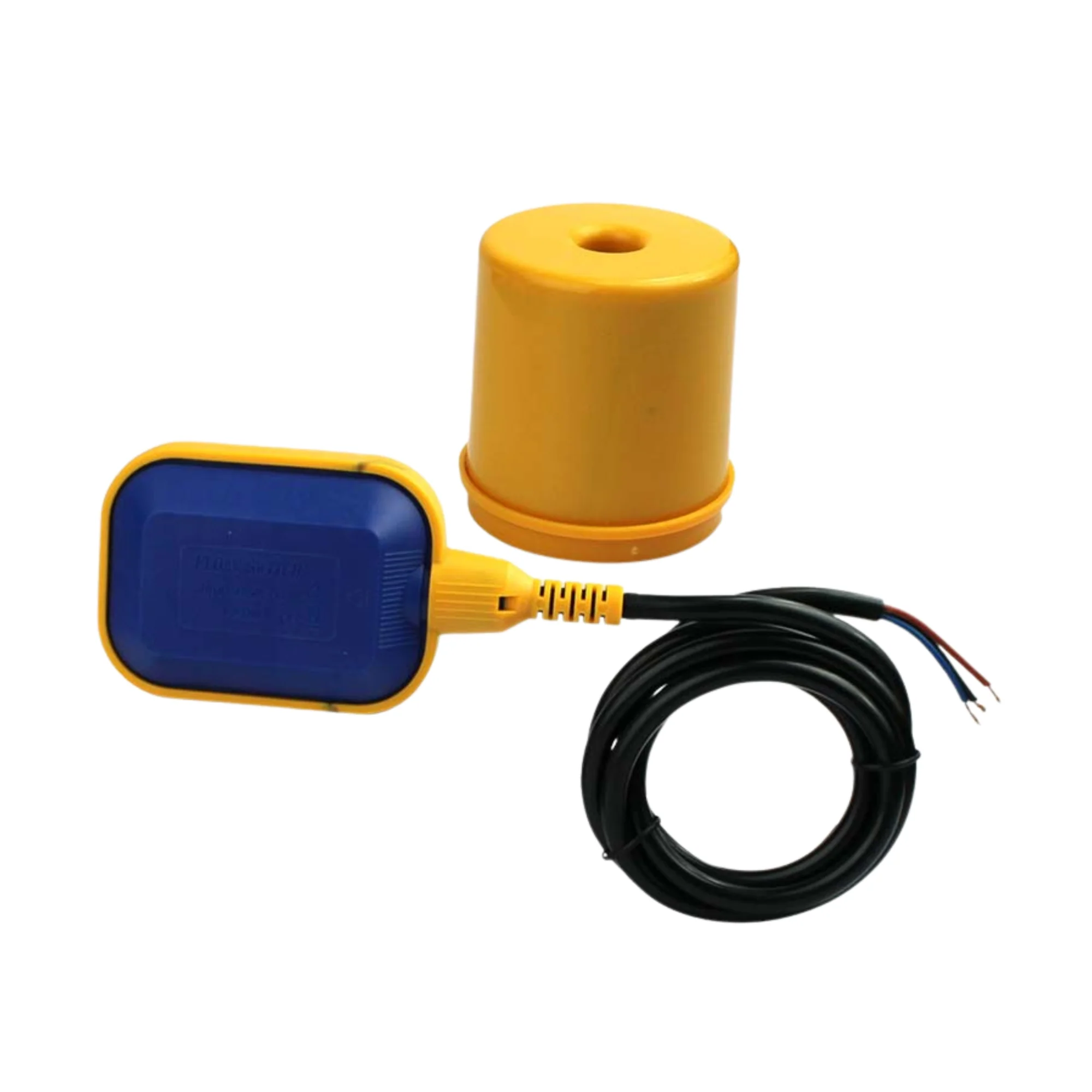

Float Switch For Industry Pump Tank Sensor

A float switch is a mechanical liquid-level sensing device used to automatically control pumps, alarms, or valves based on the liquid level in a tank or sump. It works using a sealed float containing an internal microswitch that changes state when the float tilts due to rising or falling liquid levels. This makes it a simple, reliable, and cost-effective solution for liquid level control in industrial and domestic systems.

Technical Specifications:

• Switch type: Mechanical tilt float switch
• Contact configuration: SPST (Normally Open / Normally Closed selectable)
• Rated voltage: AC 250 V / DC 30 V
• Rated current: 5 A to 10 A (resistive load)
• Float material: High-strength plastic (PP / ABS)
• Cable material: PVC, oil- and water-resistant
• Cable length: 2 m to 10 m (varies by model)
• Operating temperature: 0°C to 60°C
• Protection rating: IP68 (fully waterproof)
• Mounting method: Free-hanging with adjustable counterweight

Features:

• Fully sealed waterproof construction
• No external power required for operation
• Supports both filling and draining control modes
• High reliability with minimal maintenance
• Corrosion and chemical resistant housing
• Adjustable switching level using counterweight
• Long operational life in industrial environments

Applications:

• Water tank level control
• Submersible and sump pump automation
• Sewage and wastewater systems
• Industrial liquid storage tanks
• Overflow and dry-run pump protection
• Level-based alarm and monitoring systems
