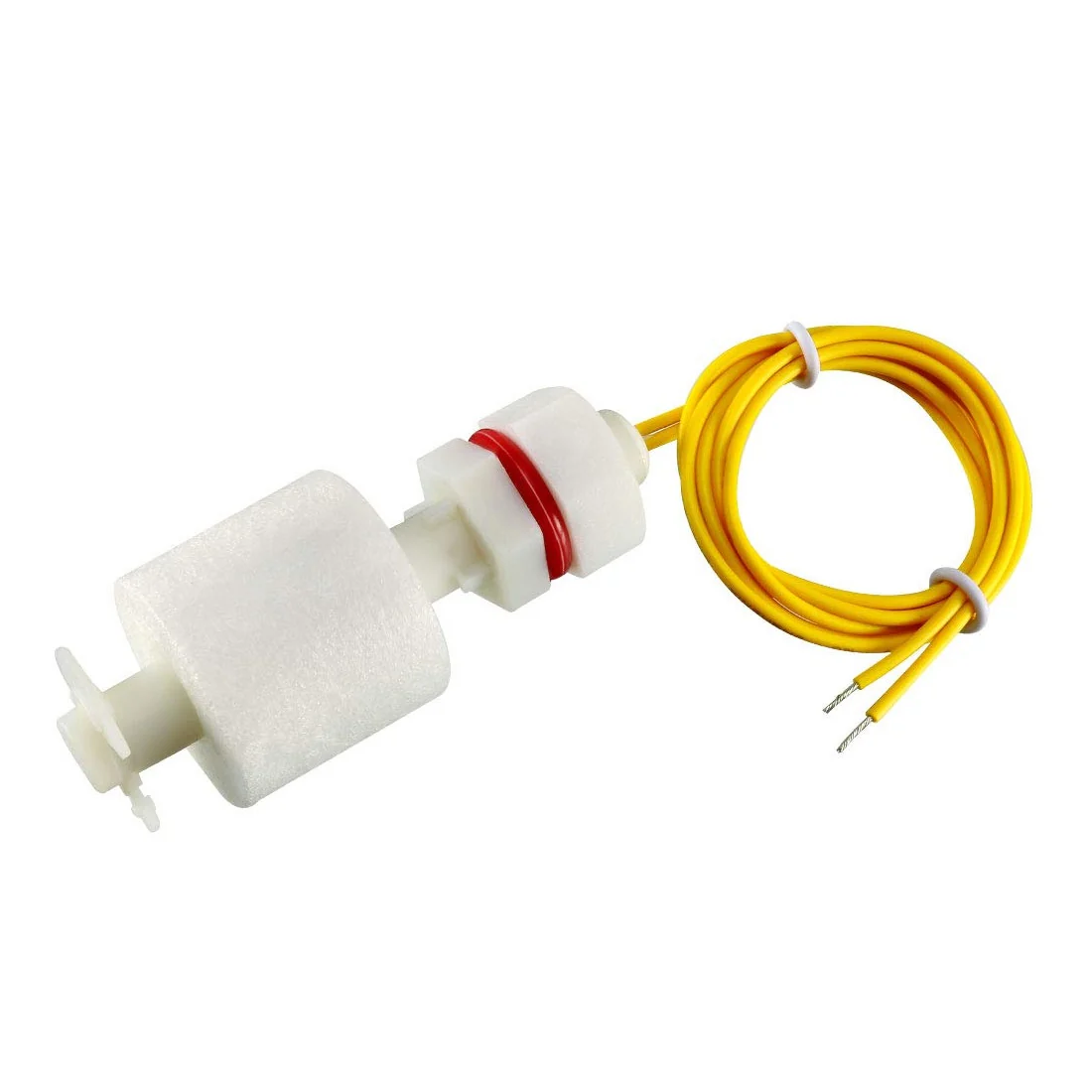

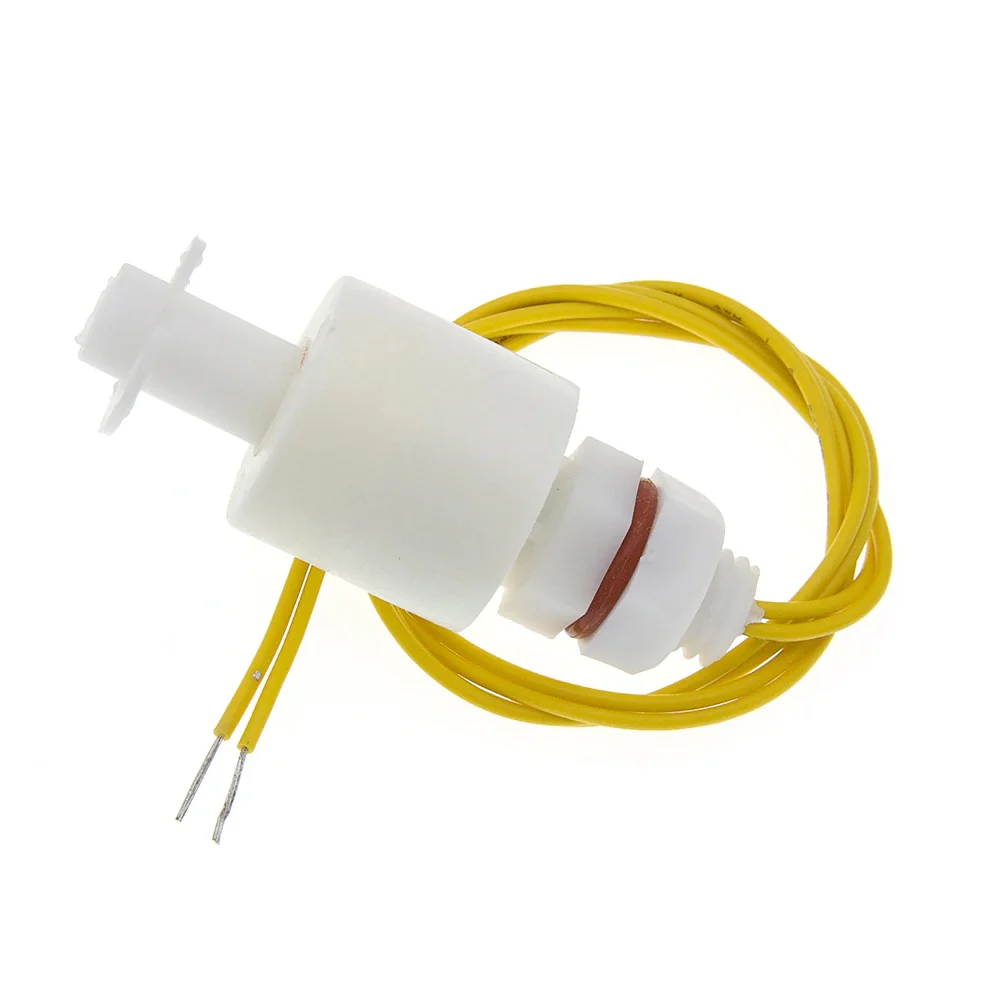

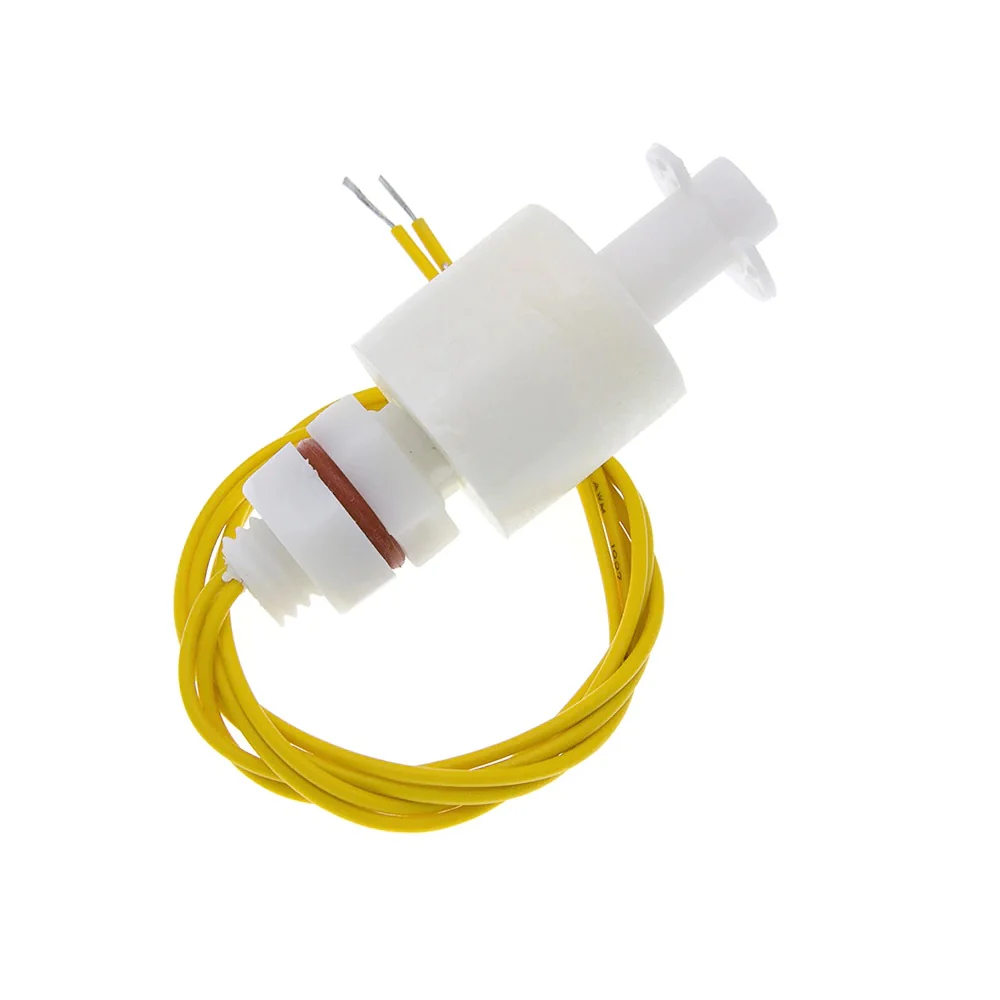

A float switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or another device.

Technical Specification:

• Cable Length: 30.5(cm)
• Maximum Load: 50 W
• Max Switching Voltage: 100V DC
• Minimum Voltage: 250V DC
• Maximum Switching Current: 0.5 A
• Max Load Current: 1.0 A
• Max Contact Resistance: 0.4 Ω
• Temp Rating: -20~ 80 degree

Features:

• Float switches can deliver millions of on/off cycles
• Float encases a sealed magnet, which moves up and down the length of the stem as a fluid level rises and falls
• Easy to use level control device

 Applications:

• Shipbuilding industry
• Generating equipment
• Petrochemical and food industry
• Water treatment equipment
• Dyeing, and finishing industry
• Hydraulic machinery
