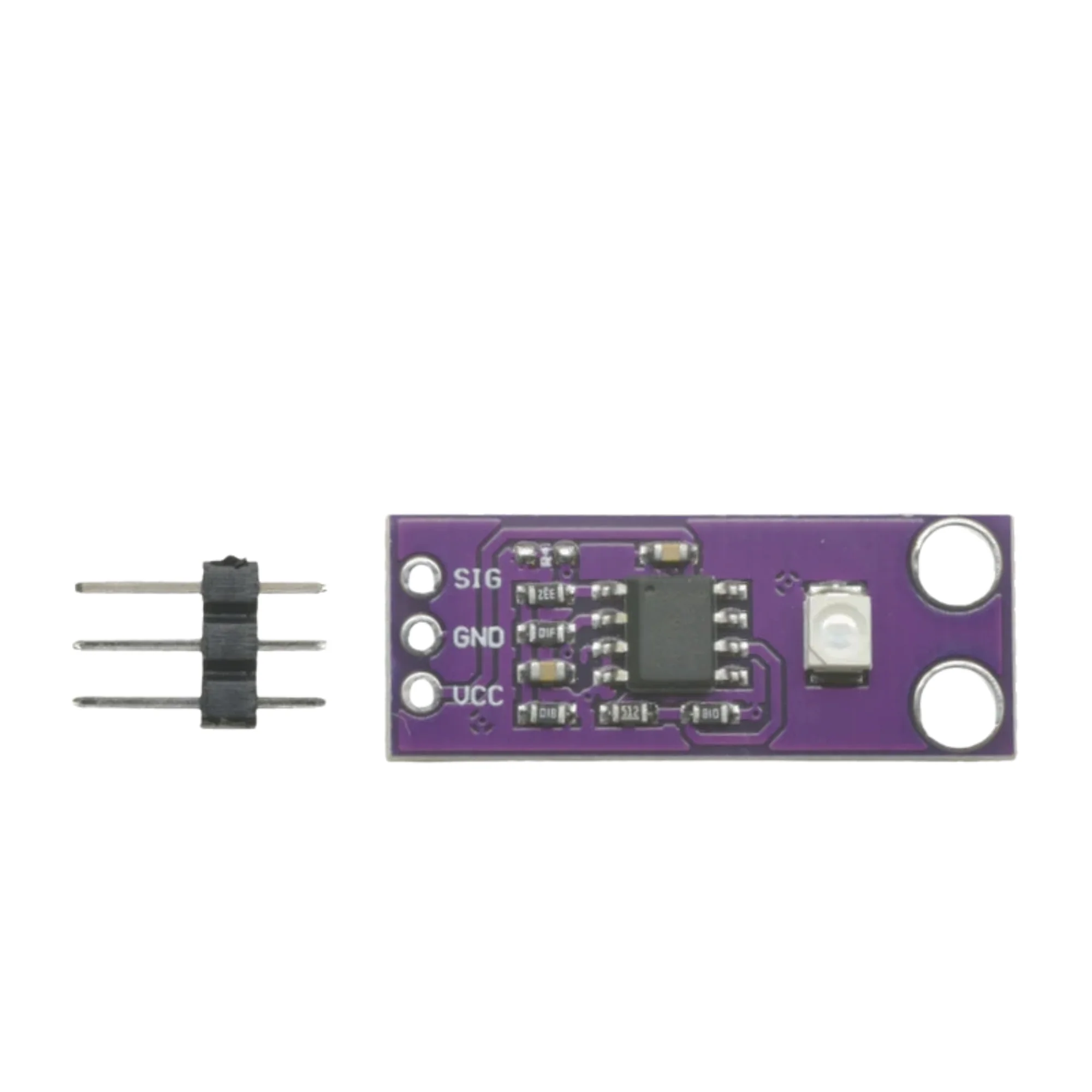

GUVA-S12SD UV Sensor Module

The GUVA-S12SD UV Sensor Module is a compact ultraviolet light detection module designed to measure UV intensity in the UV-A range. It converts ultraviolet radiation into an analog voltage output that can be easily read by microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi (via ADC). This module is ideal for UV index monitoring, environmental sensing, and wearable or portable UV detection projects.

Technical Specifications:

• Sensor Type: GUVA-S12SD UV photodiode

• UV Detection Range: UV-A (approx. 240–370 nm)

• Output Type: Analog voltage

• Operating Voltage: 3.0 V – 5.5 V DC

• Output Interface: SIG (Analog), VCC, GND

• Sensitivity: Proportional to UV intensity

• Response Time: Fast UV response

• Mounting: PCB with mounting holes

• Board Size: Compact, lightweight design

Features:

• Accurate UV-A light detection

• Analog output compatible with ADC inputs

• Works with both 3.3 V and 5 V systems

• Low power consumption

• Compact PCB with mounting holes

• Easy 3-pin interface (SIG, VCC, GND)

• Suitable for portable and embedded projects

• Stable and repeatable output performance

Applications:

• UV index measurement systems

• Wearable UV exposure monitors

• Weather and environmental monitoring

• Sunlight intensity detection

• Outdoor IoT sensing nodes

• Health and safety UV warning devices

• Educational and DIY electronics projects

• Smart agriculture and greenhouse monitoring
