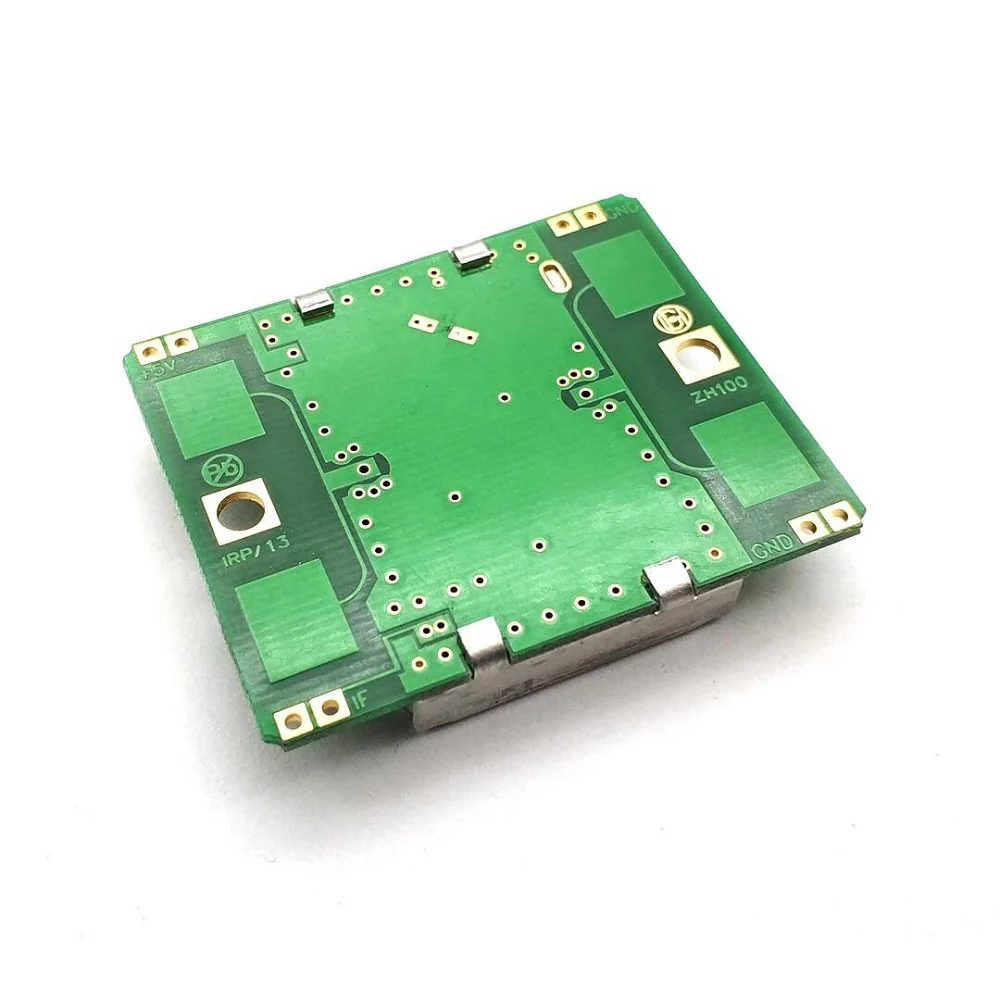

HB100 Microwave Doppler Radar Wireless Motion Sensor
Microwave Doppler Radar Motion Sensor Module HB100 is a X-Band Bi-Static Doppler transceiver module. Its built-in Dielectric Resonator Oscillator (DRO) and a pair of Micro strip patch antenna array, make it ideal for OEM usage in motion detection equipment. This module is ideally suitable for false alarms reduction in intruder detectors when work together with Passive Infrared (PIR) sensor. It can also be used for auto-door opening and vehicle speed measurement.
Technical Specification:
- Supply Voltage: 5V
- X-Band Frequency:10.525GHz
- Setting Time: 3Usec
- Current Consumption: 30-40 mA
- Minimum Power Output: 13dBm EIRP
- Size: 45mm*38mm*8mm (L*W*H)
Features:
- Low current consumption (typical 30 mA)
- CW or pulse operation
- Flat profile
- Long detection range (20 m)
Applications:
- Alarms
- Motion detectors
- Lighting control
- Vehicle speed measurement
- Automatic doors
