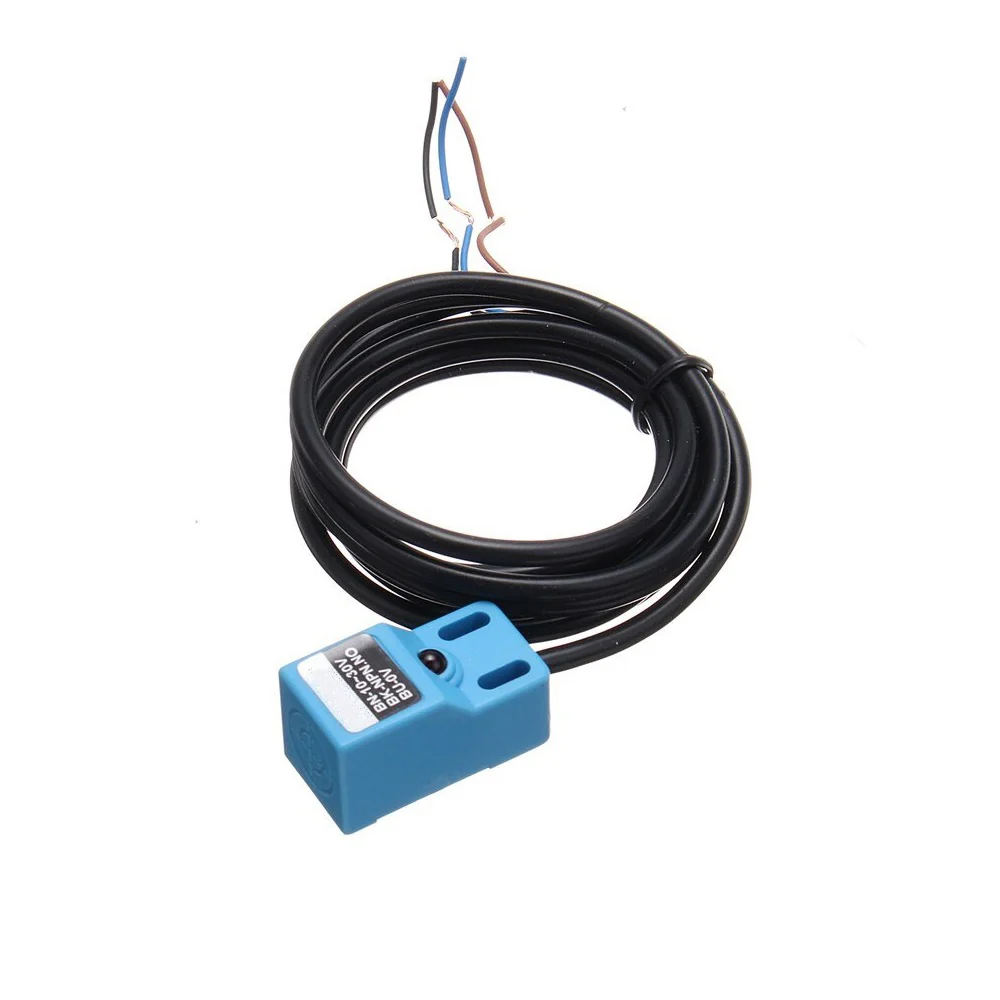

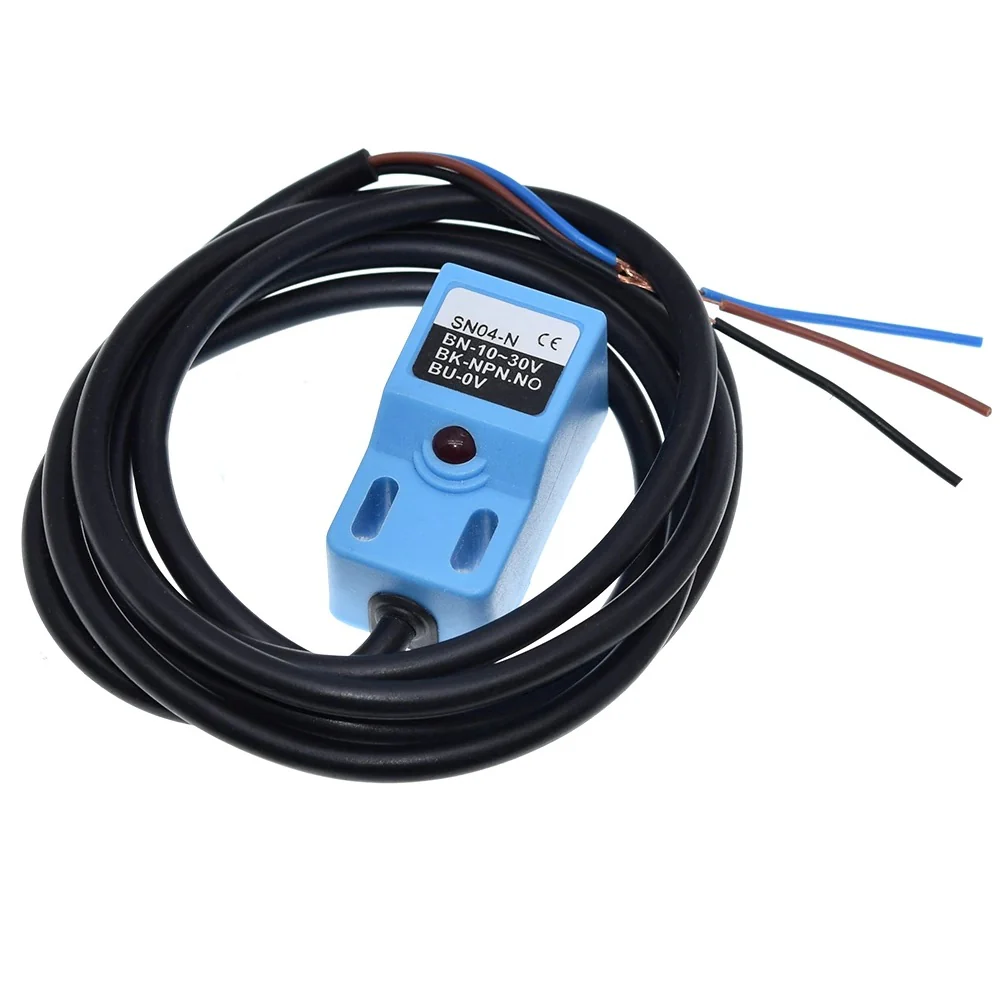

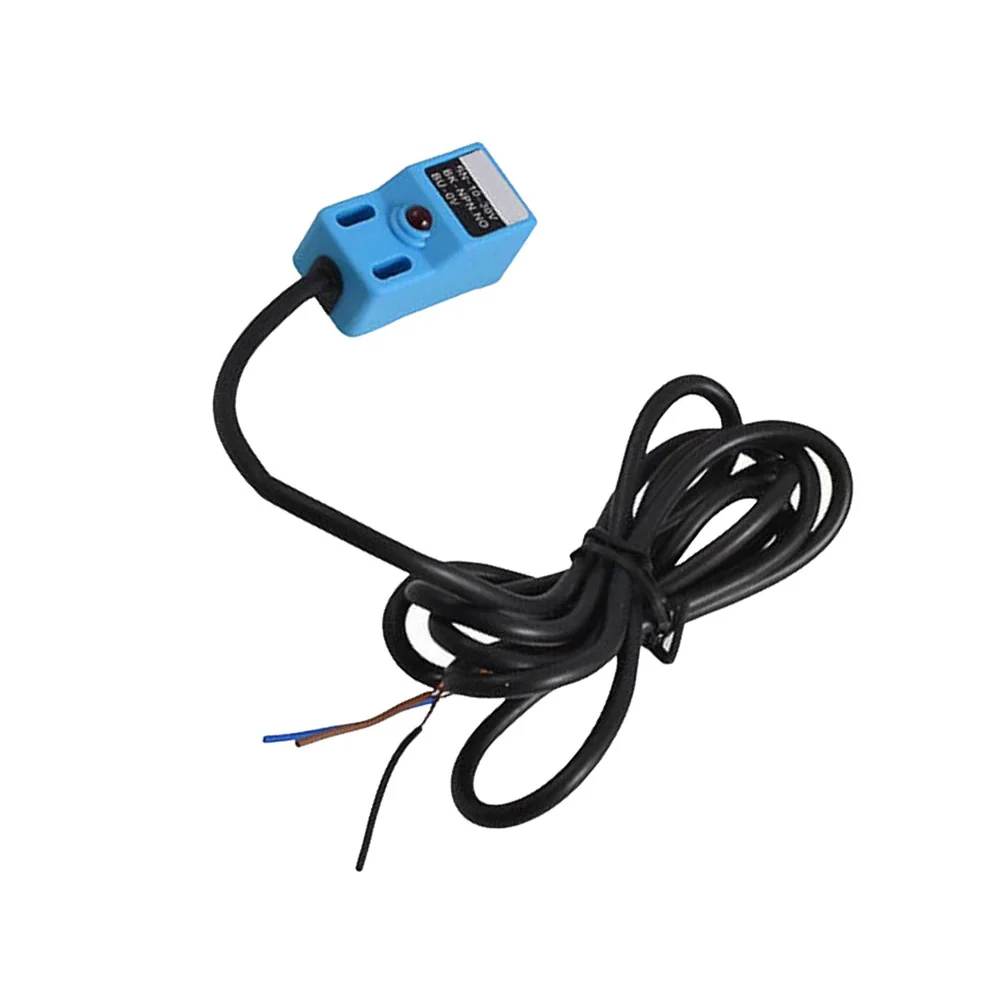

This inductive proximity sensor will detect the presence of a metallic object within 5mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered, and increases in brightness when an object is detected.

Technical Specification:

• Model: SN04-N
• Type: Inductive
• Detection distance: 5 mm
• Output Type: NO(Normally Open)
• Operating Voltage: 10 ~ 30VDC
• Current Consumption (mA): 5
• Cable Length:145cm
• Material: ABS Plastic
• Operating Indicator: Red LED
• Size: 36mm*18mm*18mm (L*W*H)

 Features:

• The state of the proximity sensor checks by Red LED
• It has a high switching frequency
• It has a wide voltage range
• Antivibration, dust, water, and oil prevention
• It can replace small switches and limit switches

Applications:

• Sumo robots
• Agriculture robots
• Smart system appliances
