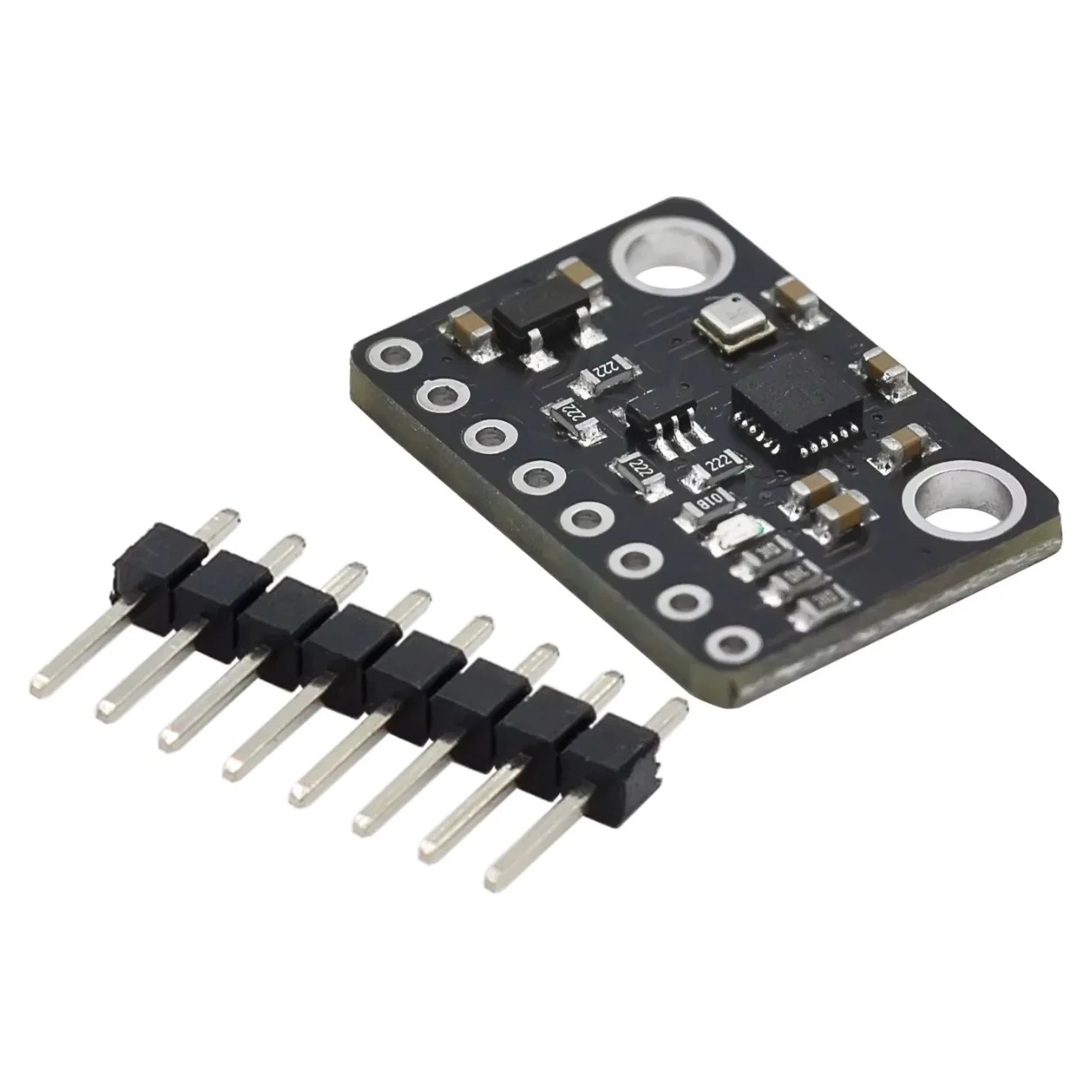

ICM20948 Gyroscope Accelerometer Compass Sensor Module

The ICM20948 9DOF IMU Module is a compact motion-tracking solution that integrates a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer into a single chip. It provides precise motion, orientation, and heading data, making it suitable for advanced sensing applications such as robotics, drones, wearables, and navigation systems. The module supports both I²C and SPI interfaces for flexible integration with microcontrollers.

Technical Specifications:

• Sensor IC: ICM-20948

• Degrees of Freedom: 9 (Accelerometer + Gyroscope + Magnetometer)

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g

• Gyroscope Range: ±250, ±500, ±1000, ±2000 dps

• Magnetometer: 3-axis (AK09916 integrated)

• Interface: I²C and SPI

• Operating Voltage: 1.8V–3.6V (onboard regulation on most modules)

• Output Data Rate: Programmable

• Package: Compact PCB module with mounting holes

Features:

• High-precision 9-axis motion sensing

• Integrated digital motion processor (DMP) support

• Low power consumption suitable for battery-powered devices

• Supports both I²C and SPI communication

• Compact form factor for space-constrained designs

• Factory calibrated sensors for improved accuracy

Applications:

• Robotics and autonomous systems

• Drones and flight controllers

• Motion tracking and gesture recognition

• Wearables and fitness devices

• Navigation and orientation systems

• VR/AR and gaming controller
