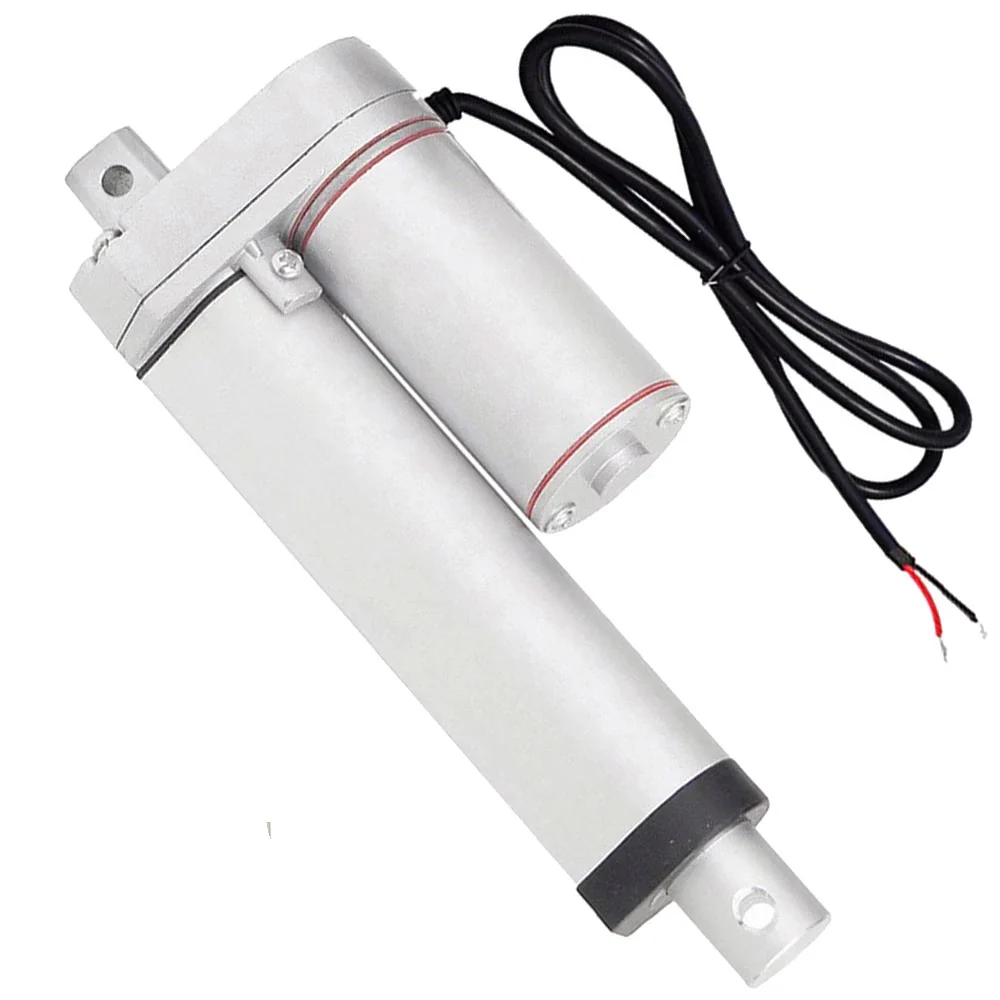

Linear Actuator Stroke Length 100MM
This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control, or automatic control. The electric push rod is composed of drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc.
Technical Specification:
- Stroke Length: 100mm (apprx. 4inches)
- Permanent magnet DC motor drive: Voltage 12VDC
- Operating temperature: -20ºC to +63ºC
- Mounting hole diameter (both ends): 1/4” (6.4mm)
- Protection Level: IP55
- Maximum static load: 2 lbs. ( 1500 Newtons )
- Maximum current draw: ≤2A
- Self Locking Force: 1500N
- Motor Diameter: 36 mm
- Speed at no load: 28in/sec (7 mm /sec)
- Speed at full load: 22in/sec (5.5 mm /sec)
- Noise level: 45 dB
- Size: 210mm*74mm*36mm (L*W*H)
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
Applications:
- Industrial
- Agricultural machinery
- Construction
- Clean sweeping vehicles
- Vessels
- Cargo
