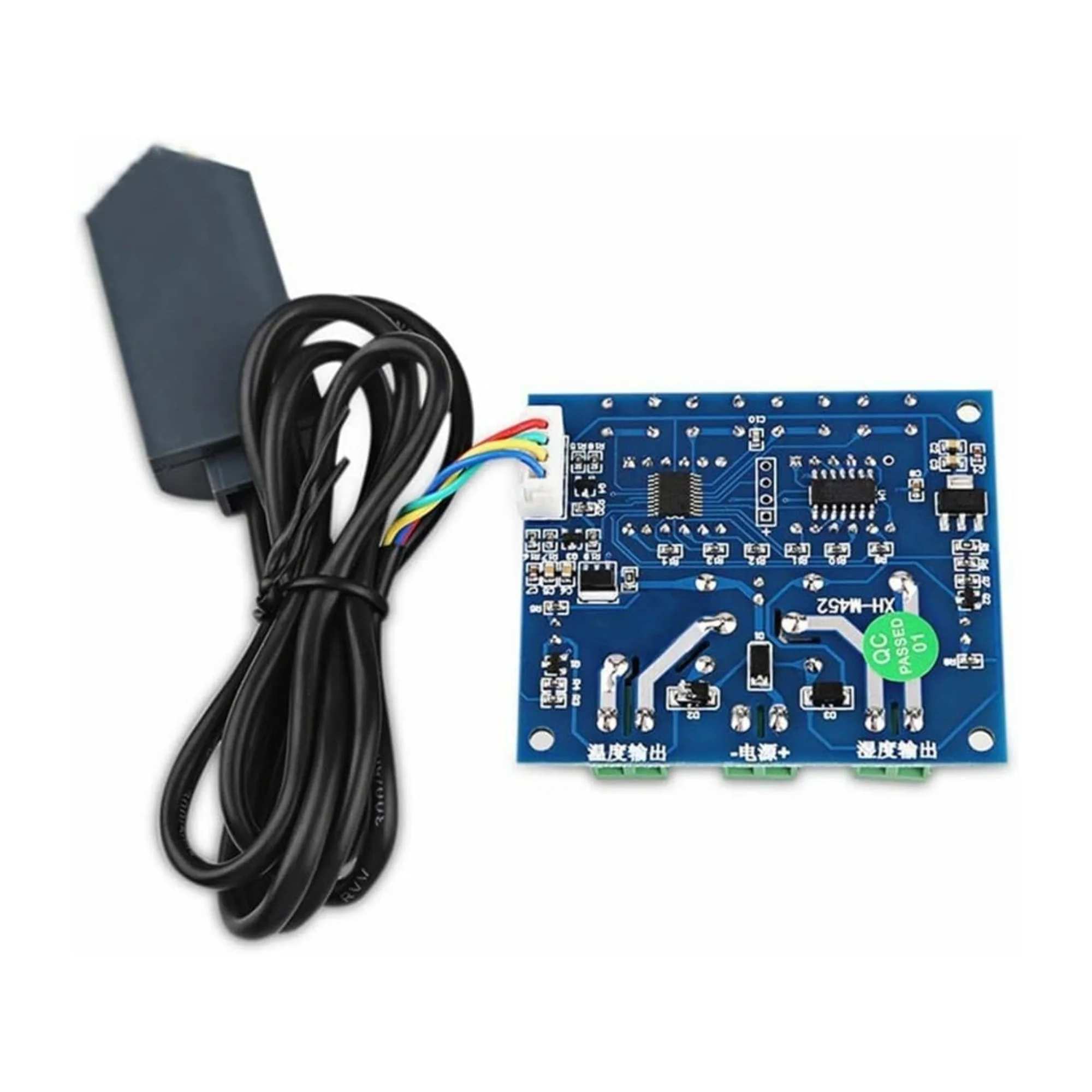

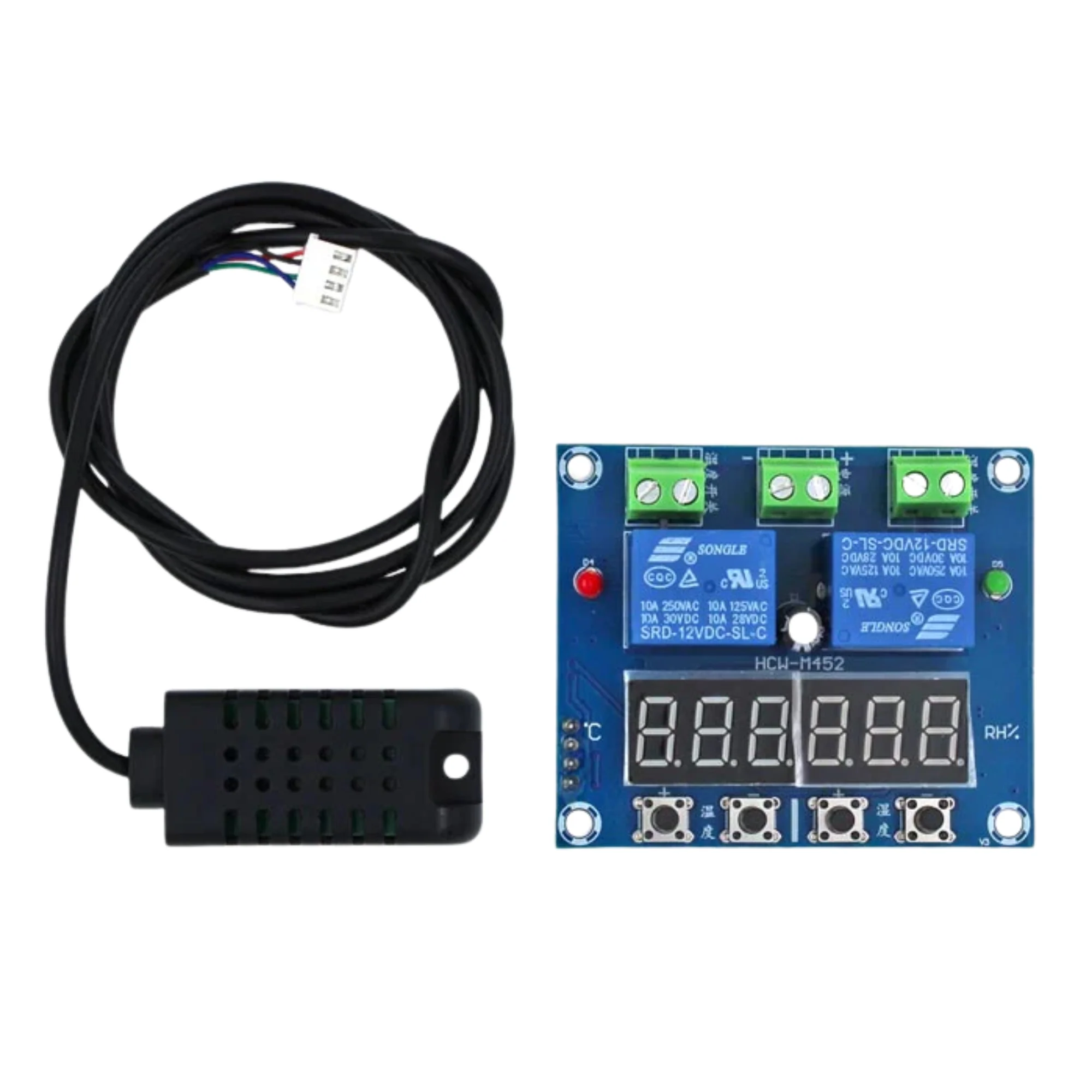

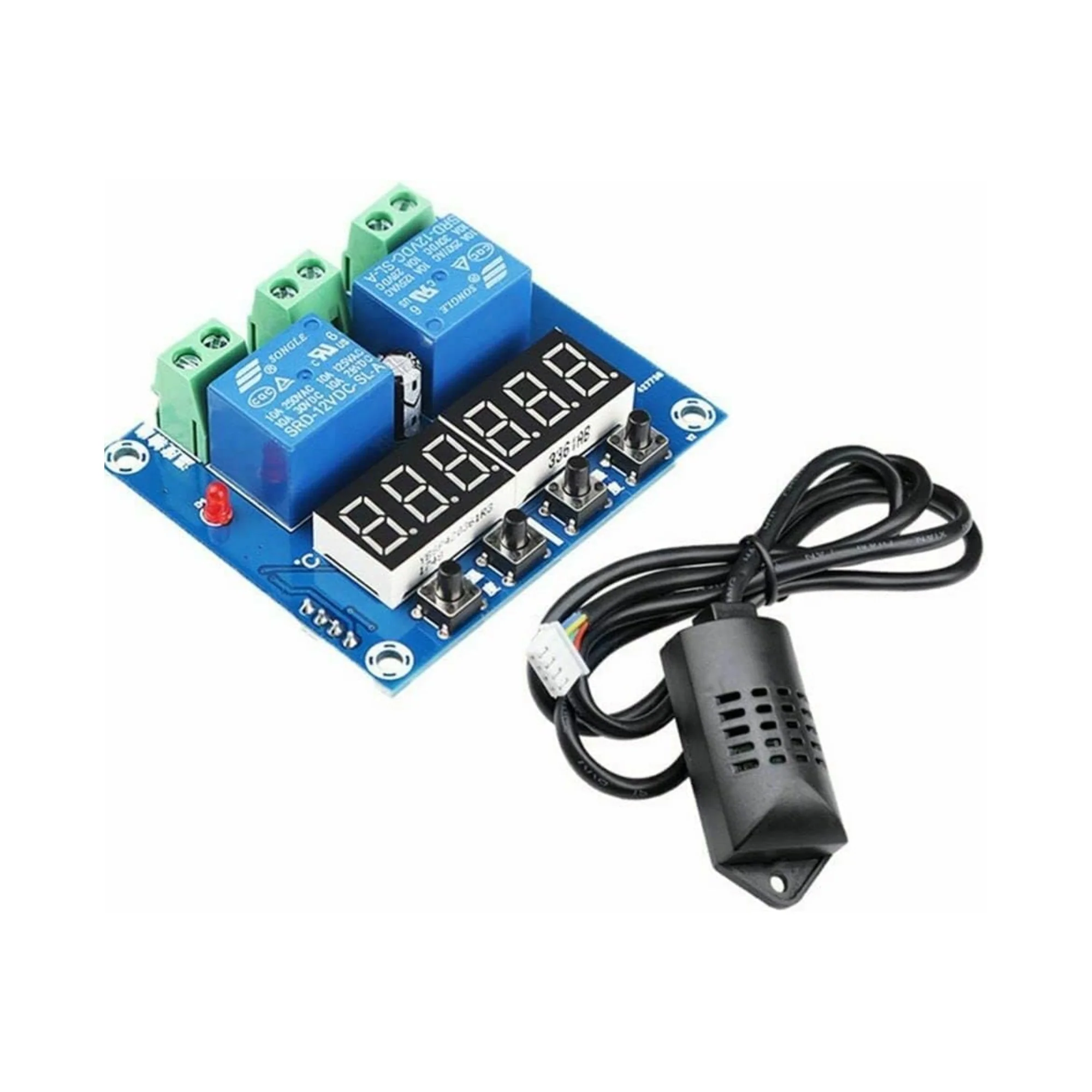

XH-M452 Temperature and Humidity Controller Module

The M452 Temperature & Humidity Controller is a digital control module designed to monitor and regulate both temperature and humidity simultaneously. It features a dual relay output, bright LED display, and an external temperature-humidity sensor, making it suitable for automation, environmental control, and climate-based switching applications.

Technical Specifications:

• Operating voltage: 12V DC

• Display type: Dual digital LED display

• Temperature measurement range: -20°C to +80°C

• Humidity measurement range: 0% to 99% RH

• Temperature control accuracy: ±1°C

• Humidity control accuracy: ±5% RH

• Relay output: 2 × independent relay channels

• Relay rating: 10A @ 250V AC / 30V DC

• Sensor type: External temperature & humidity sensor (probe type)

• Control mode: Heating / Cooling and Humidification / Dehumidification

• Mounting type: PCB mount with screw terminals

Features:

• Simultaneous temperature and humidity control

• Dual relay outputs for independent load control

• Bright LED display for real-time readings

• Adjustable upper and lower threshold settings

• Supports heating, cooling, humidifying, and dehumidifying modes

• External sensor for accurate environmental monitoring

• Simple push-button configuration

• Stable performance with reliable relay switching

Applications:

• Greenhouse climate control

• Incubators and hatchery systems

• Cold storage and refrigeration units

• Humidity-controlled cabinets

• Home automation and smart farming

• Industrial environment monitoring

• HVAC and ventilation control systems
