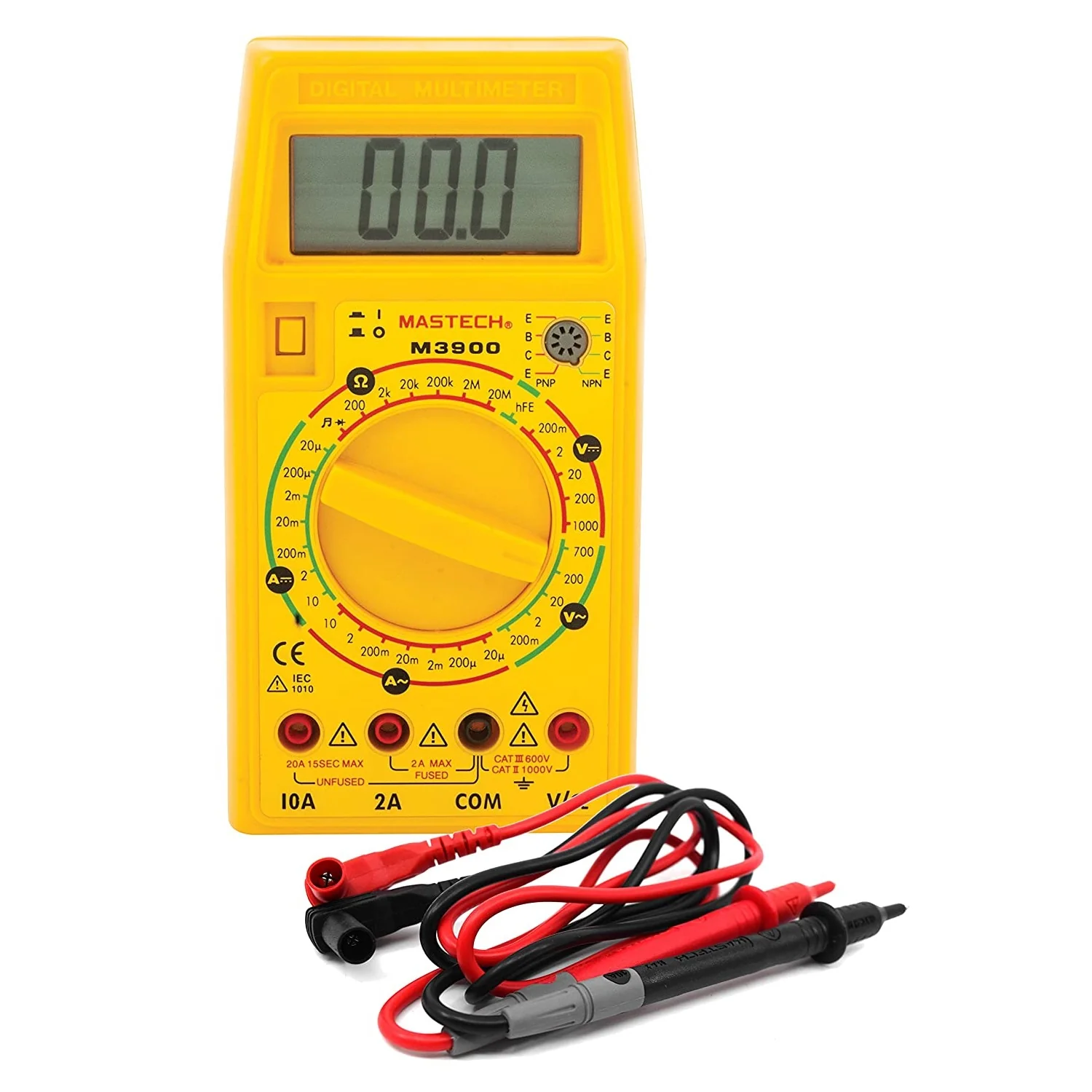

The M3900 Digital Multimeters are designed for DC and AC voltage measurement, DC and AC current measurement, Resistance measurement, Diode measurement, Audible continuity test, Transistor hFE measurement.

Technical Specification:

• Model No : M3900
• Type of Product : Digital Multimeter
• DC Voltage Range : 20mV-1000V
• Counts : 1999
• AC Current Accuracy : ±0% - ±3.0%
• AC Current Range : 20uA -10A
• Resistance Range : 200Ω - 20MΩ
• Resistance Accuracy : ±8% - ±1.0%
• DC Current Range : 20 uA -10 A
• AC Voltage Range : 200mV to 700V
• DC Voltage Accuracy : ±5% - ±0.8%
• DC Current Accuracy : ±0% - ±2.0%
• Weight : 370 g
• Power Input : 9V NEDA 1604 or 6F22
• Dimensions : 88x172x36 mm

Features:

• Compact, Rugged
• Battery operated
• CMOS technology used for auto-zeroing
• With polarity selection and overrange indicator
• With low battery indicator
• With full overload protection
• With low battery indication and over-range indication

Pin Description:

Applications:

• Industrial Area
• Electrical Area
• Home Workshop
• DIY Projects

Package Includes:

• Test Leads
• Battery
• Operating Manual
