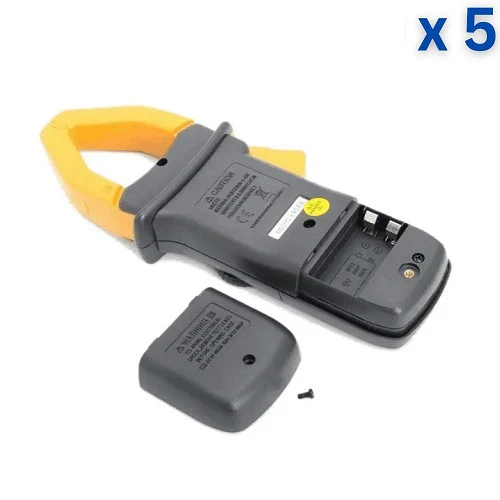

The MS2001C AC Digital Clamp Meters are designed for measure DC and AC voltage, DC current, resistance, continuity, and test diodes.

Technical Specification:

• Brand : Mastech
• Type : Digital AC Clamp Meter
• Model : MS2001c
• Display : LCD Display
• Display Counts : 2000
• Jaw Opening Size : 42 mm
• Voltage Range (DC) : 0-1000 V
• Voltage Accuracy (DC) : ±(2.0 % + 2 Digits)
• Current Range (AC) : 0-1000 A
• Current Accuracy (AC) : ±(2.0 % + 7 Digits)
• Voltage Range (AC) : 0-750 V
• Voltage Accuracy (AC) : ±(1.0 % + 5 Digits)
• Resistance Accuracy : ±(1.0 % + 3 Digits)
• Temperature Range : -40° to 750°C
• Temperature Accuracy : ±(1.0 % + 5 Digits)
• Power : 9 V 6F22 Battery
• Operating Environment : 0° to 40°C
• Storage Environment : -10° to 50°C
• Maximum Voltage Range (DC) : 601-1000 V
• AC Current Range : 601-1000 A
• Maximum Voltage Range (AC) : 601-750 V
• Resistance Range (Ohm) : 0-2000 ?
• Weight : 194 g
• Dimensions : 198x79x38 mm

Features:

• Continuity Buzzer <50 ?
• Data Hold Functions
• Backlight Display
• True Root Mean Square Measurement
• Maximum Measurement
• Data Hold
• Overrange indication

Pin Description:

Applications:

• Industrial Area
• Electrical Area
• Home Workshop
• DIY Projects

Package Includes:

• K type Thermocouple (MS2001C)
• AAA Batteries
• Test Leads
• User Manual
