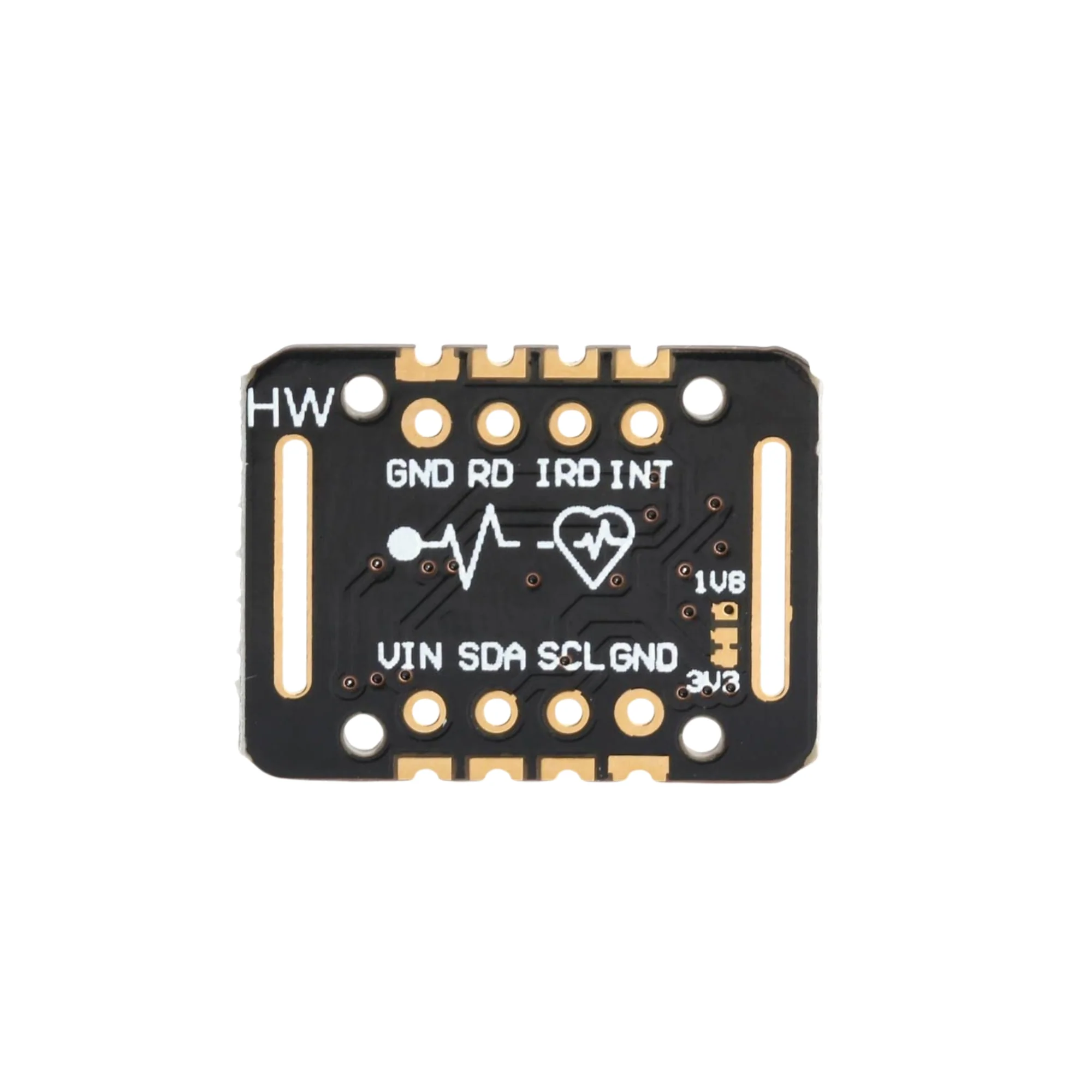

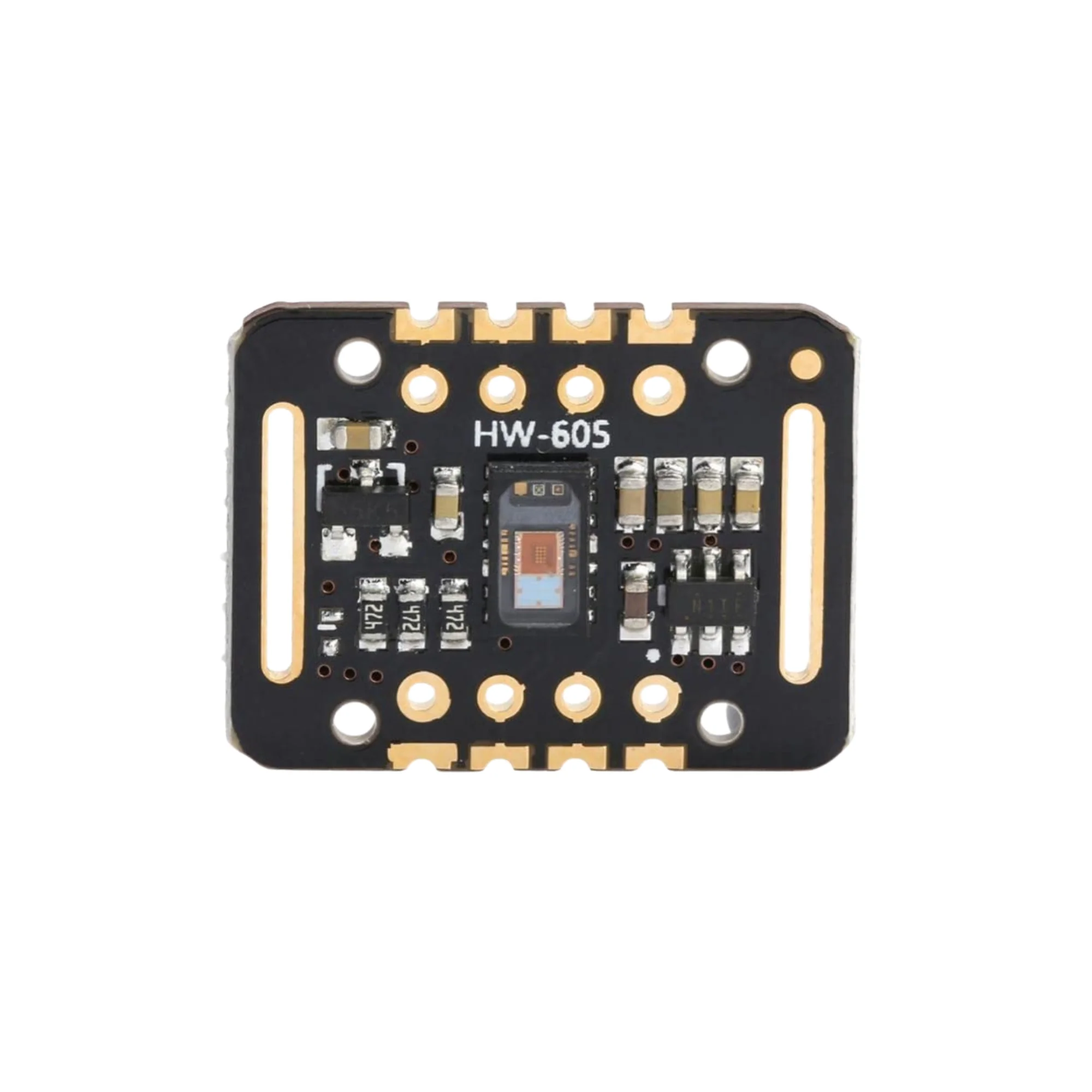

MAX30102 Heart Rate and Pulse Oximeter Sensor Module (Black)

The MAX30102 Heart Rate and SpO₂ Sensor Module is an integrated optical sensor designed to measure heart rate and blood oxygen saturation levels. It combines red and infrared LEDs with a high-sensitivity photodetector and low-noise signal processing, making it suitable for wearable and health-monitoring applications.

Technical Specifications:

• Sensor IC: MAX30102

• Measurement Type: Heart Rate (PPG) and Blood Oxygen Saturation (SpO₂)

• Light Sources: Red LED (660 nm), IR LED (880 nm)

• Communication Interface: I2C

• Operating Voltage: 1.8V (core), 3.3V (I/O)

• I2C Address: 0x57

• Sampling Rate: Programmable up to 3200 samples per second

• Resolution: 18-bit ADC

• Current Consumption: Ultra-low power operation

• Module Color: Black PCB

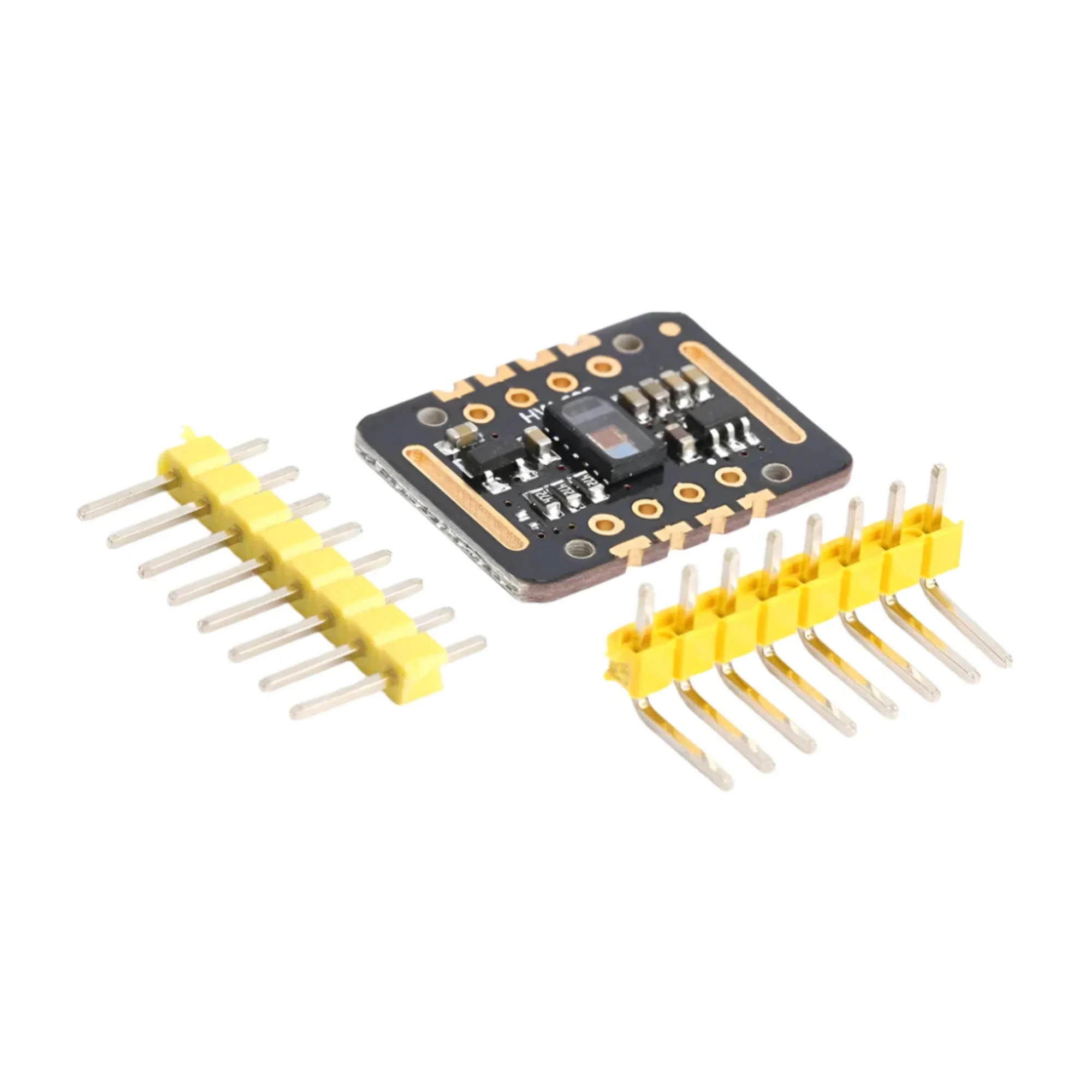

• Mounting: Through-hole pin headers included

Features:

• Integrated heart rate and SpO₂ measurement

• High sensitivity optical sensing

• Low power consumption suitable for wearable devices

• Built-in ambient light cancellation

• Compact and lightweight module design

• Easy I2C interfacing with microcontrollers

• Stable performance with low noise

Applications:

• Wearable health monitoring devices

• Pulse oximeters

• Fitness trackers

• Medical and biomedical projects

• Arduino, ESP32, Raspberry Pi health projects

• Research and prototyping applications
