MT76813DBI W/L Gain Antenna
MT76813DBI W/L Gain Antenna

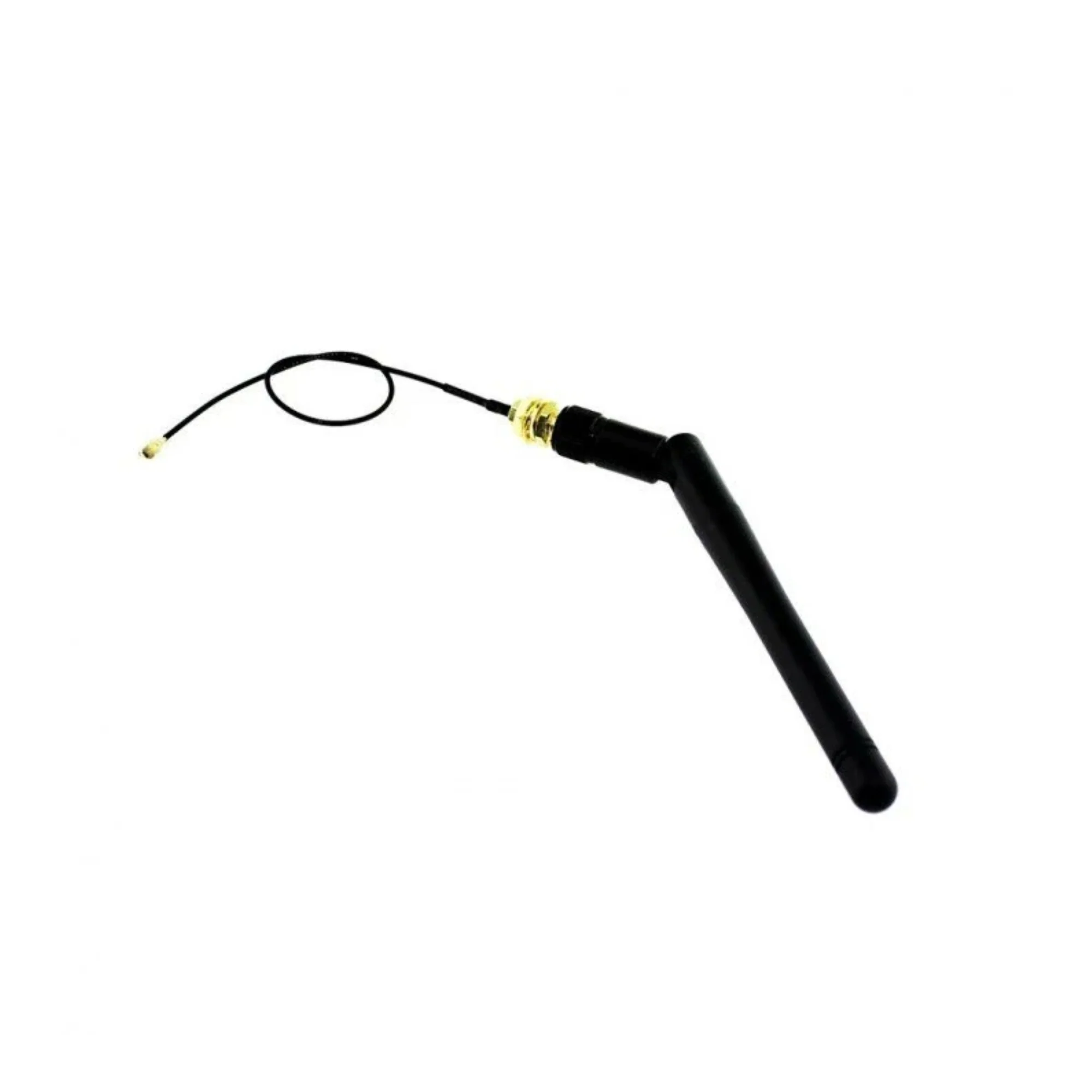

This is a 2.4 GHz Wi-Fi antenna designed for MT7681/MT76xx-based Wi-Fi modules and similar IoT boards. It’s a compact rubber-duck omnidirectional antenna with a 3 dBi gain, suitable for improving wireless range and signal stability in embedded projects.
Technical Specifications:
- Frequency band: 2.4 GHz ISM (2400–2483 MHz)
- Gain: 3 dBi
- Radiation pattern: Omnidirectional
- Polarization: Linear
- VSWR: ≤ 2.0 (typical)
- Impedance: 50 Ω
- Power handling: ≤ 10 W (typical for this class)
Connectors & Cable
- Antenna connector: RP-SMA male (right-angle)
- Pigtail: u.FL / IPEX to RP-SMA female bulkhead
- Cable type: Thin RF coax (low-loss for short runs)
Features:
- Improves Wi-Fi range compared to PCB or chip antennas
- Compact and durable rubber housing
- Right-angle joint allows flexible positioning
- Easy panel mounting via SMA bulkhead
- Plug-and-play with MT7681, ESP8266/ESP32 (via u.FL), routers, and Wi-Fi modules
Applications:
- IoT devices and smart sensors
- Wi-Fi-enabled microcontroller projects
- Embedded Linux / MT7681 boards
- Wireless data logging systems
- DIY routers, access points, and gateways
