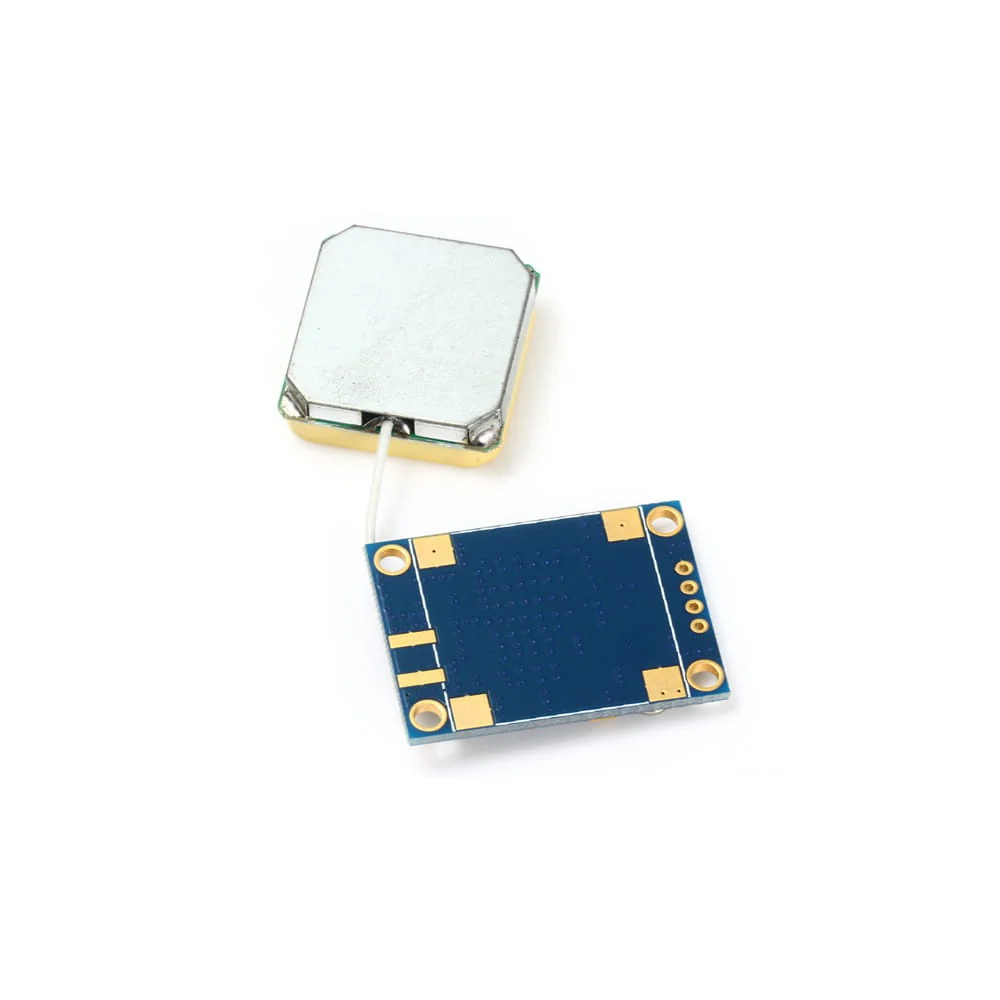

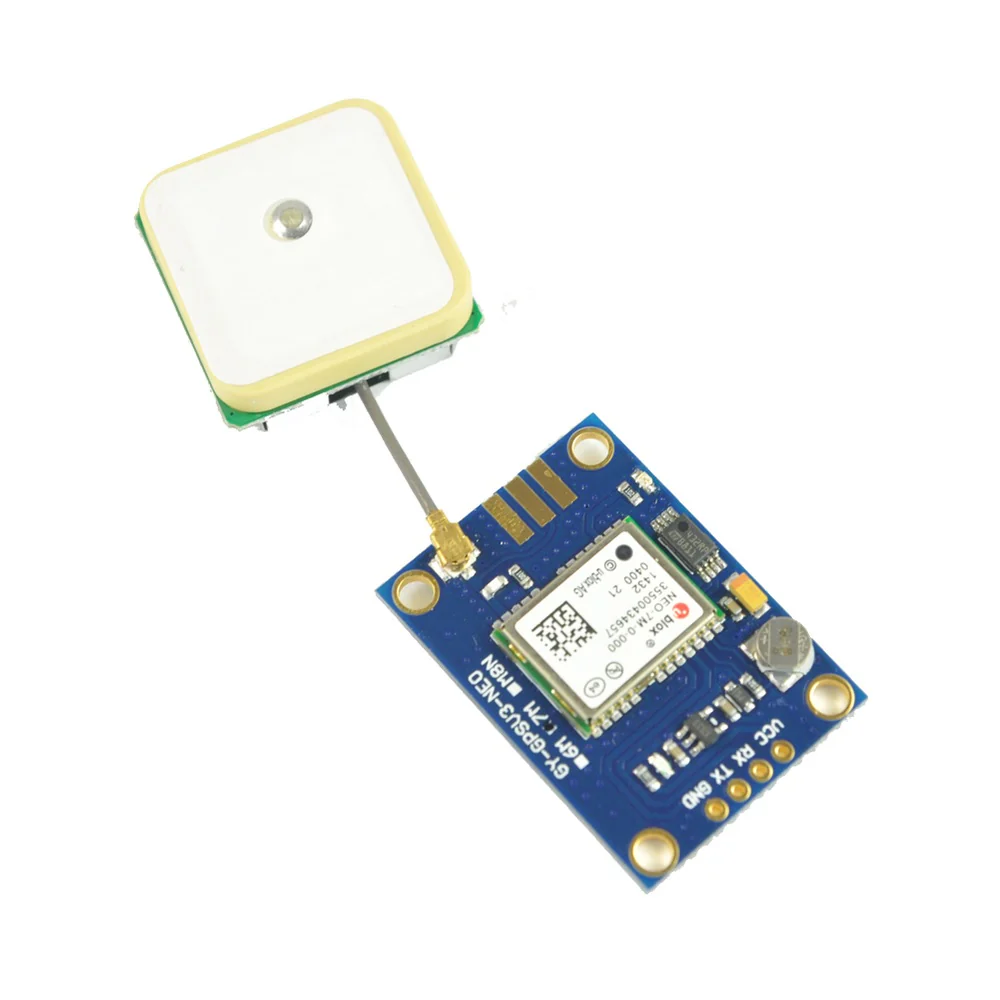

Our UART GPS Module With Real-Time Clock features the NEO-7M-C chip onboard, a high-gain active antenna, an IPX interface for connecting different active, external antennas, and a chargeable backup battery, which keeps the ephemeris data when power down and supports hot starts. However, the relatively low transmission rate of 9600 baud in combination with a considerable amount data, may cause performance restrictions for some embedded solutions, and that requires re-programming and thus adjusting the module.

 Technical Specification:

• Operating voltage: 2.7V-5.0V (VCC input)
• Supply Voltage: 3V-5V
• Operating current: 35mA
• Antenna Size: 25*25mm/0.98*0.98"
• Module Size: 25*35mm/0.98*1.37"
• Installation Diameter: 3mm

 Features:

• U-BLOX NEO-7M module, compact and excellent performance
• Parameters can be set via serial port and saved in EEPROM
• With SMA interface, you can connect a variety of antenna, strong adaptability
• Compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems
• Back-up rechargeable battery on board
• With micro USB, no need for USB-TTL tools
• With TTL interface
• Onboard ceramic antenna

Applications:

• Personal location tracking
• PDA, Pocket PC and other Portable Devices
• Pets Tracking
• Cars, Trucks, Buses Positioning
• Surveying and mapping applications
