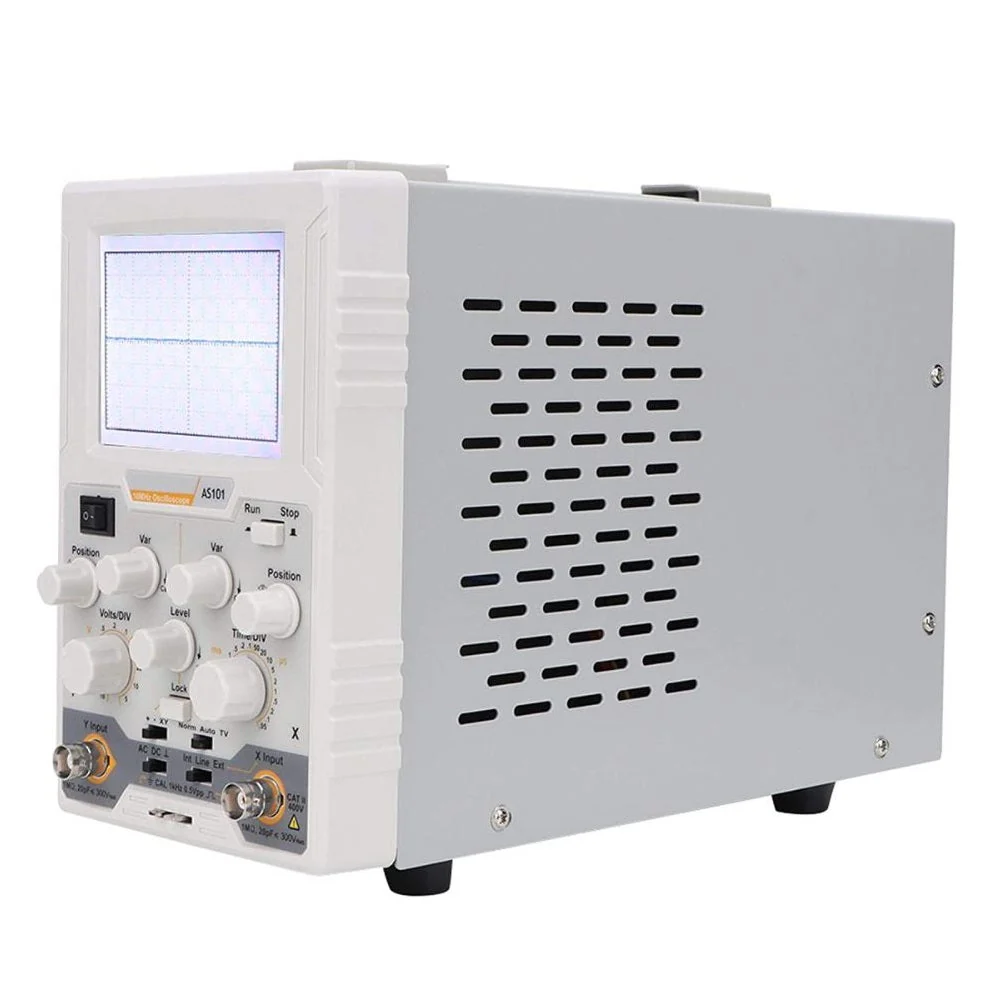

OWON AS101/MTQ1016B Single Channel Oscilloscope : Bandwidth: 10 MHz, 1-Channel, Sample rate: 100MS/s

The OWON AS101/MTQ1016B is a compact and reliable analogue oscilloscope designed for basic waveform analysis and troubleshooting in electronic circuits. With a bandwidth of 10 MHz and a single channel, it is ideal for educational purposes, hobbyists, and simple testing tasks.

The OWON AS101/MTQ1016B is an excellent choice for users needing a straightforward, effective tool for basic electronic measurements. Its blend of functionality and simplicity makes it accessible for beginners while still being useful for experienced technicians.

Technical Specifications:

• Type: Analogue Oscilloscope
• Channels: 1
• Bandwidth: 10 MHz
• Input Sensitivity: 5 mV/div to 5 V/div
• Time Base Range: 0.1 ms/div to 0.5 s/div
• Vertical Resolution: Typically 8 bits (depends on the specific model)
• Maximum Input Voltage: 400 V (DC + AC peak)
• Input Impedance: 1 MΩ
• Trigger Modes: Edge triggering
• Display Type: CRT (Cathode Ray Tube)
• Power Supply: AC 100V - 240V, 50/60 Hz
• Dimensions: Approx. 320 mm x 150 mm x 350 mm
• Weight: Approximately 3 kg

Features:

• Simple Operation: User-friendly interface for quick setup and measurement
• Portable Design: Lightweight and compact, suitable for fieldwork
• Analog Display: Provides real-time waveform visualization
• Adjustable Trigger Level: For stable waveform display
• Calibration Functionality: Ensures accurate measurements over time
• Built-in Probe Compensation: For optimal signal integrity

Applications:

• Educational Use: Ideal for teaching basic electronics and oscilloscope operation
• Basic Circuit Testing: Suitable for troubleshooting and testing simple electronic circuits
• Hobbyist Projects: Useful for DIY electronics enthusiasts working on various projects
• Signal Monitoring: Can be used in various applications requiring signal observation

Package Includes:

• OWON AS101/MTQ1016B Analogue Oscilloscope
• Power Cable
• User Manual
