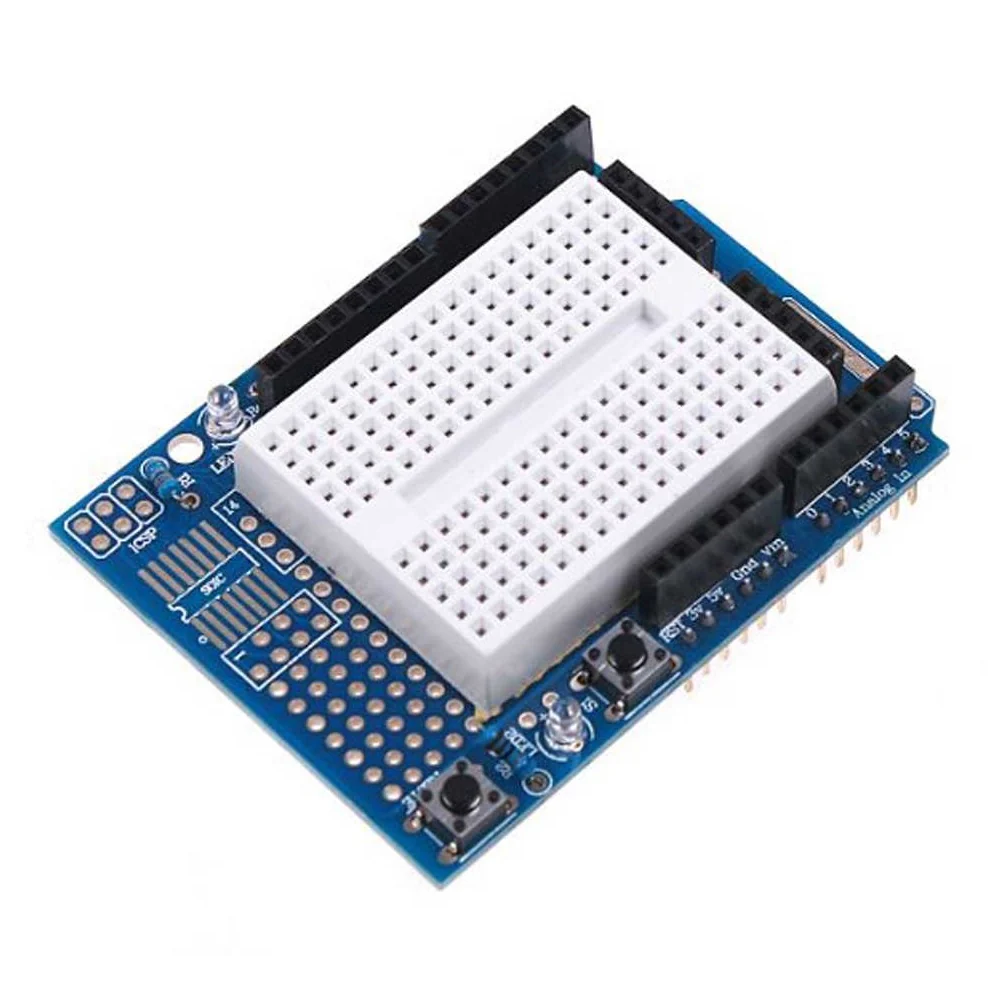

This shield is designed for Arduino Uno and similar variation boards is a prototype expansion board used to build prototype circuits. The components can either be directly soldered on the board or can connect the circuit above the mini breadboard. An adhesive double sided tape on the breadboard is used to mount it over the circuit board which are separate when sold.

The UNO Proto Shield prototype expansion board with SYB-170 mini breadboard makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard to quickly test circuit ideas without having to solder. It's got extra connections for all of the Arduino I/O pins, and space to mount through-hole and surface mount integrated circuits. A convenient way to make your custom circuit and Arduino into a single module. This shield has two built-in buttons and two LED that can be used directly.

Technical Specification:

• Color: blue + black + white
• Prototype size: About 69mm*53mm*18mm (L*W*H)
• Mini breadboard size: 47mm*35mm*9mm (L*W*H)

Features:

• The shield can support being fully assembled with Arduino UNO
• Support soldering components directly on this shield

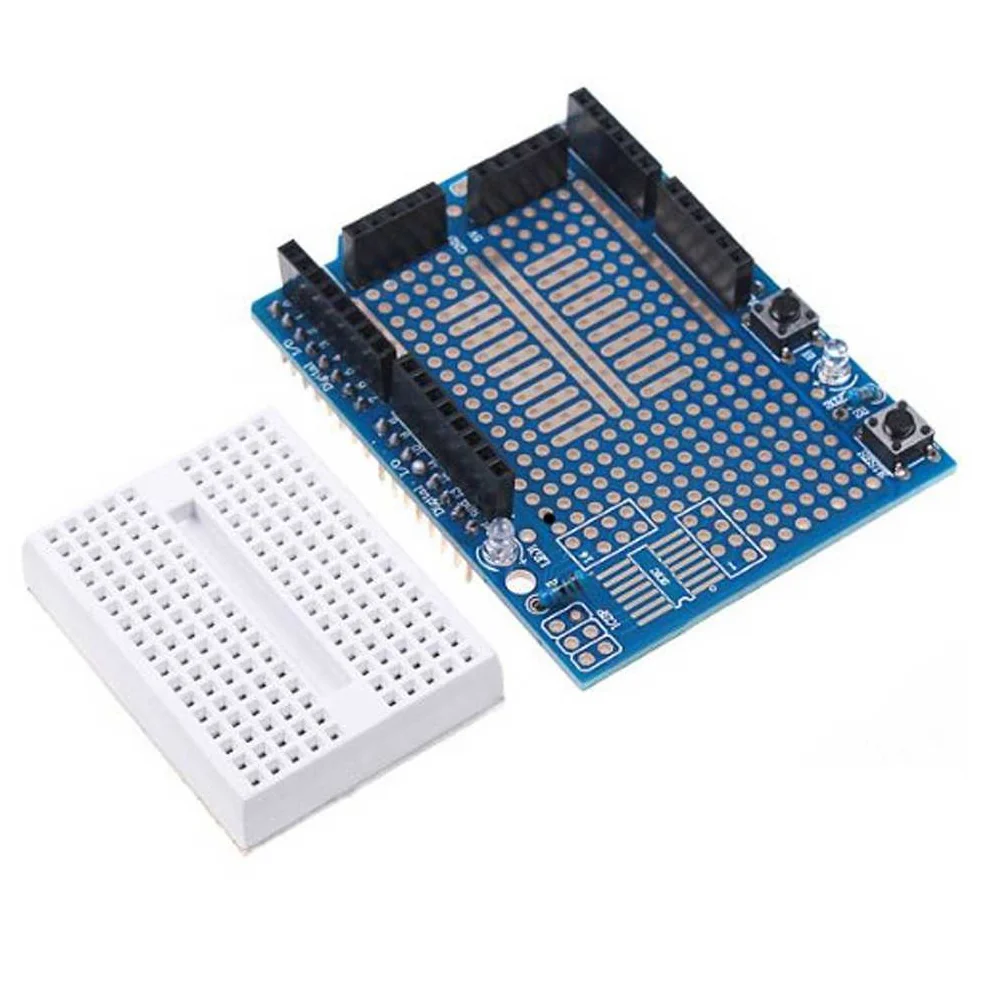

• Support sticking the mini breadboards on this shield
• Reset button on top
• Mainboard aureate quadrate
• With SOP28 SMT components encapsulation
• With PWR & STAT indicator
• Arduino protoshield prototype with 170 mini breadboard
• 1 reset button, 1 general use button, and 2 LED circuits can be used directly

Applications:

• Useful when you need to make your own stuff to stick on an Arduino-sized outline
