RF Nano Integrated NRF24L01 Wireless Module with Soldering
RF Nano Integrated NRF24L01 Wireless Module with Soldering

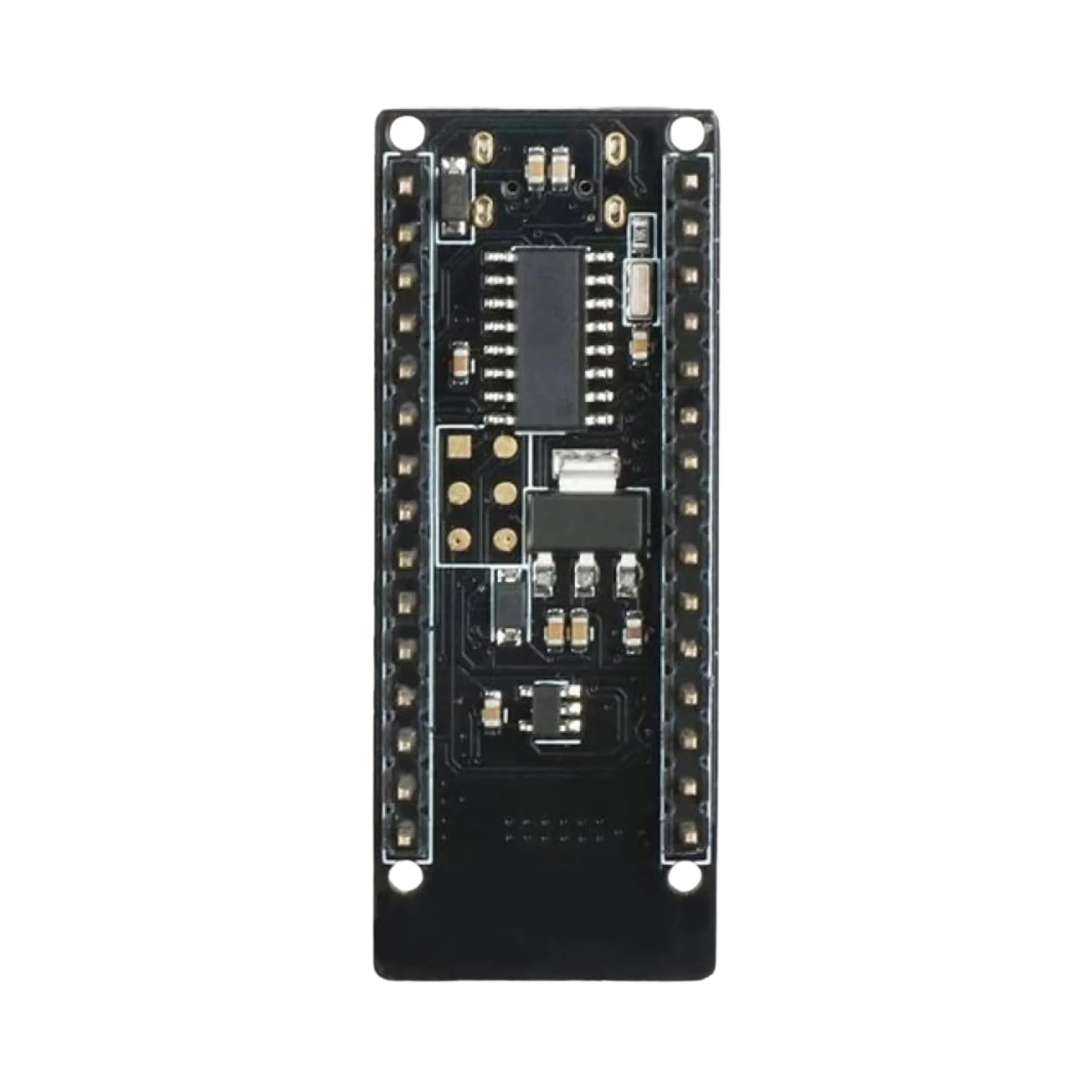

The RF Nano is a compact Arduino-Nano–compatible development board with an integrated NRF24L01+ 2.4 GHz wireless transceiver. It combines the ATmega328P microcontroller and wireless communication module on a single PCB, eliminating the need for external RF modules and complex wiring. Designed for low-power wireless projects, the RF Nano is ideal for IoT, sensor networks, and remote control applications.
Technical Specifications:
- Microcontroller: ATmega328P
- Operating Voltage: 5 V (logic), 3.3 V RF section
- Clock Speed: 16 MHz
- Wireless Chip: NRF24L01+
- Wireless Frequency: 2.4 GHz ISM band
- Communication Interface: SPI (internal to RF module)
- Flash Memory: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- I/O Pins: Same pinout as Arduino Nano
- Programming Interface: Micro-USB
- Operating Range: Up to ~100 m (line of sight, typical)
Features:
- Integrated NRF24L01+ wireless module
- Arduino Nano–compatible form factor and pinout
- Reduced wiring and compact design
- Low power consumption suitable for battery-powered devices
- Stable RF performance with onboard antenna
- Easy programming via Arduino IDE
Applications:
- Wireless sensor networks
- IoT and smart home projects
- Remote monitoring and control systems
- Wireless robotics communication
- DIY Arduino wireless projects
