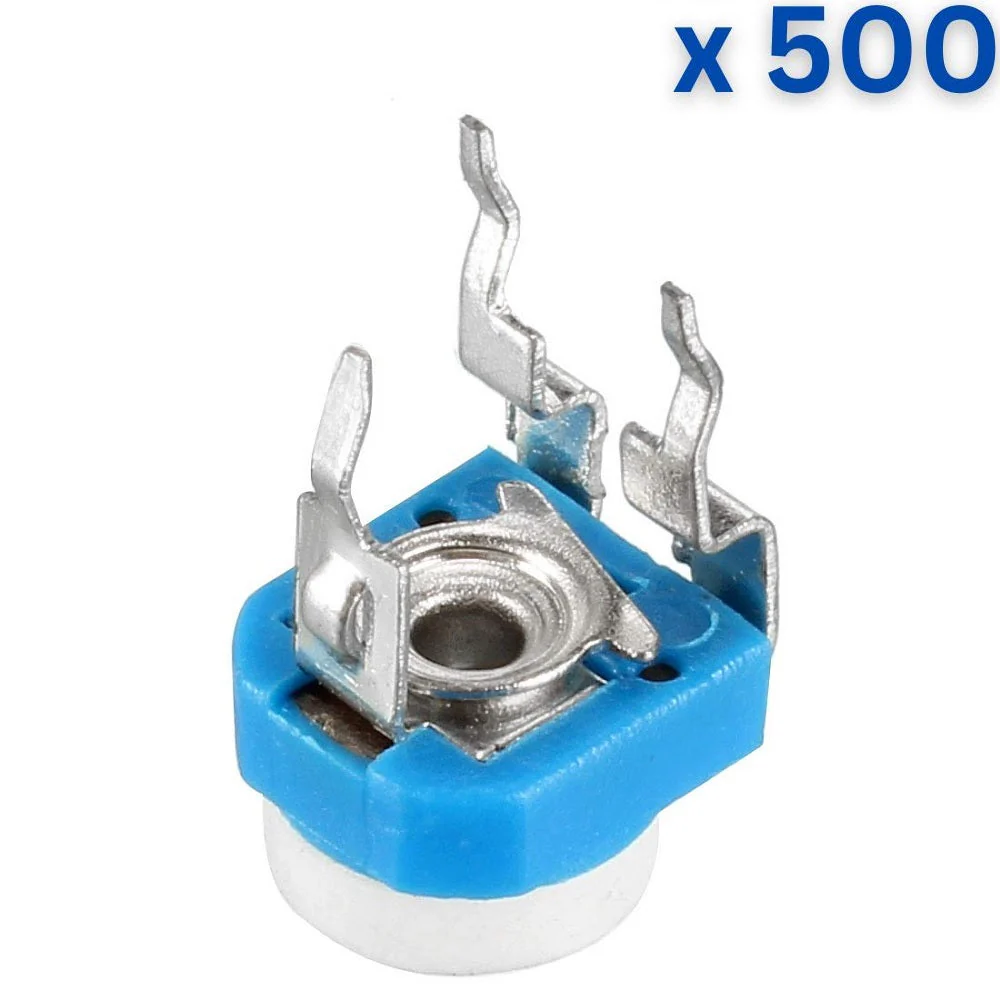

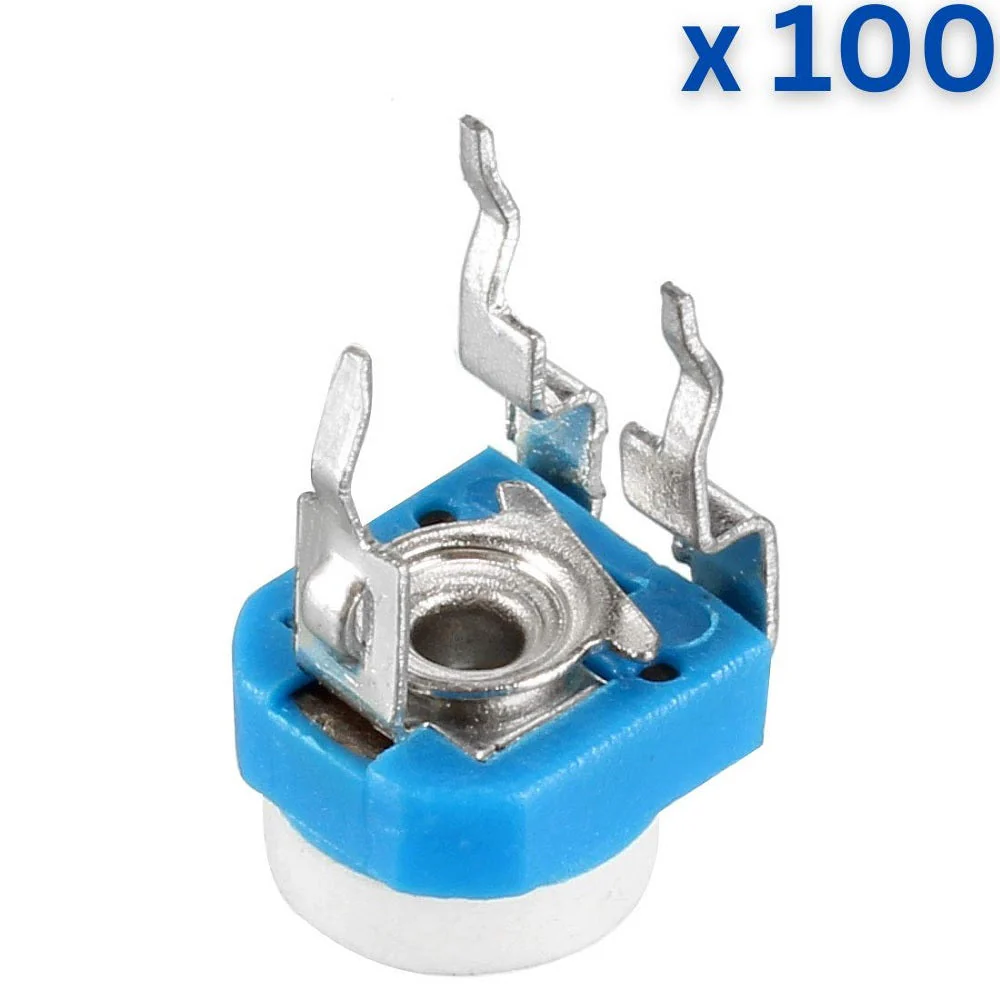

RM065 500K Ohm Trimpot Trimmer Potentiometer
A trimmer potentiometer, also known as a trim pot, is a type of variable resistor or adjustable potentiometer that can adjust, tune, and calibrate circuits. These trimmer resistors are often used to initially calibrate equipment after manufacturing. This is 500KΩ variable resistor (RM065 Package), which can be used to set sensitivity and calibrate the circuits.
Technical Specification:
- Resistance : 500 KΩ
- Tolerance : 30%
- Operating Temperature Range : -10°C to 70°C
- Mounting Type : Through Hole
- Size : 7mmx6.5mmx5mm (LxWxH)
- Weight : 0.1gm (approx)
Features:
- 6mm / Single-Turn / Carbon Film
- Henolic Base / Resin Mold
- Open Frame / PC Board Stand-offs
- Enclosed Cover
Pin Description:
Applications:
- Comparator circuits
- Voltage control
- LED intensity
- Home appliances
- Television, video, Mp3, Mp4, VCD, DVD, telephone
- Office automation equipment,
- Information communication equipment
