SGP40 VOC Sensor Breakout for Indoor Air Quality 2.54mm Pitch

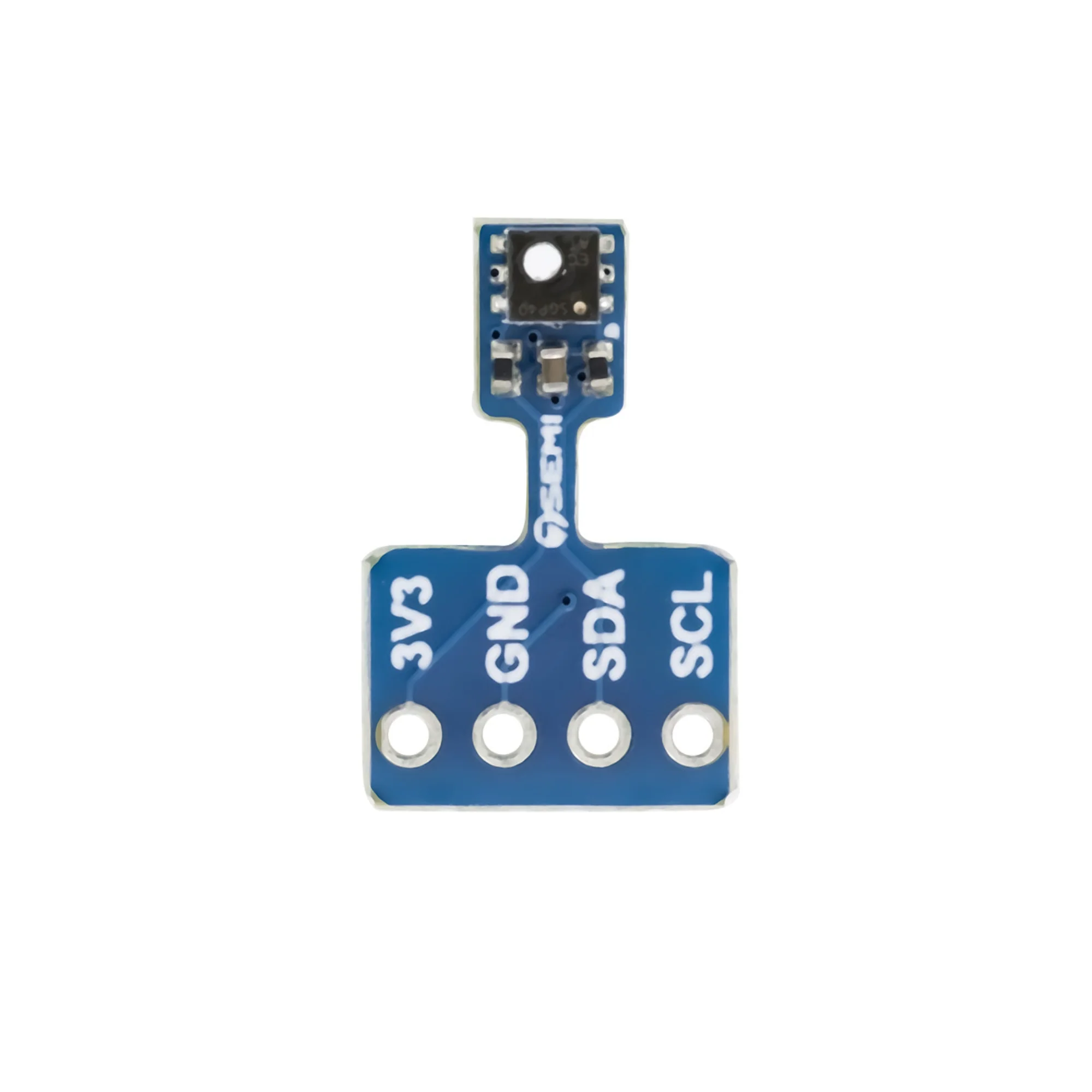

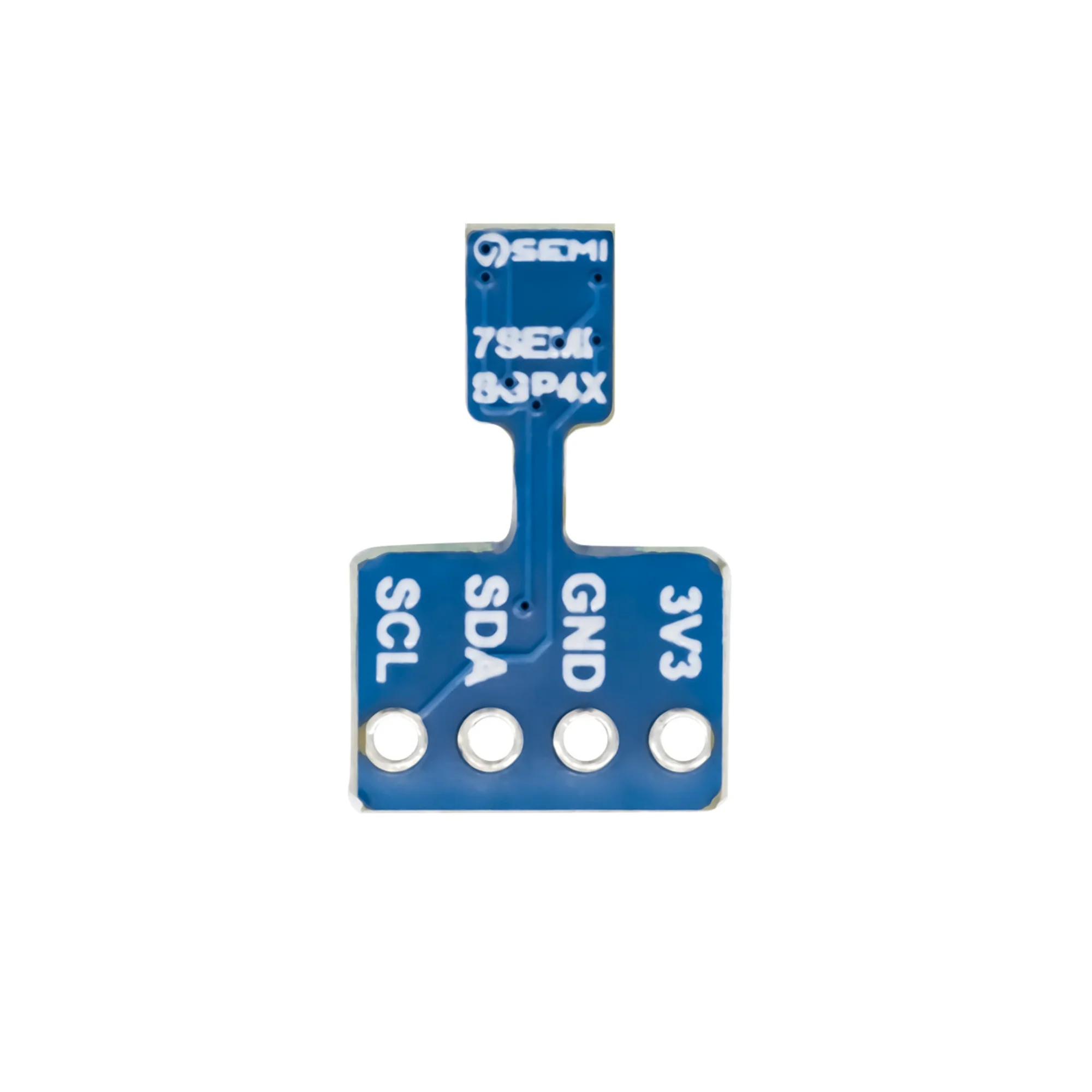

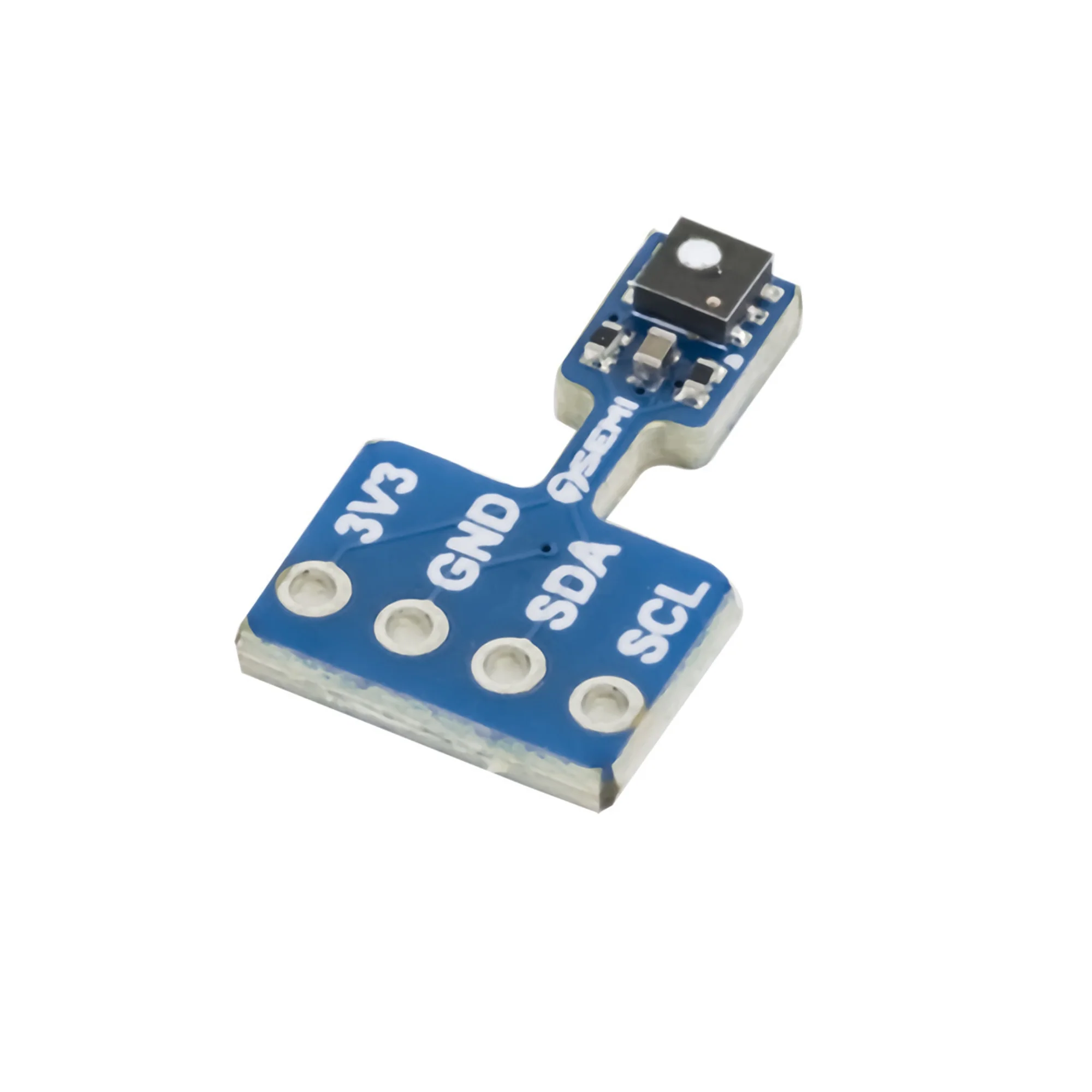

The 7Semi SGP40 VOC Sensor Breakout is a compact indoor air-quality sensing module based on the Sensirion SGP40 gas sensor. It detects volatile organic compounds (VOCs) and outputs a digital VOC Index via I²C. With a 2.54mm header for easy prototyping, this breakout is ideal for smart-home systems, ventilation control, air purifiers, HVAC automation, and IoT environmental monitoring applications.

Technical Specifications:

• Sensor IC: Sensirion SGP40 (MOX-based VOC sensor)

• Measurement Output: VOC Index (0–500) and raw VOC signal

• VOC Detection Range: Up to ~1000 ppm (ethanol-equivalent VOC level)

• Response Time: <10 seconds (typical)

• Interface: I²C

• Supply Voltage: 3.3V

• Current Consumption: ~2.6 mA at 3.3V

• Header Pitch: 2.54mm breadboard-compatible

• Sensor Type: Metal-oxide gas sensor with micro-hotplate

• Output Type: Digital processed VOC index

• Logic Compatibility: 3.3V systems

• Module Type: Compact breakout board

Features:

• Detects a wide range of indoor VOC pollutants

• Digital I²C communication for easy MCU integration

• Provides ready-to-use VOC Index values without complex processing

• Compact breakout with standard 2.54mm pin header

• Low-power operation suitable for continuous indoor monitoring

• Fast response time to air-quality changes

• High long-term stability and robust gas-sensing performance

• Designed for smart-home, HVAC, and IoT systems

• Works with Arduino, ESP32, STM32, Raspberry Pi

• Suitable for portable and embedded applications

Applications:

• Indoor air-quality monitoring

• Air purifiers and filtration systems

• Smart-home and IoT environmental sensors

• Kitchen, office, and room VOC detection

• HVAC automation and air-quality control

• Smart-building monitoring

• Data logging and environmental research

• Portable air-quality meters

• Safety and ventilation systems

• Consumer air-quality devices
