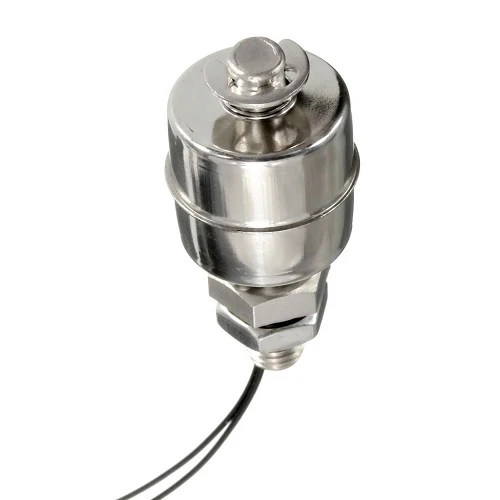

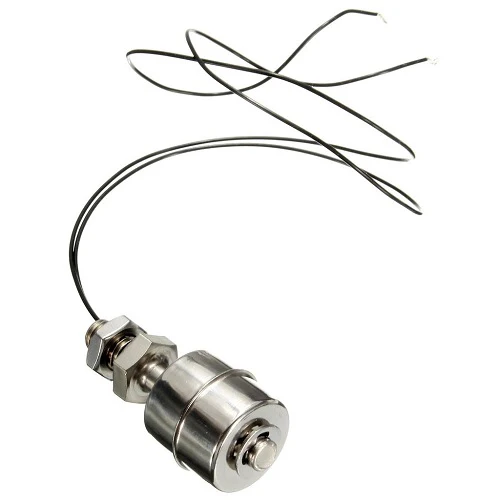

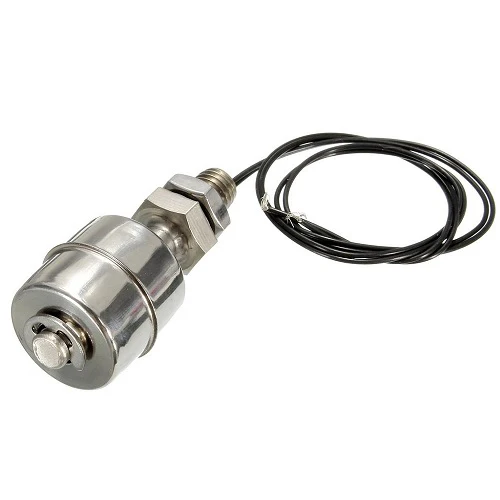

Stainless Steel Water Level Sensor Internal Float Switch 45mm
This float switch is simple structure liquid level controller. The float level switch is widely used in electronic, electrical, chemical, water treatment, drainage and other walks of life level control and alarm.
Technical Specification:
- Material: Stainless Steel
- Color: Silver
- Max Contact Rating: 10W
- Max switching voltage: 100V DC
- Max switching current: 0.5A
- Max breakdown voltage: 220V DC
- Max carry current: 1A
- Max contact resistance: 100mΩ
- Max temperature: -30~+125°
- Thread Dia(Approx): 10mm
- Cable Length(Approx): 350mm
- Size: 6cm*2.6cm
Features:
- Light weight and simple working principle, high reliability
- Simple structure, easy installation liquid level controller
Applications:
- Can be used to sense the level of liquid within a tank, the switch may activate a pump, an indicator, an alarm, or other device
