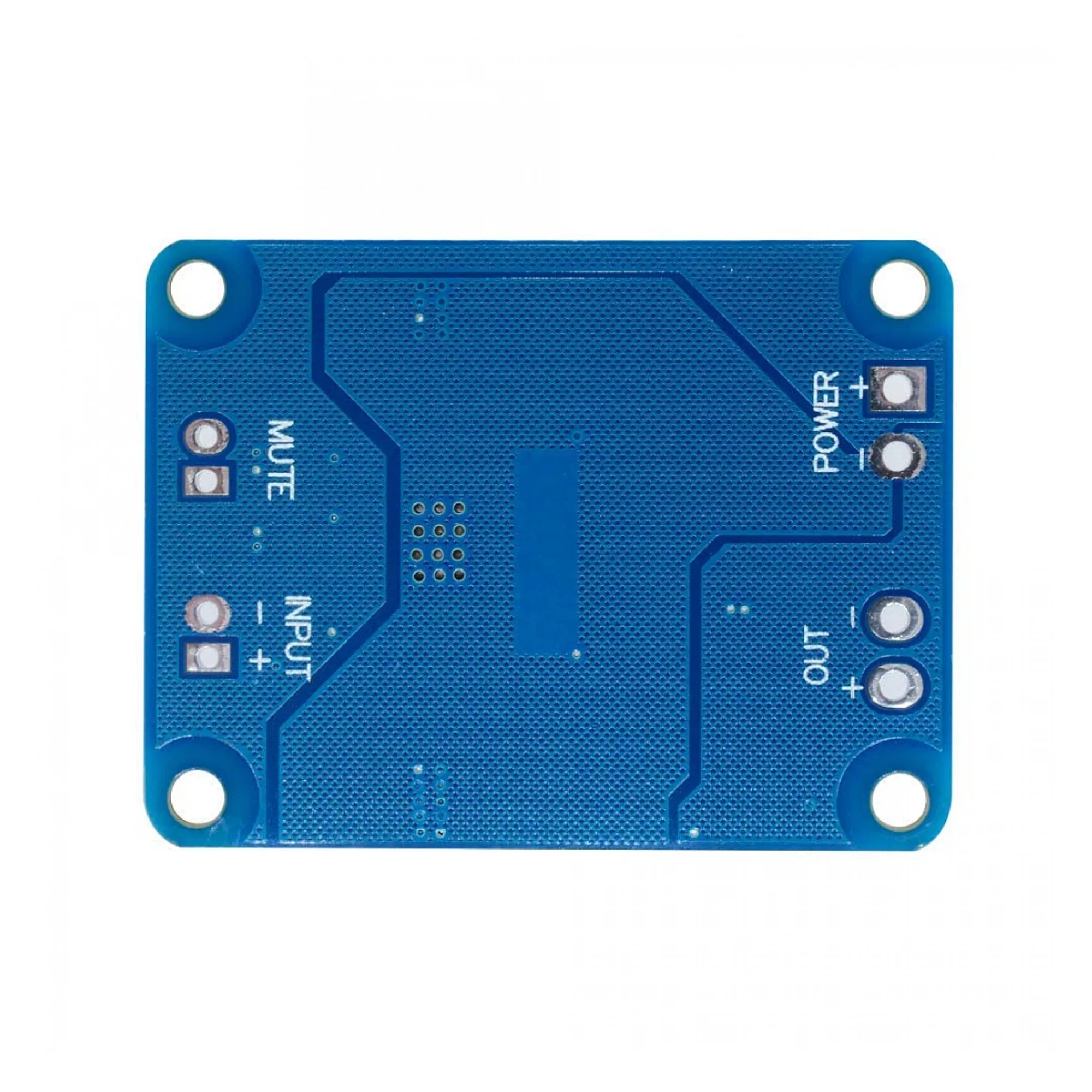

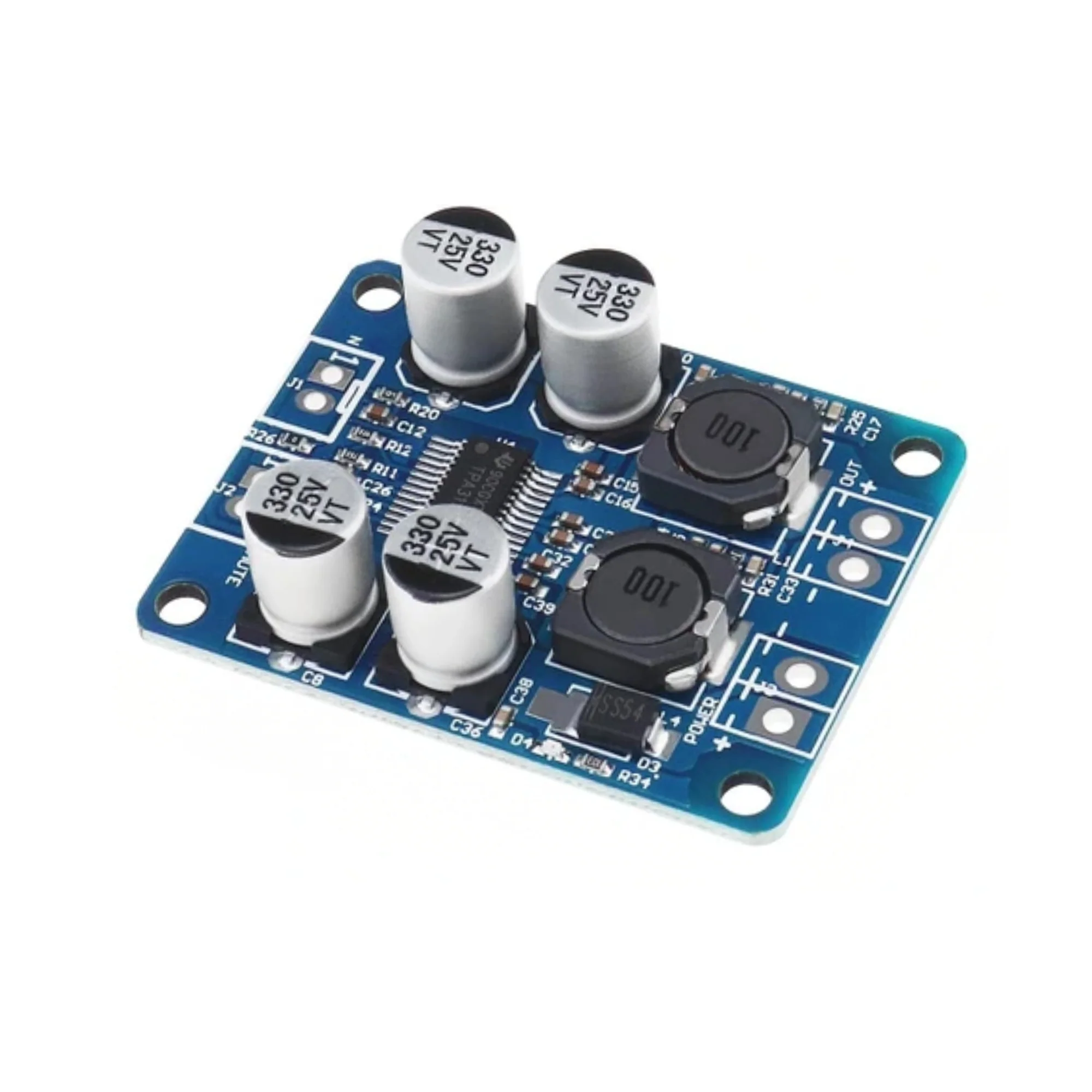

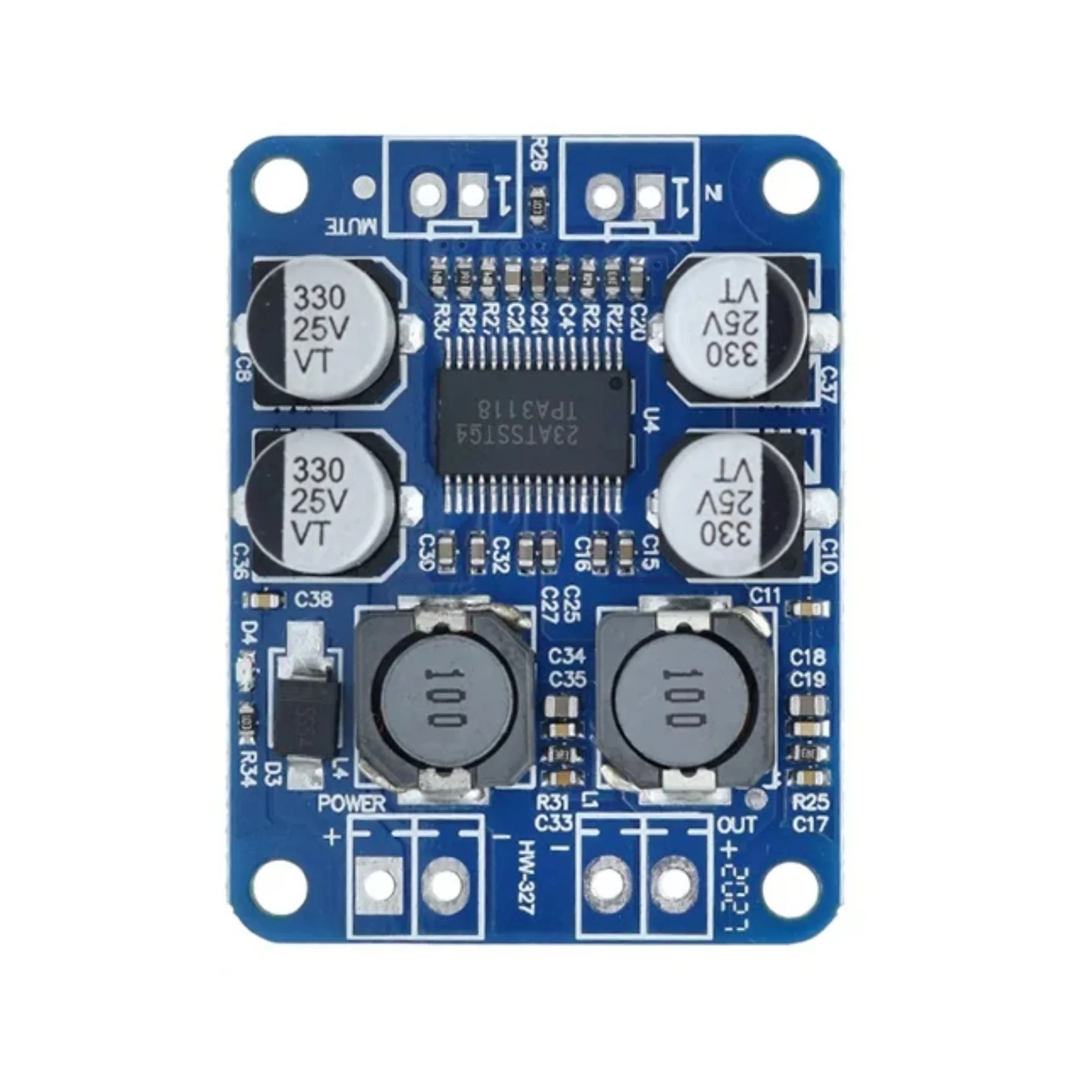

TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module

This TPA3118 PBTL mono amplifier module is a high-efficiency Class-D audio amplifier designed for high-power single-channel output. Using the TPA3118 IC in PBTL (Parallel Bridge-Tied Load) mode, it delivers strong, clean mono output with excellent efficiency and low distortion. The module is ideal for subwoofers, mono speaker systems, and compact high-power audio projects.

Technical Specifications:

• Amplifier IC: TPA3118

• Amplifier Type: Class-D

• Channel Configuration: Mono (PBTL mode)

• Output Power: Up to 60W (load and supply dependent)

• Input Voltage: DC 8–24V

• Recommended Speaker Impedance: 4–8Ω

• Efficiency: Up to 90%

• Audio Input: Analog (IN+, IN−)

• PCB Color: Blue

• Mounting Holes: 4 corner holes

Features:

• High-power mono output using PBTL configuration

• High efficiency with low heat generation

• Low noise and low distortion performance

• Wide DC input voltage range

• Compact PCB design with robust components

Applications:

• Subwoofer amplifier systems

• Mono speaker and PA projects

• DIY audio amplifier builds

• Bluetooth and multimedia speaker systems
