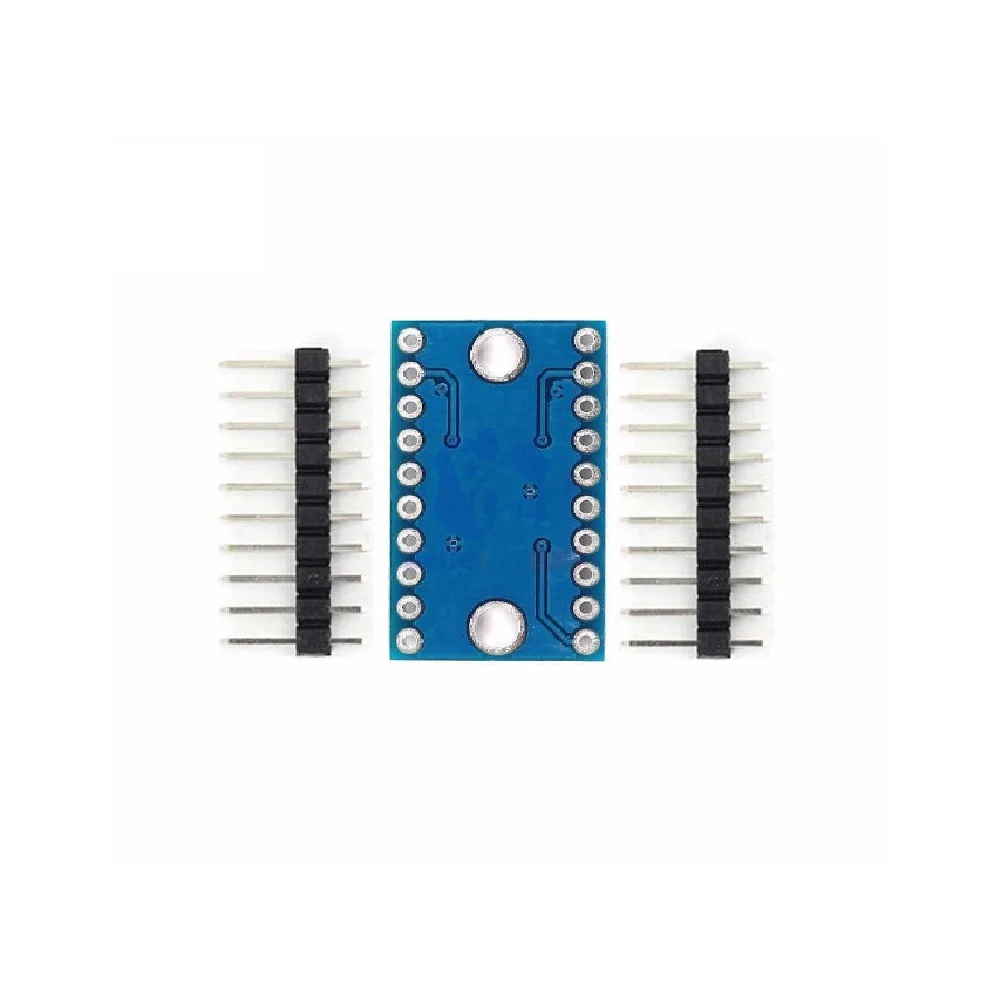

TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
This module provides two-way communication capability at varied voltage levels. This chip performs bidirectional level shifting from any voltage and will auto detect the direction.
Technical Specification:
- Module chip: TXS0108E
- VCC A side support voltage: 2 ~ 3.6 V
- VCC B side support voltage: 65 ~ 5.5 V
- Communication Interface Compatible: UART/IIC/SPI
- No. of Bits: 8
- Size: 27mm*17mm*3mm (L*W*H)
Features:
- 8-bit bi-directional 3.3V-5V/5V-3.3V logic level converter board
- Serial communication interface compatible with UART/IIC/SPI port easily to connect
- Ship out by USPS with tracking information and 7-17 days delivery time usually
Applications:
- Can be used in MCU and SD card, MCU and serial devices, MCU and 5V/3V module communication
