USB Type-C Female PCB Module
USB Type-C Female PCB Module

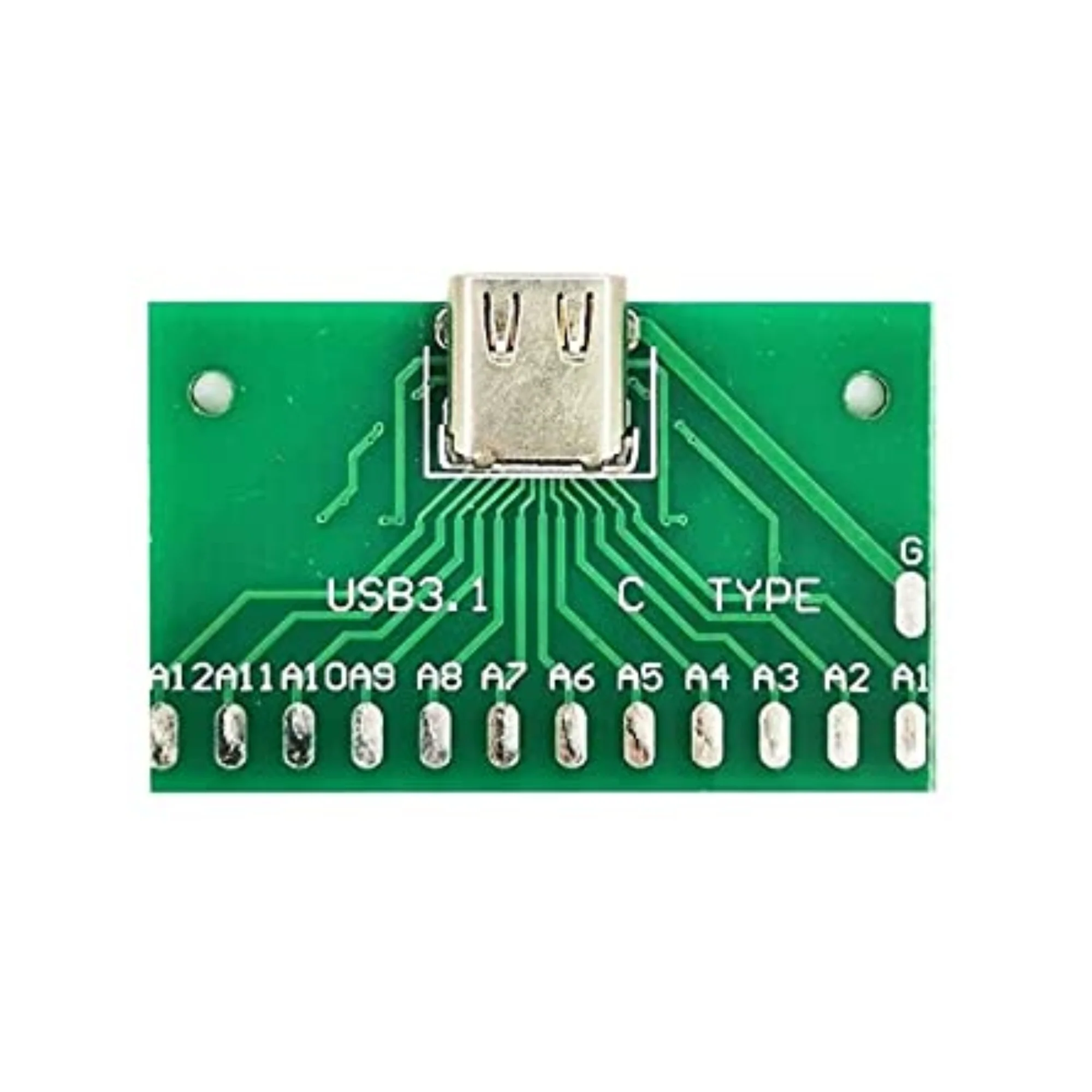

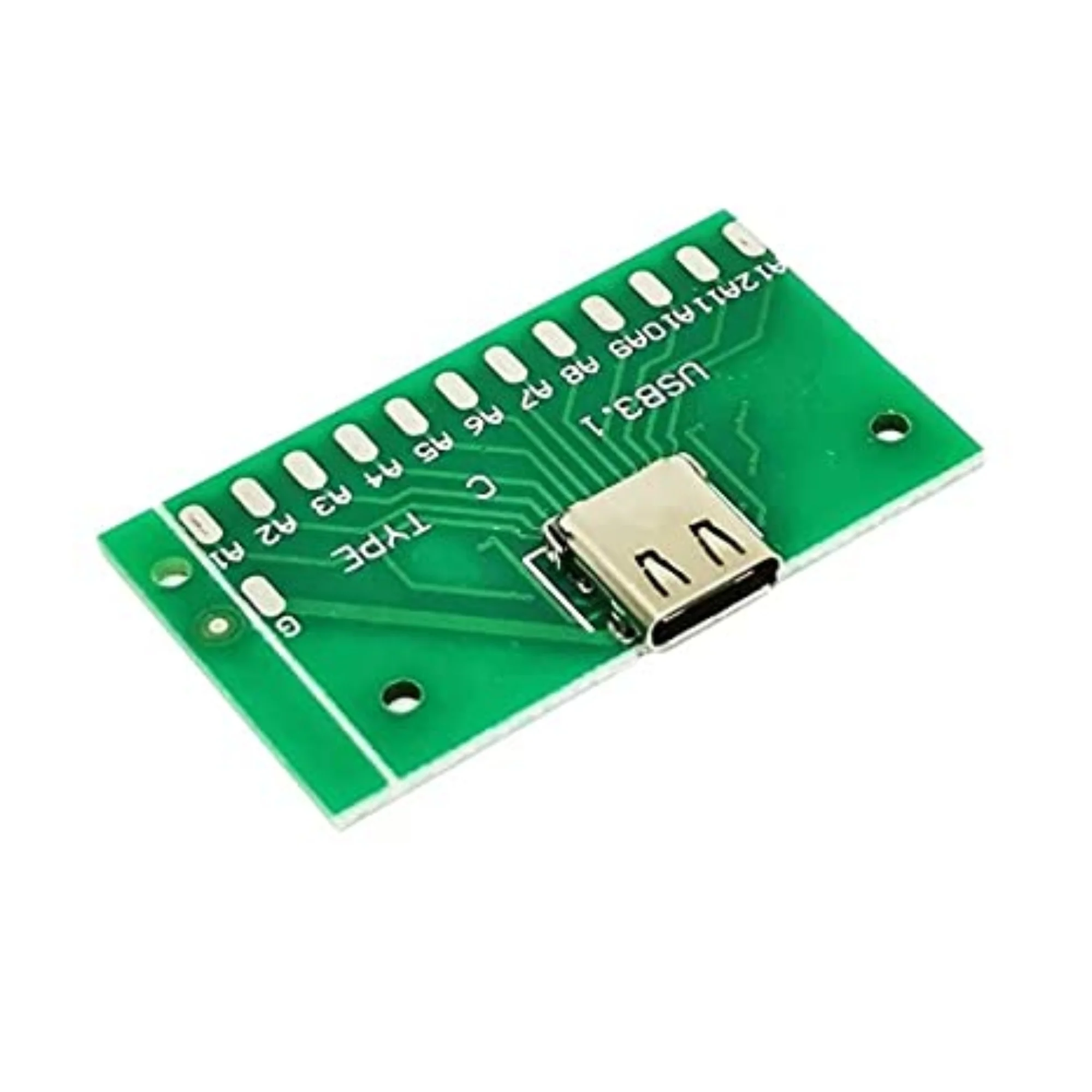

The USB Type-C Female PCB Module is a compact breakout board that exposes the essential USB Type-C pins onto clearly labeled PCB pads, enabling easy soldering and integration into electronic projects. Designed for prototyping and embedded applications, this module allows users to add a USB-C female interface for power and basic data connectivity without complex wiring or connectors.
Technical Specifications:
Connector Type: USB Type-C female
USB Standard: USB 2.0

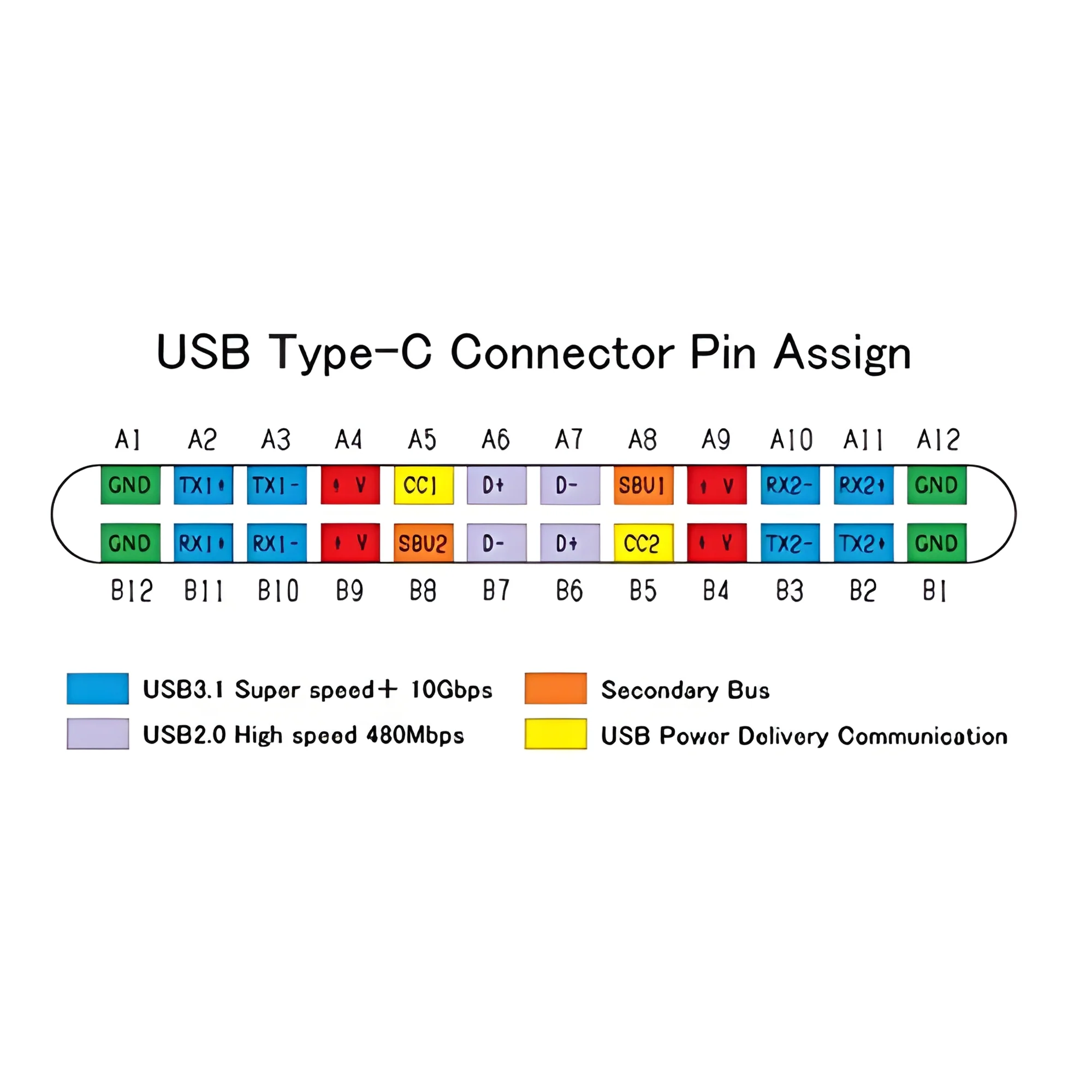

Exposed Pins: VBUS, GND, D+, D−, CC, TX/RX pads (as marked on PCB)
Rated Voltage: Up to 20 V (USB-C specification, application dependent)
Current Capacity: Up to 3 A (PCB trace dependent)
Mounting Type: PCB mount with screw holes
PCB Material: FR-4
Connector Orientation: Horizontal
Solder Interface: Large solder pads for easy hand soldering
Features:
Compact USB Type-C female breakout design
Clearly labeled pin pads for quick connections
Supports USB power and data lines
Strong mechanical connector mounting
Easy to integrate into custom PCBs and enclosures
Suitable for low-power and development applications
Ideal for learning and rapid prototyping
Applications:
DIY electronics projects
USB-C power input for embedded systems
Arduino, ESP32, STM32, and Raspberry Pi projects
Custom PCBs and prototypes
USB port replacement and testing
Educational and lab use
