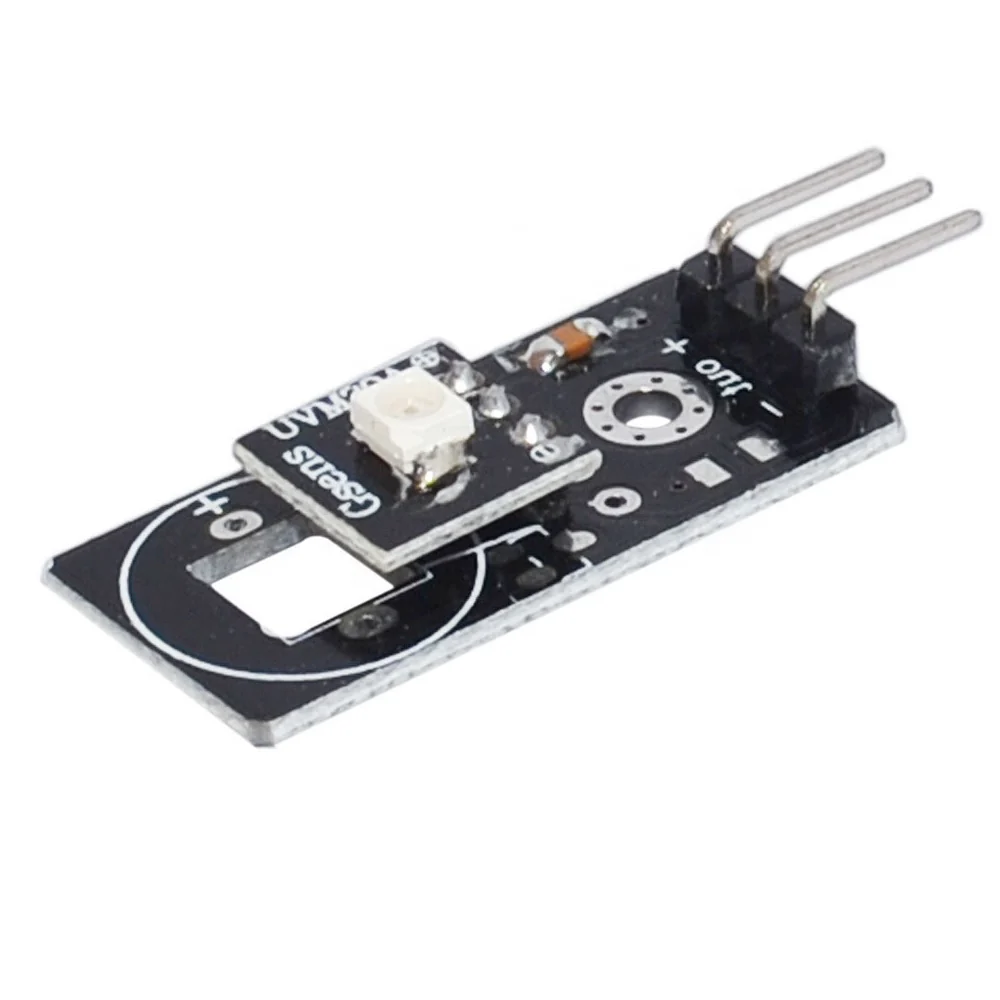

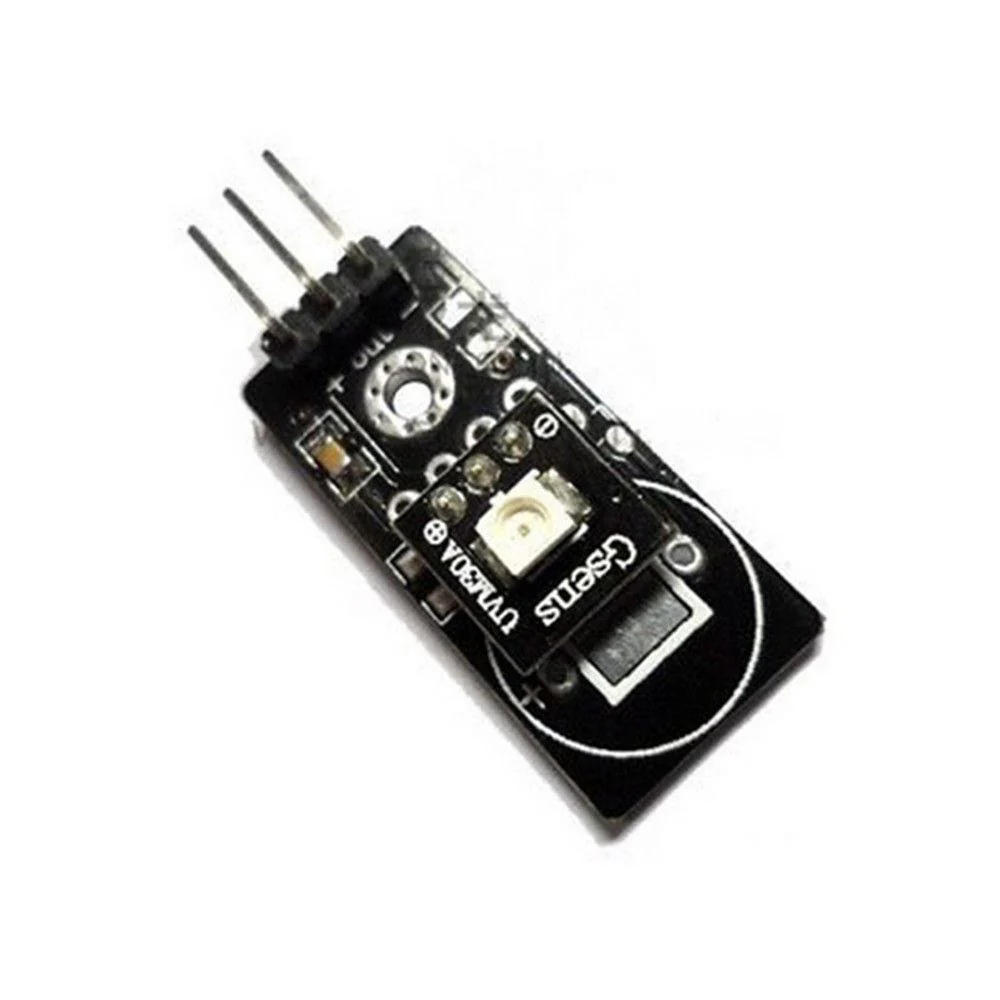

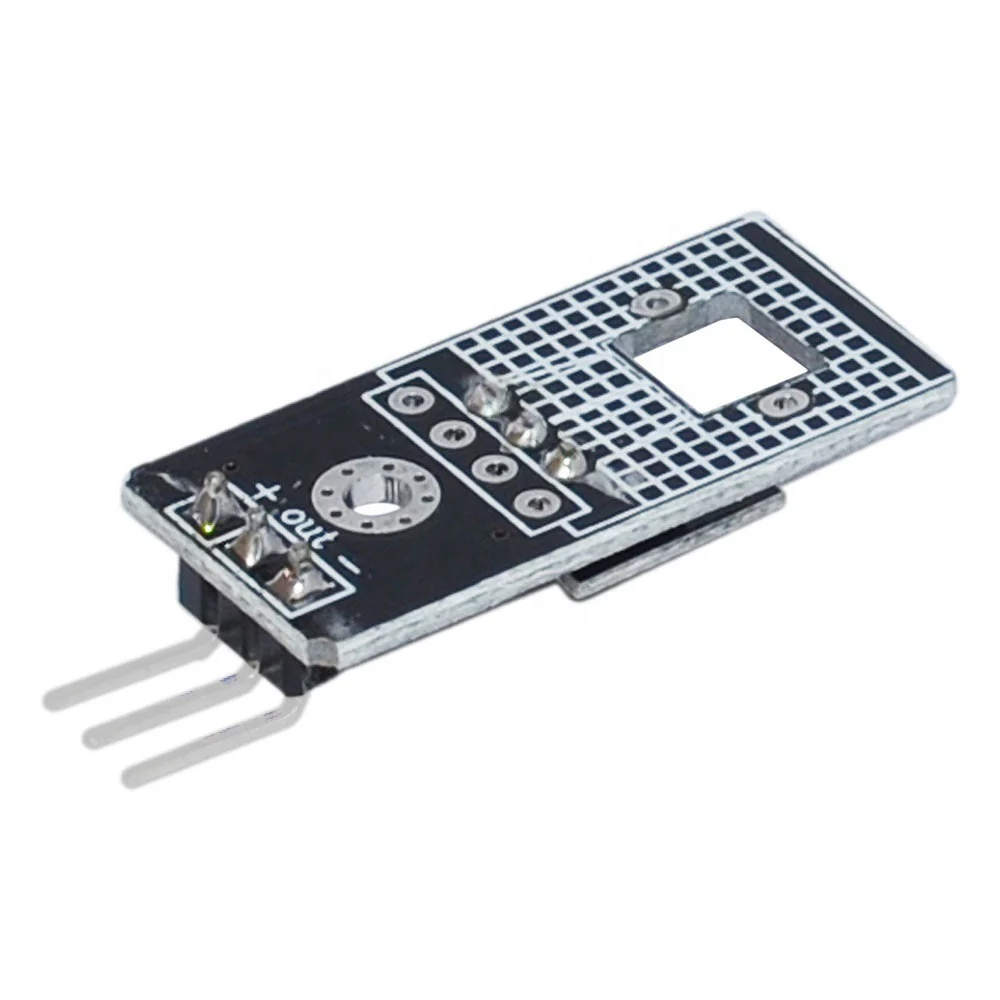

UVM30A Ultraviolet Ray Detection Module
The module will detect this electromagnetic radiation and using the UVM30A chip it will convert the short wavelengths into digital signal for your microcontroller. It a great little sensor to tell how much sunlight your plants are getting or if it’s the right day to put on sun cream before going out.
Technical Specification:
- Input Voltage: 3v~5v
- Current: 0.06m (Standard) / 0.1Ma (Max)
- UV detection wavelength:200-370nm
- Operating Temperature: -20~85C
- Pinout: GND, Signal, VCC
- Size: 2mm*14mm*6mm (L*W*H)
Features:
- Suitable for measuring the amount of UV intensity of sunlight
- Control World Health Organization classification standard UV Index
- Fast response , full interchangeability
- Using a patented solid polymer structure , waterproof and dustproof easy to clean
- Small size , suitable for mobile phones and other portable products
Applications:
- Can be used for detecting intensity of UltraViolet Radiation
