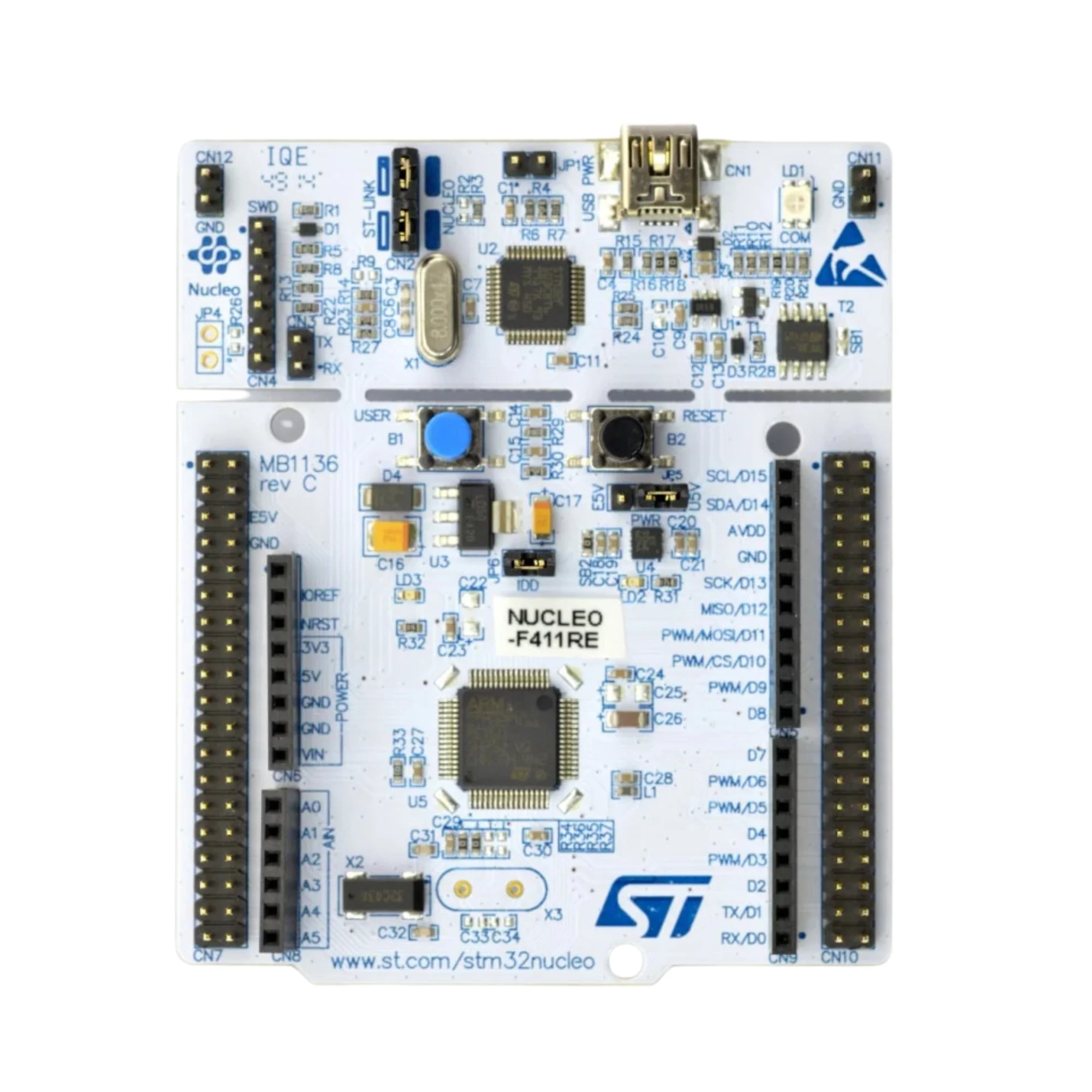

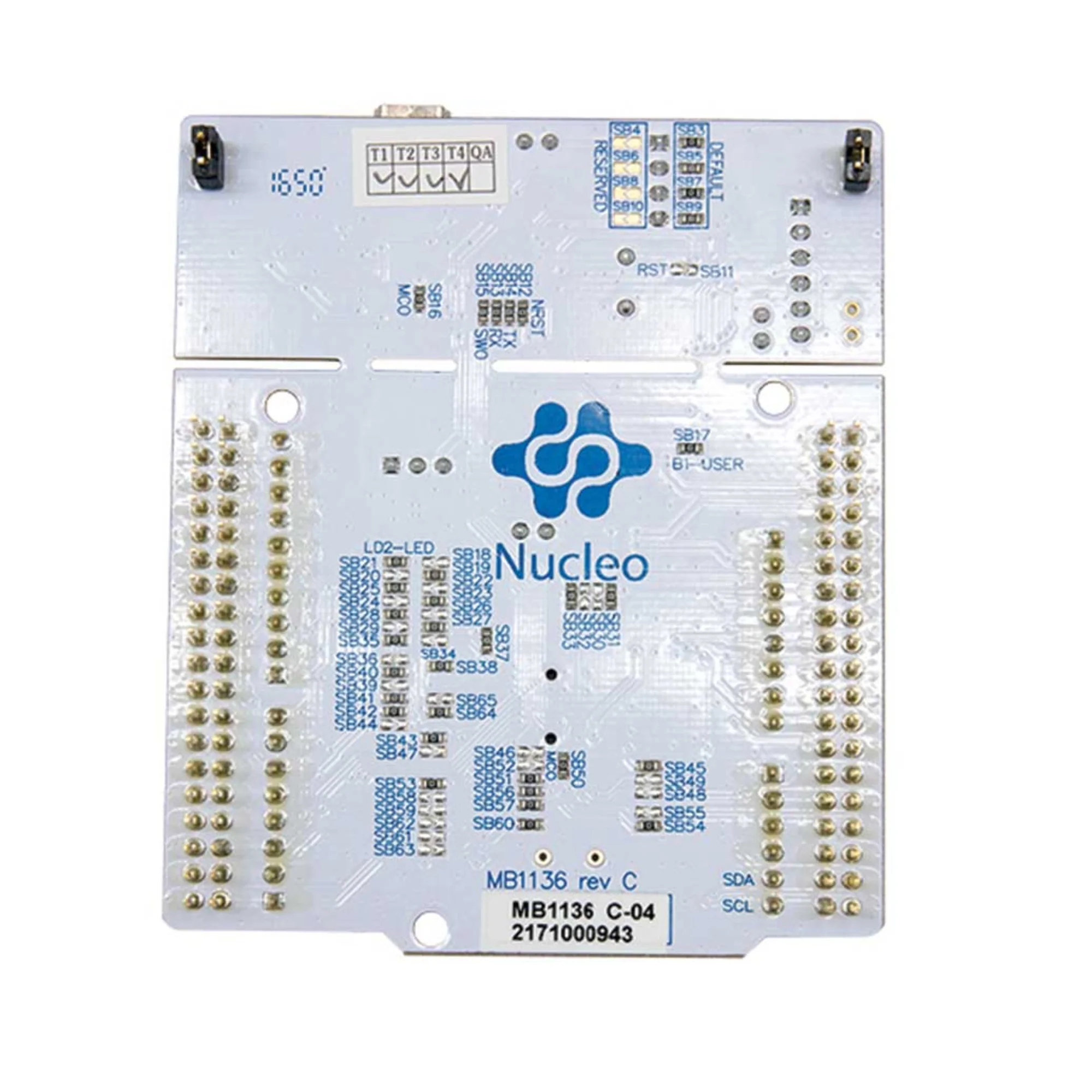

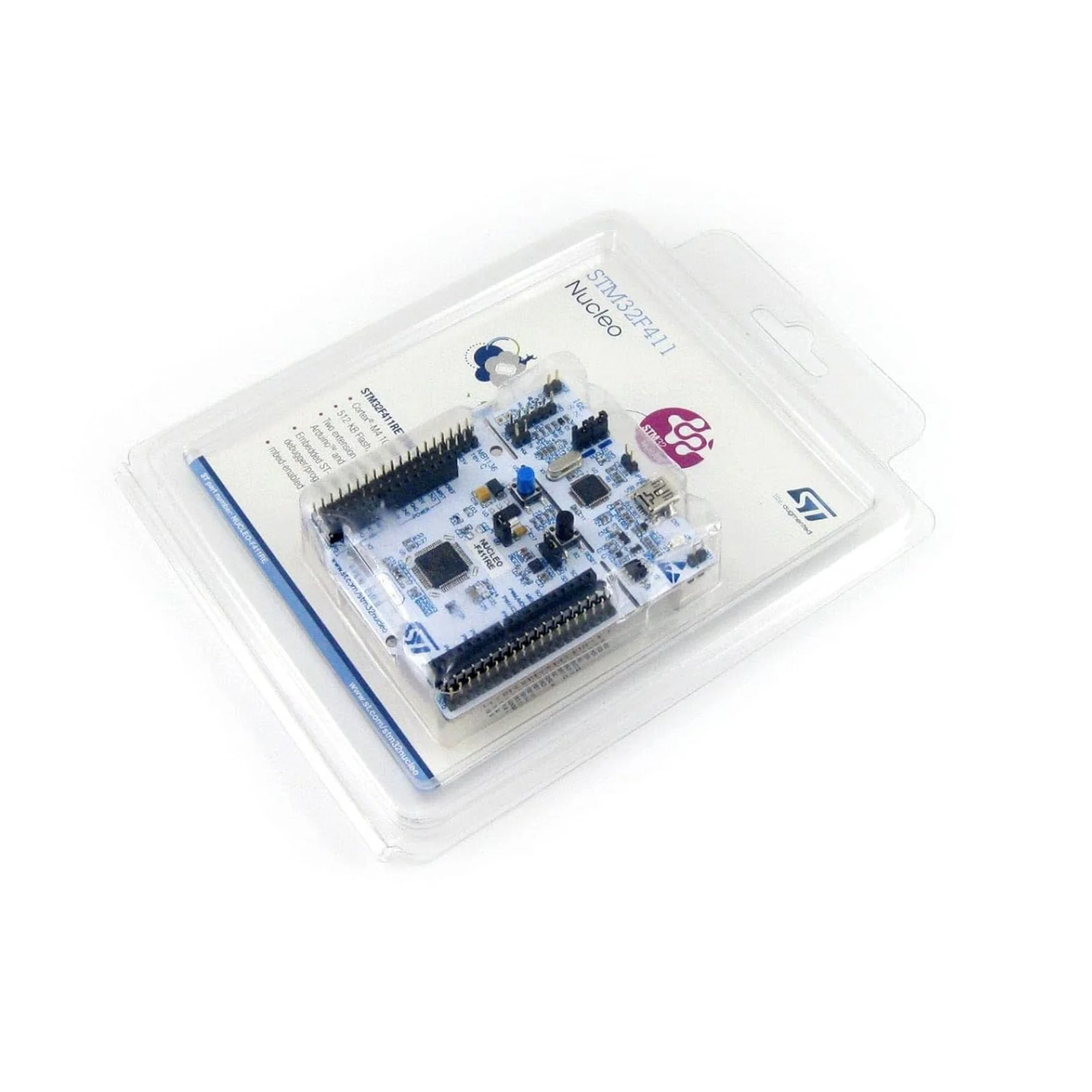

STM32F411RE NUCLEO Development Board

The STM32F411RE NUCLEO Development Board is a powerful and flexible development platform from STMicroelectronics based on the STM32F411RE microcontroller featuring an ARM Cortex-M4 core with FPU. It is designed for rapid prototyping, embedded development, and learning purposes. The board includes an on-board ST-LINK debugger/programmer, Arduino UNO V3–compatible headers, and Morpho headers for full I/O access, making it ideal for both beginners and professional developers.

Technical Specifications:

• Microcontroller: STM32F411RE
• Core: ARM Cortex-M4 with FPU
• Maximum Clock Frequency: 100 MHz
• Operating Voltage: 3.3 V
• Flash Memory: 512 KB
• SRAM: 128 KB
• Digital I/O Pins: Up to 50 (via headers)
• Analog Inputs: 16-channel 12-bit ADC
• Communication Interfaces: UART, SPI, I²C, I²S, USB
• Debug Interface: On-board ST-LINK/V2-1
• USB Interface: Micro-USB
• Expansion Headers: Arduino UNO V3, Morpho
• Operating Temperature: −40 °C to +85 °C

Features:

• High-performance ARM Cortex-M4 MCU with FPU
• On-board ST-LINK debugger and programmer
• Arduino UNO–compatible pin layout
• Morpho headers for full MCU pin access
• USB-powered and standalone operation support
• User button and programmable LEDs
• Compatible with STM32CubeIDE, Arduino IDE, and other toolchains

Applications:

• Embedded system development
• IoT and connected devices
• Motor control and real-time applications
• Signal processing and audio applications
• Robotics and automation
• Industrial control systems
• Educational and training platforms
