Arduino Due Original
Arduino Due Original

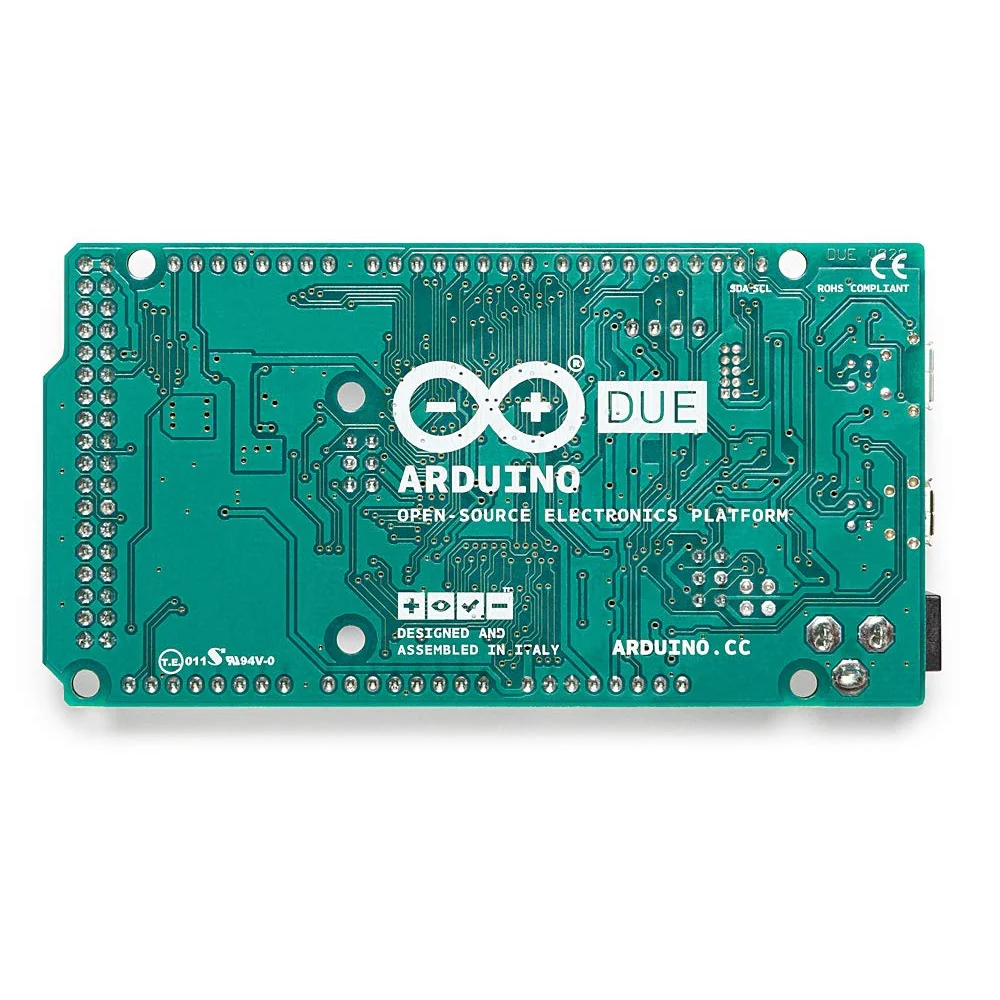

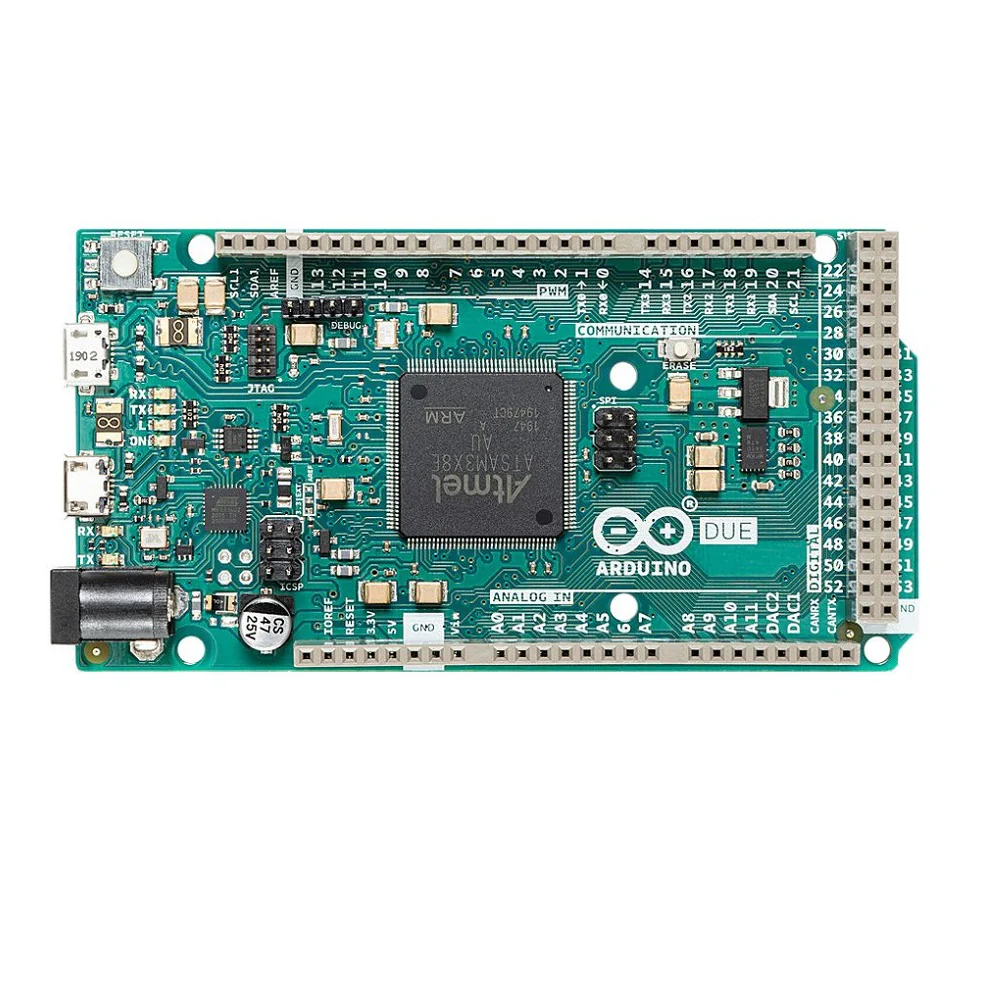

The Arduino Due is a powerful microcontroller development board based on the Atmel SAM3X8E ARM Cortex-M3 processor. It is the first Arduino board to use a 32-bit ARM core, offering significantly higher performance compared to 8-bit Arduino boards. Operating at 84 MHz, the Arduino Due is ideal for advanced applications requiring fast processing, multiple communication interfaces, and higher I/O capabilities. It is fully compatible with the Arduino IDE and supports complex embedded and real-time control projects.
Technical Specifications:
- Microcontroller: Atmel SAM3X8E (ARM Cortex-M3)
- Operating Voltage: 3.3 V
- Input Voltage (Recommended): 7 V – 12 V
- Clock Speed: 84 MHz
- Flash Memory: 512 KB
- SRAM: 96 KB
- Digital I/O Pins: 54 (12 PWM capable)
- Analog Input Pins: 12 (12-bit ADC)
- Analog Output Pins: 2 (12-bit DAC)
- Communication Interfaces: UART, SPI, I²C (TWI), CAN, USB OTG
- USB Ports: Native USB + Programming USB
- EEPROM: None (emulated in flash)
Features:
- 32-bit ARM Cortex-M3 architecture for high performance
- High-speed 84 MHz processing
- 12-bit ADC and DAC for precise analog control
- Multiple communication interfaces including CAN and USB OTG
- Large number of GPIO pins for complex projects
- Compatible with Arduino IDE and libraries (3.3 V logic)
- Suitable for real-time and data-intensive applications
Applications:
- Advanced robotics and automation
- Industrial control systems
- High-speed data acquisition
- Motor control and CNC systems
- Embedded networking and CAN bus projects
- Audio signal processing
- Research, prototyping, and educational projects
