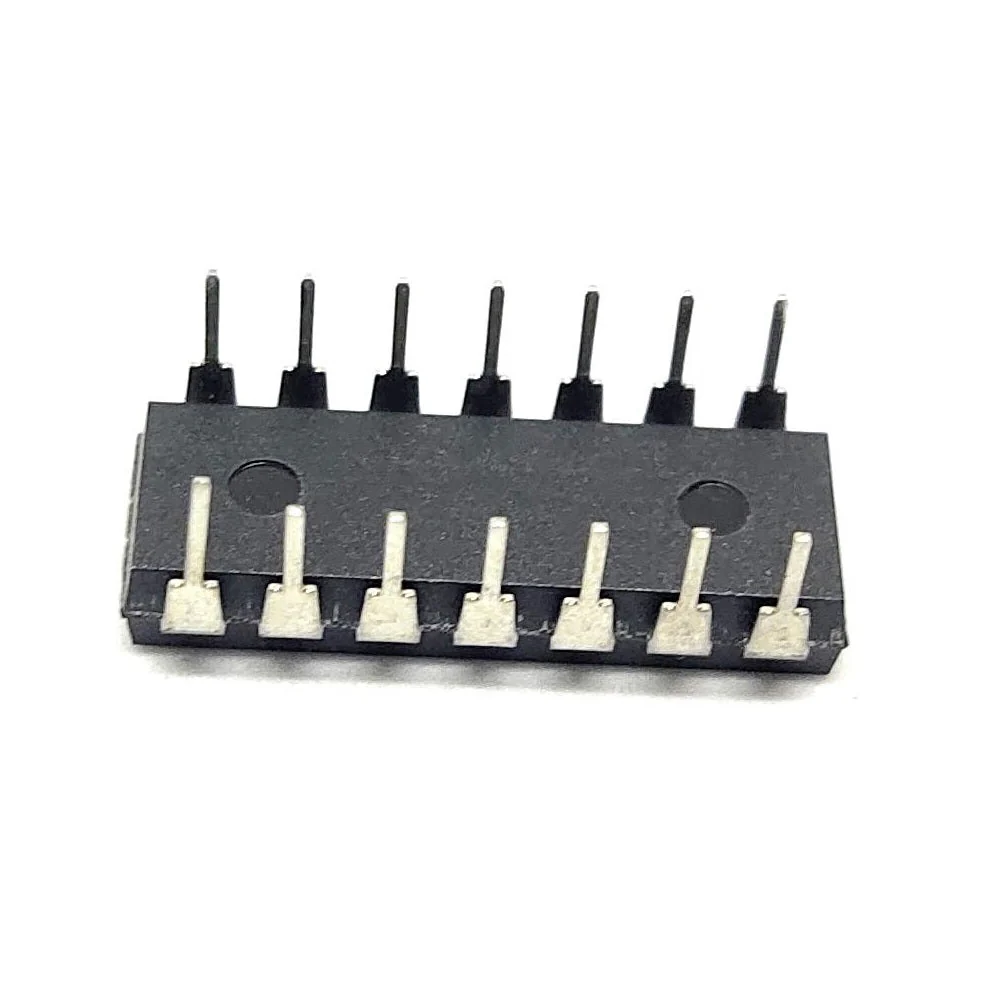

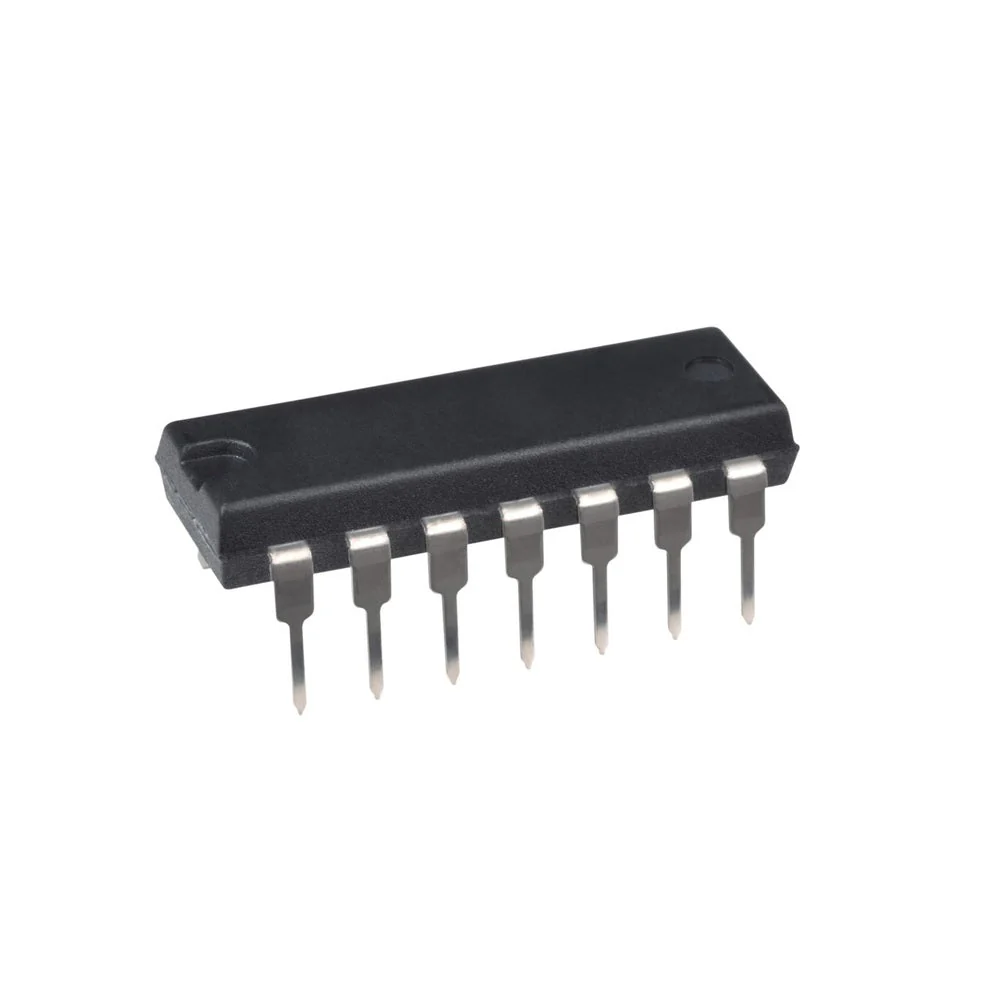

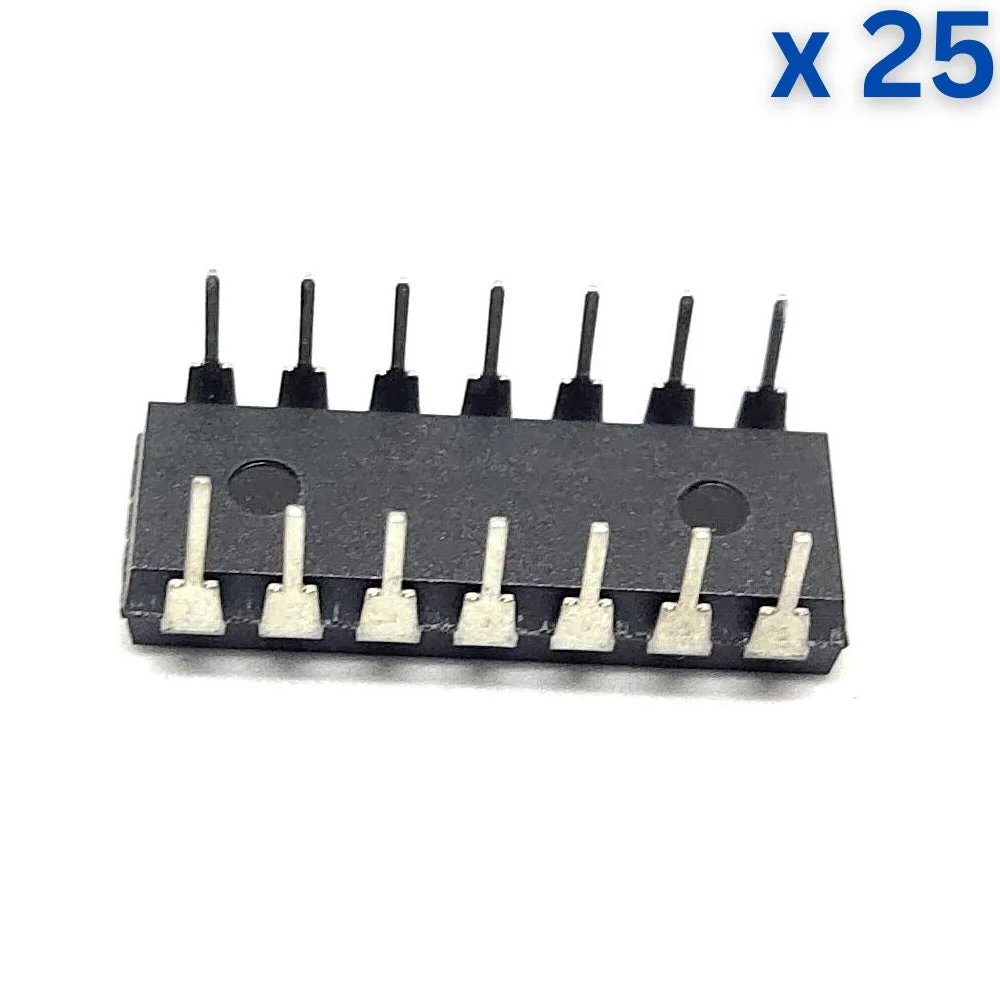

CD4072 Dual 4-input OR Gate IC DIP-14 Package
CD4072 is a part of the CD4000 IC series. CD4072 is a Triple 3-Input OR Gate that allows designers of the positive-logic OR function and supplements the existing family of CMOS gates.
Technical Specification:
- VCC: 3V to 18V
- Channels (#): 2
- Inputs per channel: 4
- Input type: Standard CMOS
- Output type: Push-Pull
- Features: Standard Speed (tpd > 50ns)
- IOL (Max) (mA): 6.8
- IOH (Max) (mA): -6.8
- Data rate (Max): 8Mbps
- Operating temperature range: -55°C to 125°C
Features:
- Four Independent 2-input OR Gates
- Buffered Output
- Wide Operating Voltage Range
- Low Power TTL
Applications:
- Doorbell
- Industrial plantation
- Used as Protective measures
