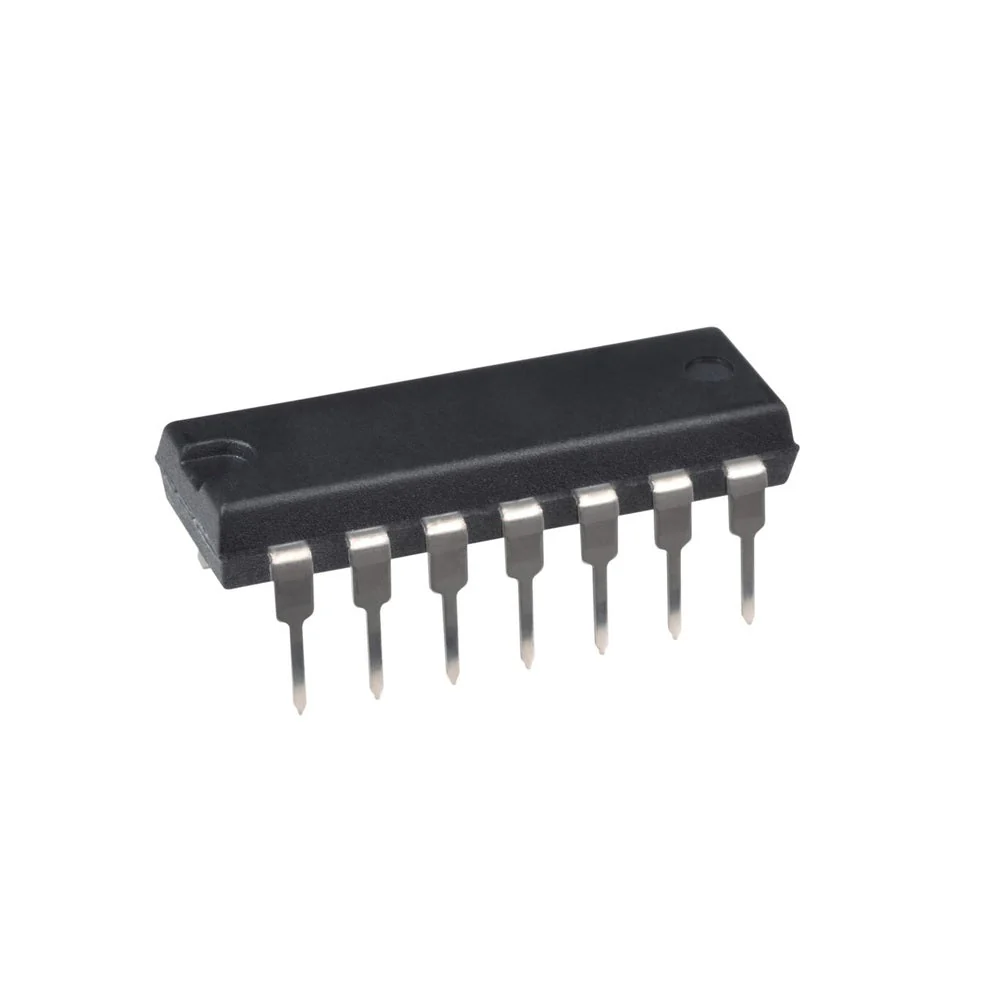

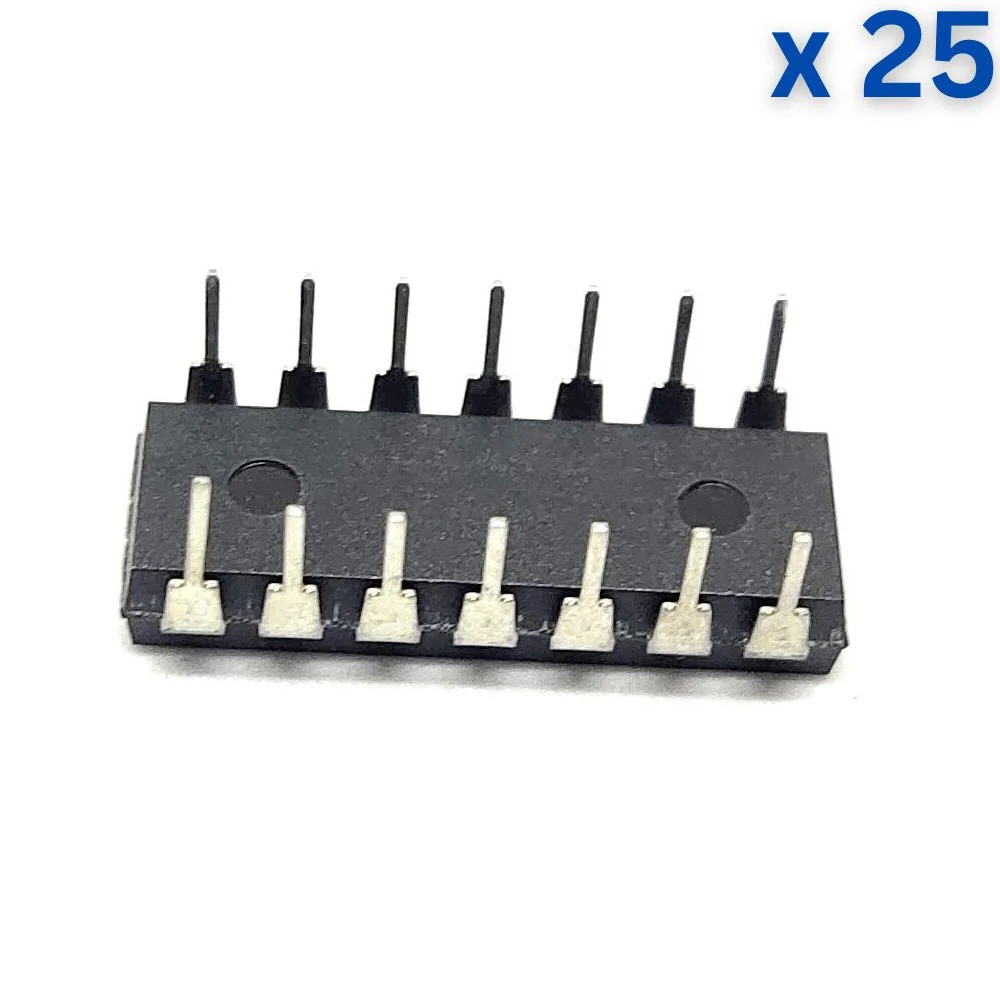

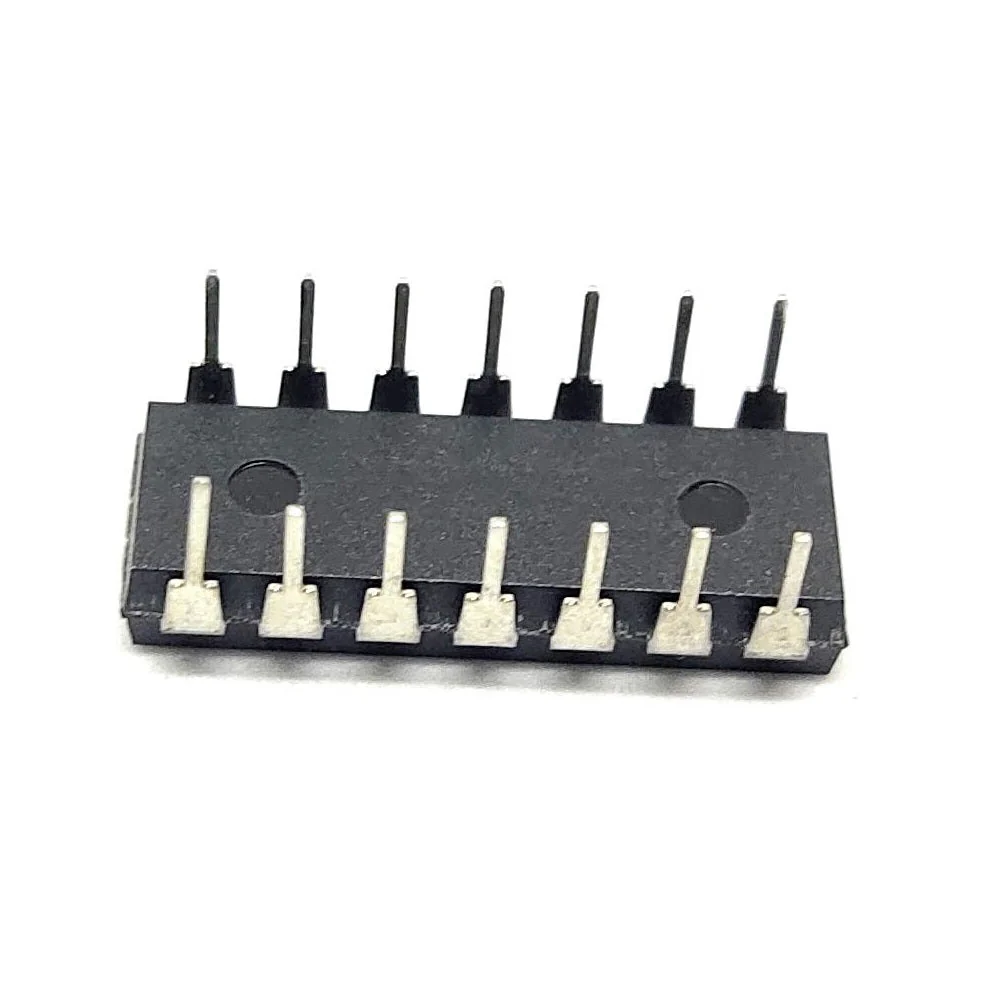

CD4073 IC is a Triple 3-input AND Gate made by using the complimentary MOS (CMOS) technology integrated with P and N type MOSFETS. This IC allows system designers to utilize the AND gate function and supplement the existing family of CMOS gates.

Technical Specification:

• Number of Bits: 3 bit
• Number of Input Lines: 3 Input
• Number of Output Lines: 1 Output
• High Level Output Current: -1.5 mA
• Low Level Output Current: 1.5 mA
• Propagation Delay Time: 120 ns
• Operating Supply Voltage: 3 ~ 18v
• Operating Supply Current: 25 uA
• Quiescent Current: 20 nA
• Operating Temperature: -55°C to +125°C

Features:

• Three Independent 3-input AND Gates
• Medium Speed Operation
• Wide Operating Voltage Range
• Low Power CMOS

 Applications:

• Measurement of frequency
• Enable gate and Inhibit gate
