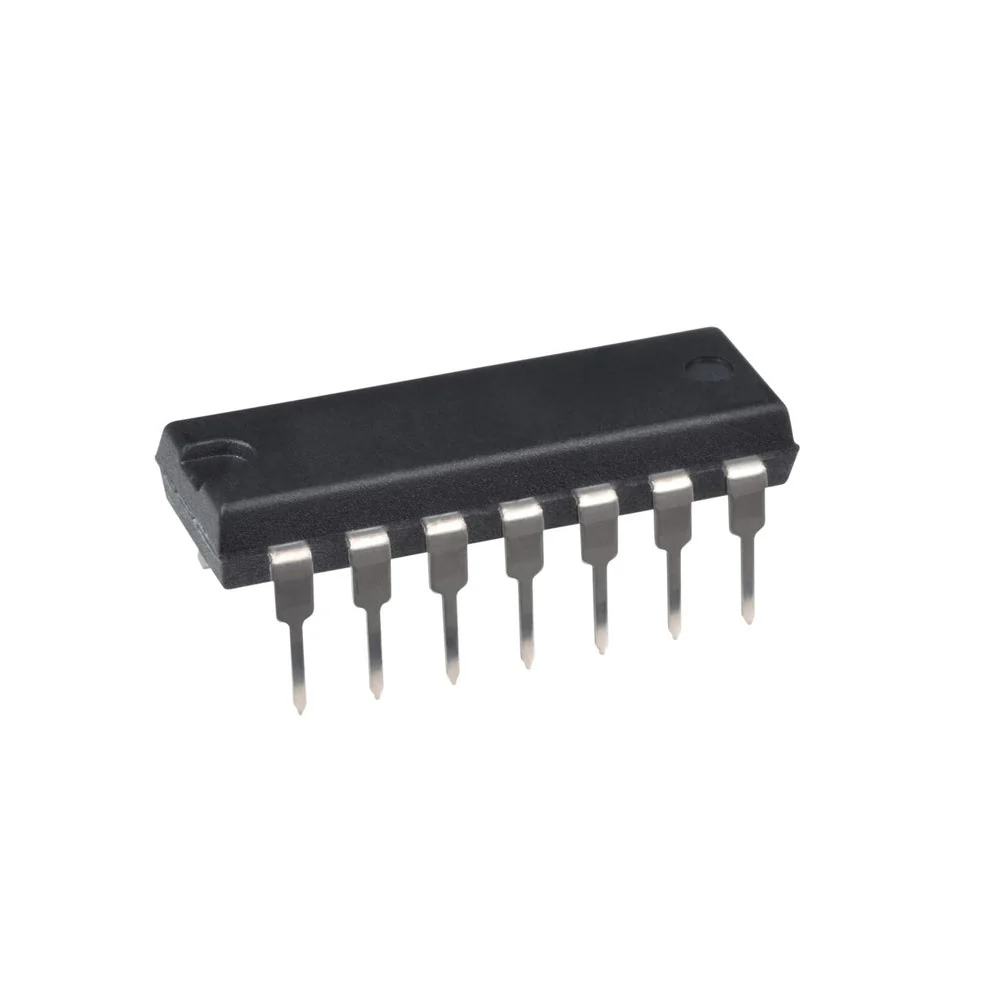

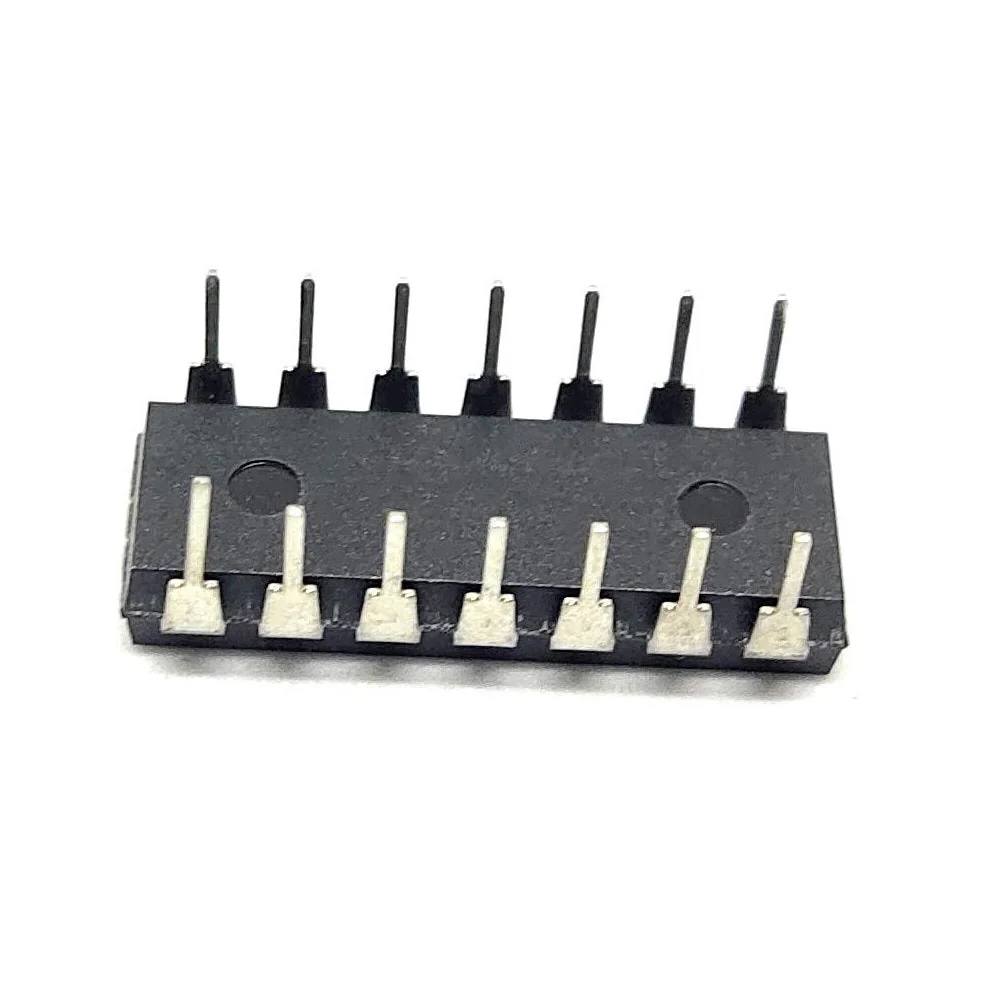

CD4086 Expandable 4-Wide 2-Input and OR Invert Gate IC DIP-14 Package
CD4086 is a part of the CD4000 IC series. CD4086 IC is a 4-wide 2-input AND-OR-INVERT gate with an INHIBIT/EXP input and an ENABLE/EXP input. The IC offers a wide array of workable voltages and operating conditions.
Technical Specification:
- Supply Voltage Range: 3 to 18V
- Input Current: ±10mA
- Power Dissipation: 500mW
- Quiescent Current Max.: 20µA
- Low level Output Voltage Max.: 0.05V
- High level Output Voltage Min.: 4.95V
- Low level Input Voltage Max.: 1.5V
- High level Input Voltage Min.: 3.5V
- Propagation Delay Time Max.: 620ns
Features:
- INHIBIT and ENABLE Inputs
- Buffered Outputs
- Max Input Leakage Current 100nA
- Standardized Symmetrical Output
- 5V, 10V and 15V Parametric Ratings
Applications:
- Used in computer, calculator, and electronic devices
