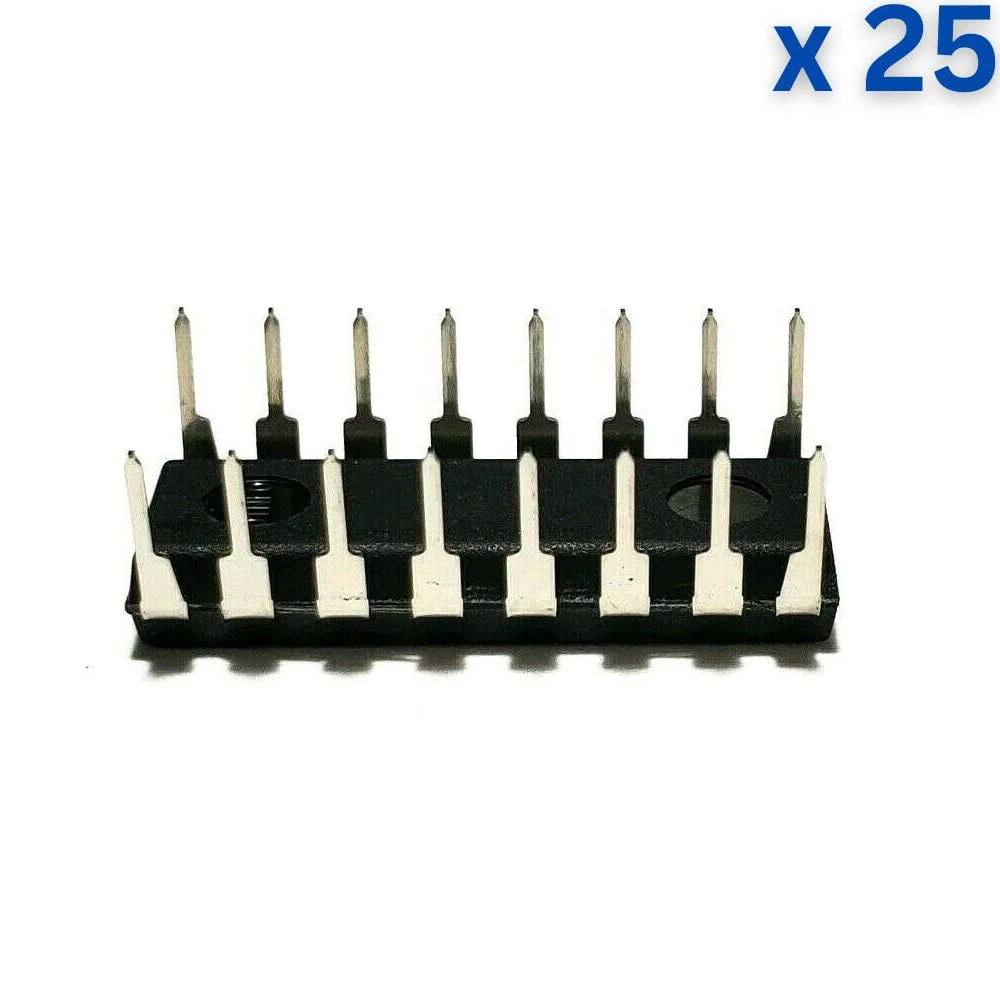

CD4510 belongs to the CD4000 IC series. CD4510 is a Presettable BCD Up/Down Counter. Synchronous cascading is accomplished by connecting all clock inputs in parallel and connecting the CARRY OUT of a less significant stage to the CARRY IN of a more significant stage.

Technical Specification:

• VCC : 3V to 18V
• Bits: 4
• Voltage (Nom): 5,10,15
• F @ Nom Voltage (Max): 8Mhz
• ICC @ Nom Voltage (Max): 0.03mA
• tpd @ Nom Voltage (Max): 200ns
• IOL (Max): 1.5mA
• IOH (Max): -1.5mA
• Function : Counter
• Operating Temperature Range (C) : -55°C to 125°C

Features:

• Synchronous Internal Carry Propagation
• Reset and Preset Capability
• Medium Speed Operation
• Wide Operating Voltage
• Low Power CMOS

 Applications:

• Up/Down Difference Counting
• Multistage Synchronous Counting
• Multistage Ripple Counting
• Synchronous Frequency Dividers
