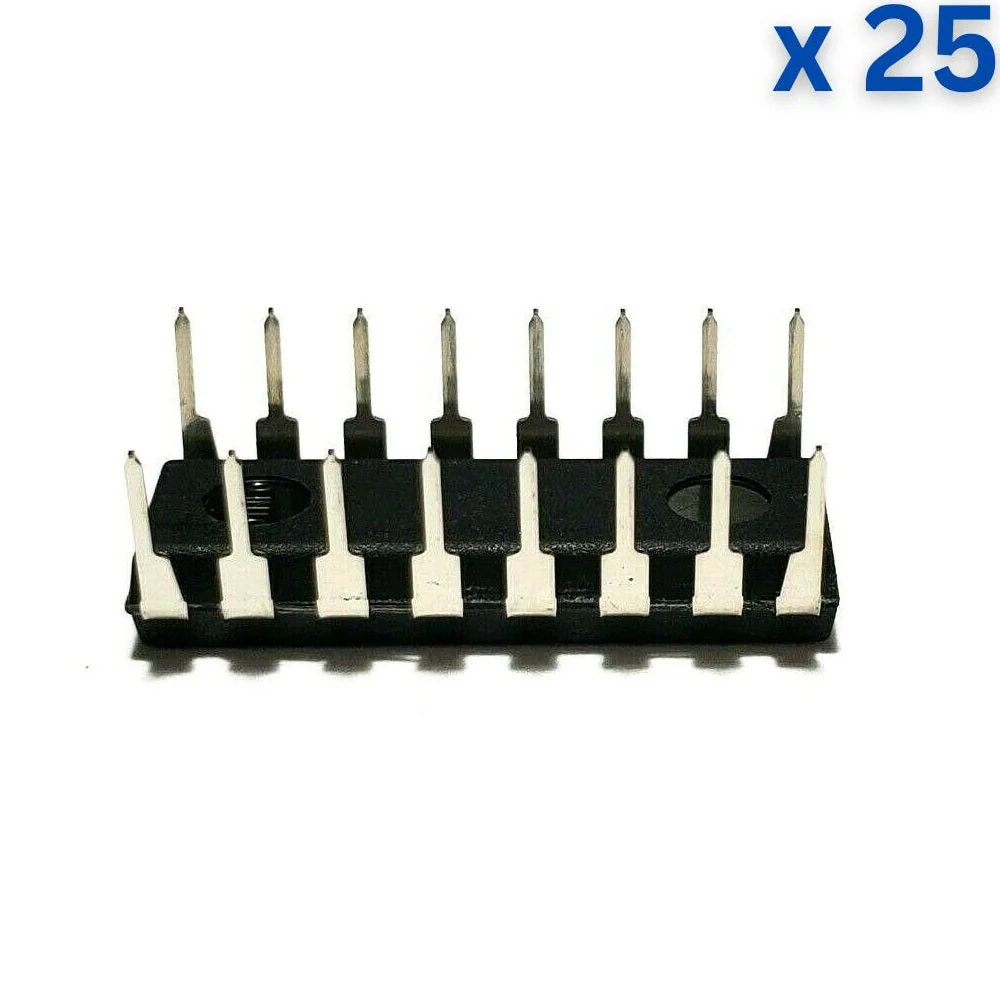

CD4556 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package

Product image 1
Product image 2
Product image 3

CD4556 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package

CD4556 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package

CD4556 is a part of the CD4000 IC series. CD4556 are dual one-of-four decoders/demultiplexers.

Technical Specification:

  • No. of Outputs: 4
  • Supply Voltage Range: 3V to 18V
  • Logic Case Style: DIP
  • No. of Pins: 16
  • Output Current Max: 6.8mA
  • Package / Case: DIP
  • Supply Voltage Min: 3V to 18V

Features:

  • Dual One-of-Four Decoders/Demultiplexers
  • Expandable with Multiple Packages
  • High Noise Immunity
  • Wide Operating Voltage
  • CD4556 Outputs Low on Select

Applications:

  • Decoding
  • Code Conversion
  • Demultiplexing (Using Enable Input as a Data Input
  • Memory Chip-Enable Selection
  • Function Selection
Select Quantity
From $0.07

Original: $0.22

-68%
CD4556 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package—

$0.22

$0.07

Product Information

Shipping & Returns

Description

CD4556 is a part of the CD4000 IC series. CD4556 are dual one-of-four decoders/demultiplexers.

Technical Specification:

  • No. of Outputs: 4
  • Supply Voltage Range: 3V to 18V
  • Logic Case Style: DIP
  • No. of Pins: 16
  • Output Current Max: 6.8mA
  • Package / Case: DIP
  • Supply Voltage Min: 3V to 18V

Features:

  • Dual One-of-Four Decoders/Demultiplexers
  • Expandable with Multiple Packages
  • High Noise Immunity
  • Wide Operating Voltage
  • CD4556 Outputs Low on Select

Applications:

  • Decoding
  • Code Conversion
  • Demultiplexing (Using Enable Input as a Data Input
  • Memory Chip-Enable Selection
  • Function Selection
