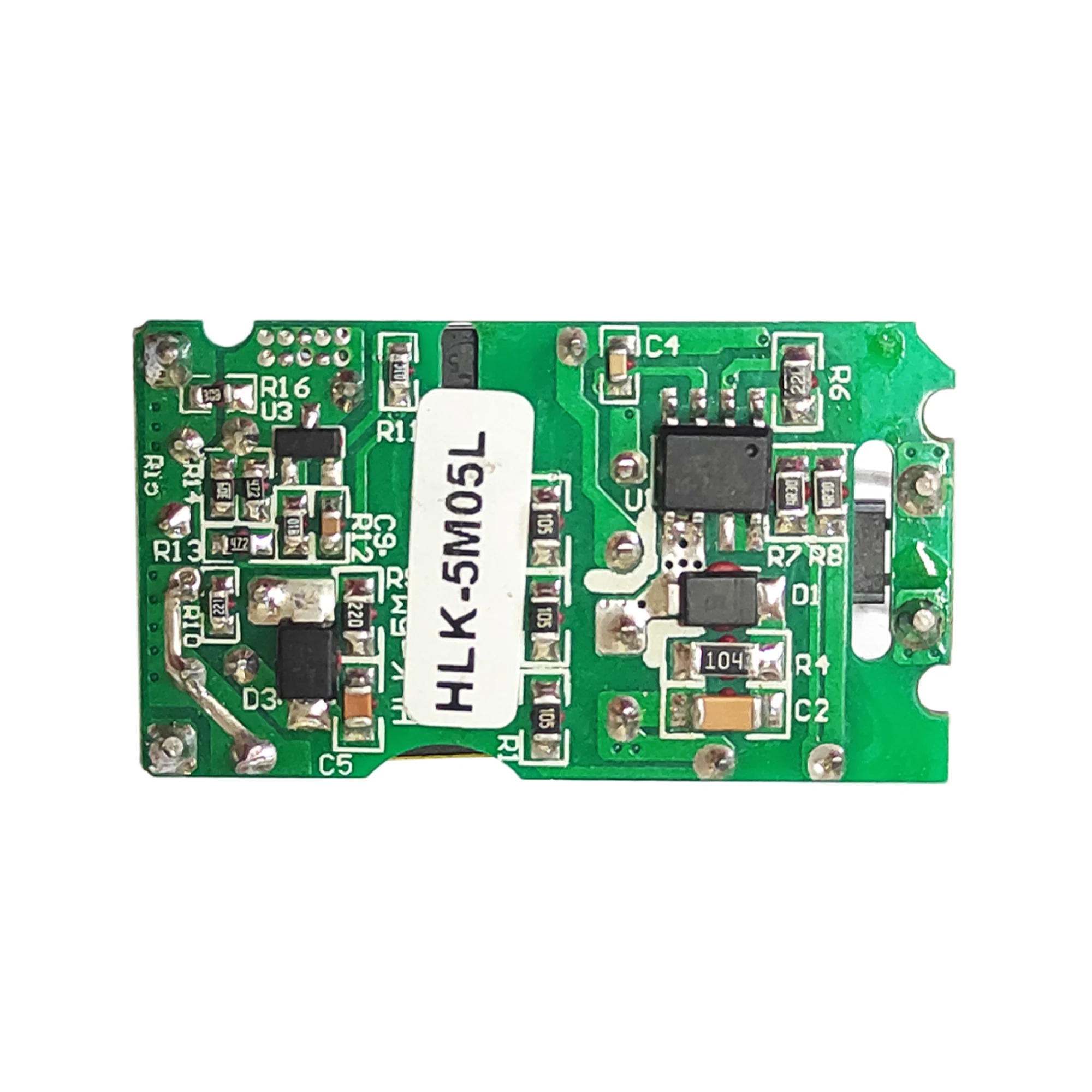

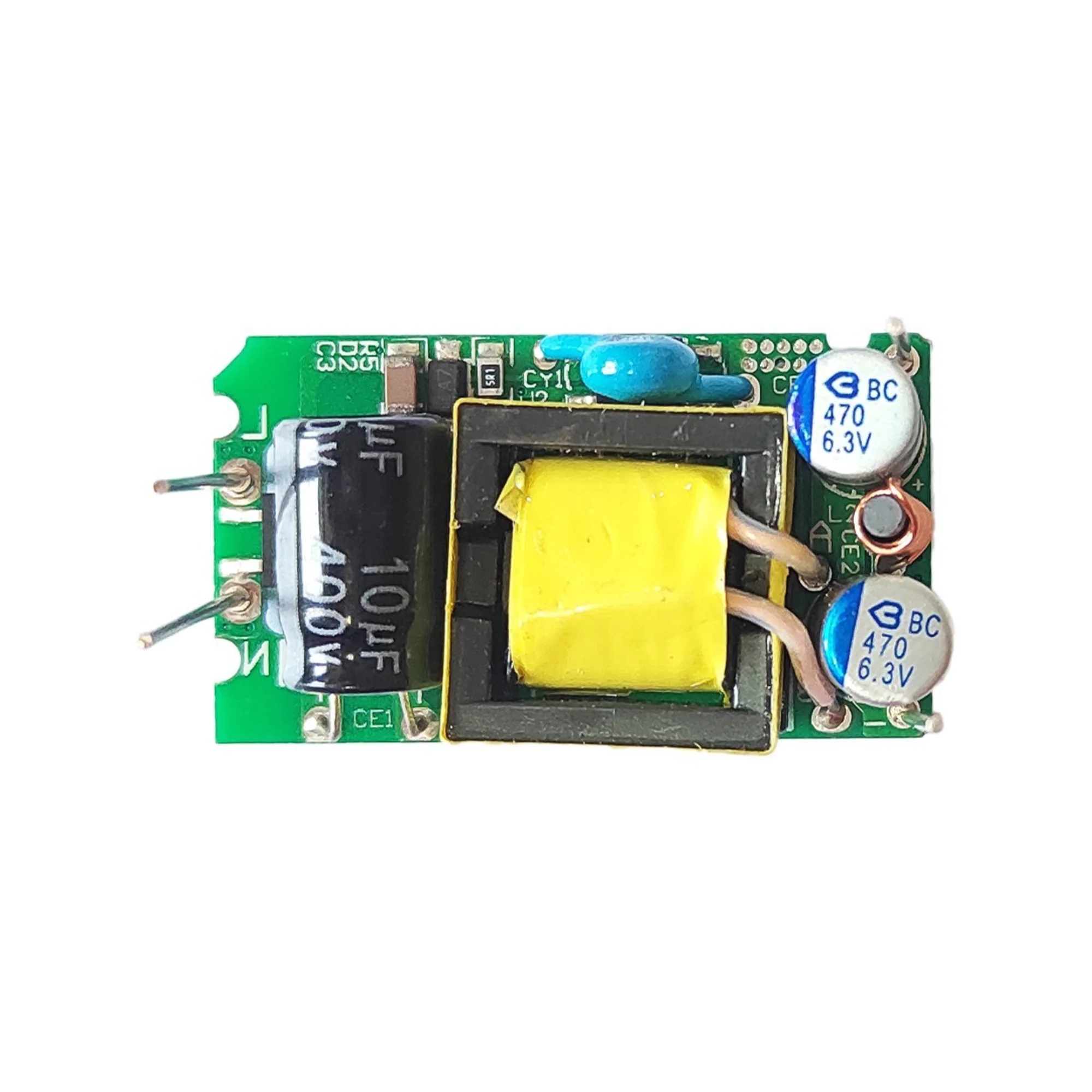

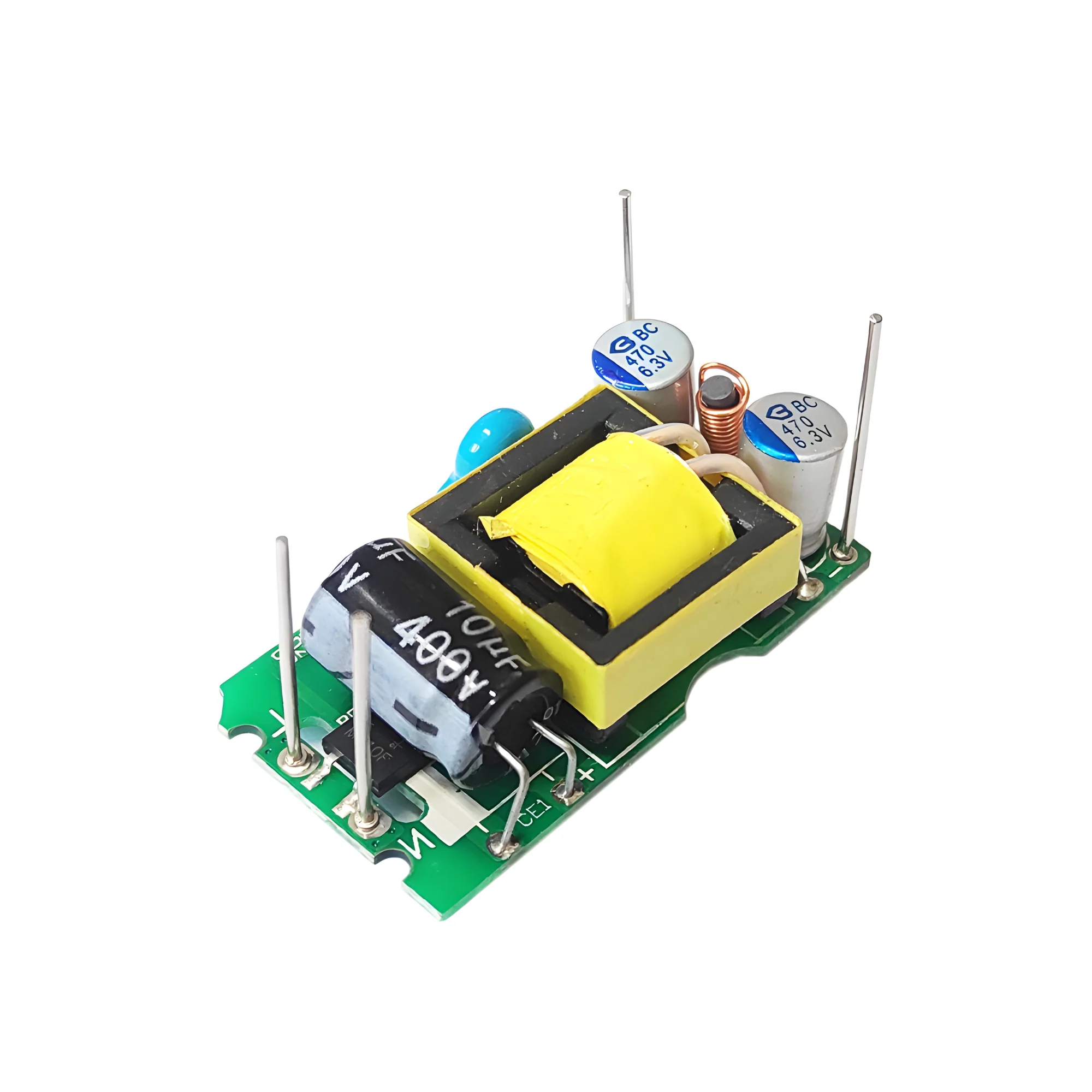

Hi-Link HLK-5M05L 230V AC To 5V DC 1A PCB Mount Open Frame Power Supply Module
Hi-Link HLK-5M05L 230V AC To 5V DC 1A PCB Mount Open Frame Power Supply Module
The HLK-5M05L is a compact open-frame AC to DC power supply module designed to convert mains AC voltage directly into a stable 5V DC output. It integrates a high-frequency transformer, rectification, filtering, and protection circuitry on a small PCB, making it suitable for embedded power applications where space efficiency and reliability are required. This open-type module is commonly used in industrial control boards, IoT devices, and low-power embedded systems.
Technical Specifications:
- Input voltage: 90–264V AC, 50/60 Hz
- Output voltage: 5V DC
- Output current: Up to 1A
- Output power: 5W
- Isolation: High isolation between input and output
- Efficiency: High efficiency, low power loss
- Operating temperature: –25°C to +60°C (typical)
- Mounting type: Through-hole, open-frame PCB
Features:
- Compact open-frame design for space-saving integration
- Wide AC input range suitable for global applications
- Stable and regulated 5V DC output
- Built-in isolation for improved safety
- Low ripple and noise performance
- Suitable for continuous operation in embedded systems
Applications:
- IoT and smart home devices
- Industrial control boards
- Embedded electronics projects
- Sensor and controller power supply
- Home automation systems
- Low-power AC to DC conversion needs
