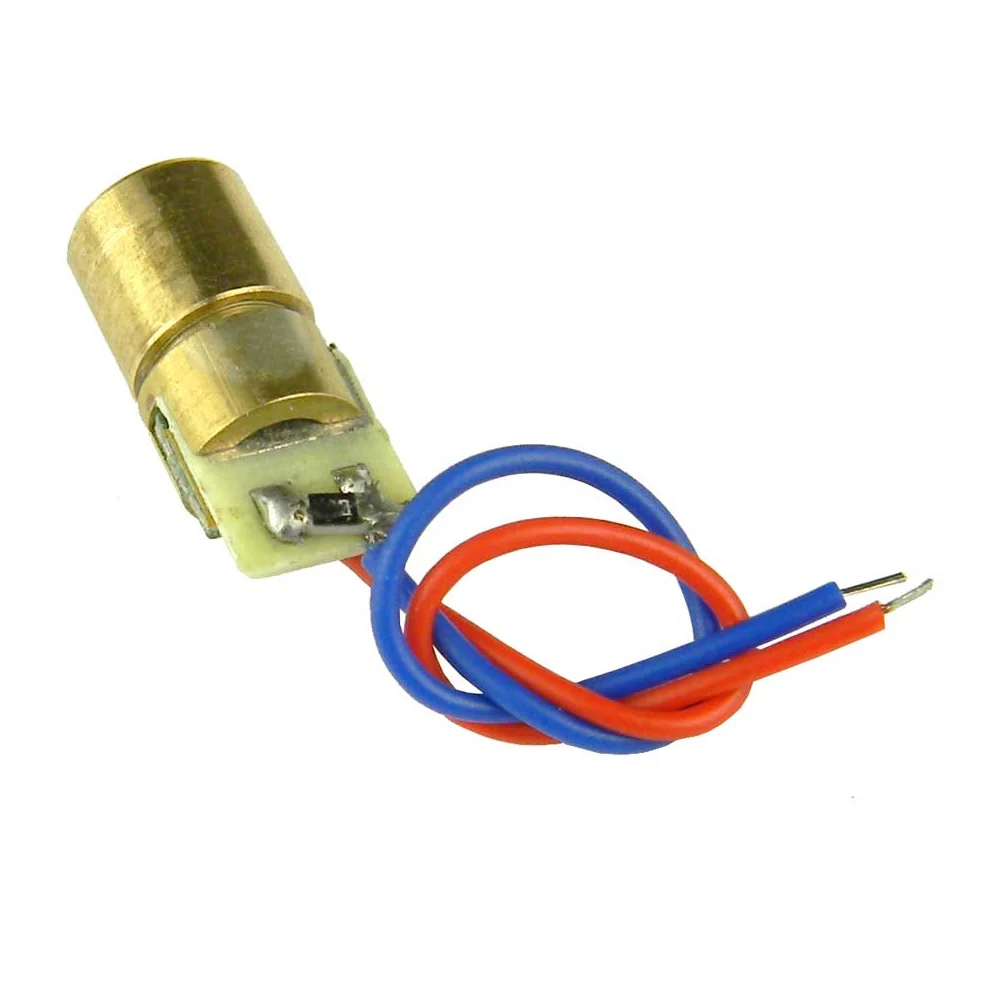

Mini Laser Dot Diode Module - 650nm 6mm 3VDC 5mW
Red Laser diode, this is a very small copper head with standard beam. It is suitable for 3V 5mW standard, with 6mm outside diameter, can be used to connect diode tubes for multiple uses.
Technical Specification:
- Output Power: 5mW
- Wavelength: 650nm
- Working Voltage: 3v - 5V
- Laser Shape & Colour: Red Dot
- Housing material: Copper
- Outer diameter: 6mmOperating Current: <40mA
- Size: 6mm*18mm (diameter*length)
Features:
- Small size
- Cost-effective
- Gives continuous output
- Nanometer Wavelength
Applications:
- Embedded Electronics project
- Laser harps
- Electronic 'trip wires'
- Laser-vision guidance
