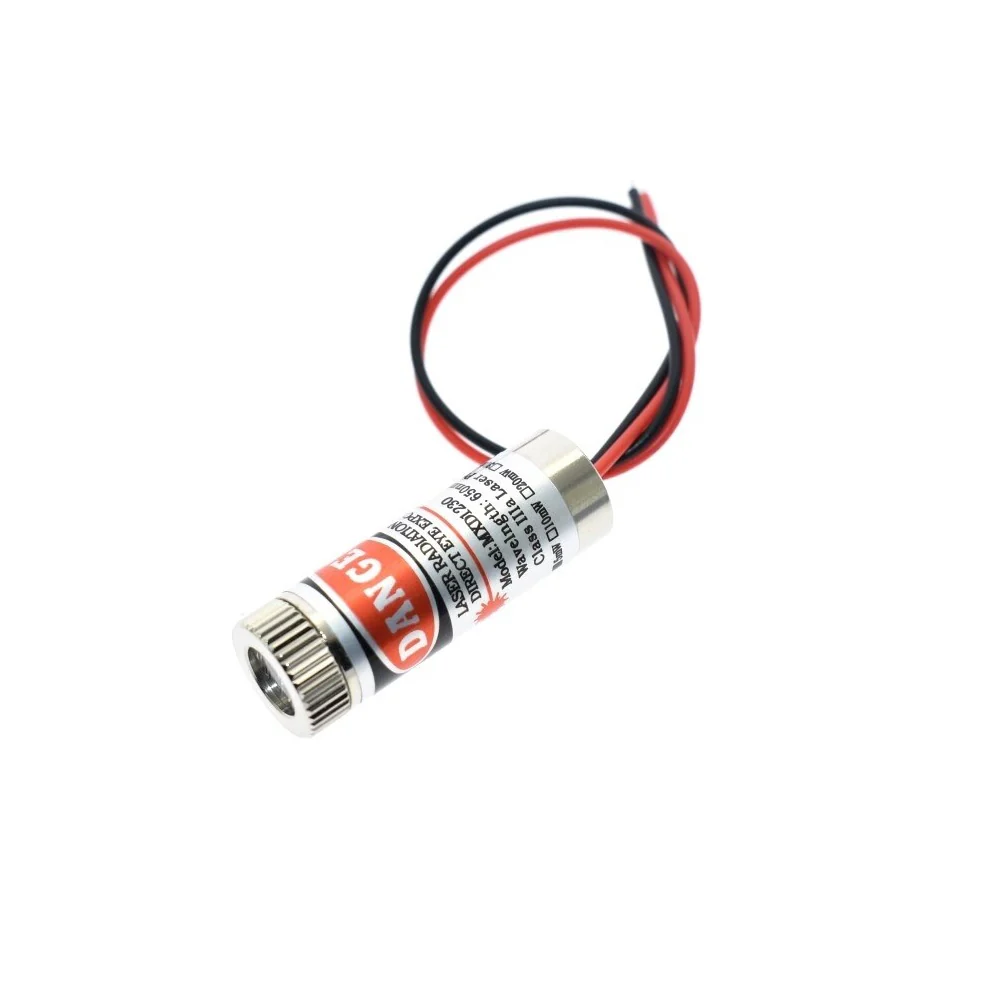

Red Line Laser Module 650nm 5mW
A very powerful 5mW red laser point. Fun, but don’t point in anyone’s eyes. These units have the power wired in such a way that the unit turns on when power is applied. Increase the current flow and things starts to get very bright. Focusing laser head 5mW Red dot industrial laser module built-in drive circuit can be directly powered for red laser pointer, laser flashlight, laser positioning, range finder, medical equipment, electronic production enthusiasts, etc.
Technical Specification:
- Optical Power: 5mW
- Wavelength: 650nm(red laser)
- Voltage DC: 3-5V
- Current: <40mA
- Beam Shape: line
- Emitting Angle: 120°
- Power Cord Length: 135mm(5.31")
- Lens Material: plastic
- Diameter: 12mm
- Length: 30mm
Features:
- Built in APC Driver
- LENS Adjustable by hand. No tools required
- Chrome Plated Brass Heat Sink Case
Applications
- CNC or Laser Engraver position identification
- Laser test tools
- Concentricity positioning
- Medical equipment positioning
- Production of signal equipment
- Use for DIY or robots
