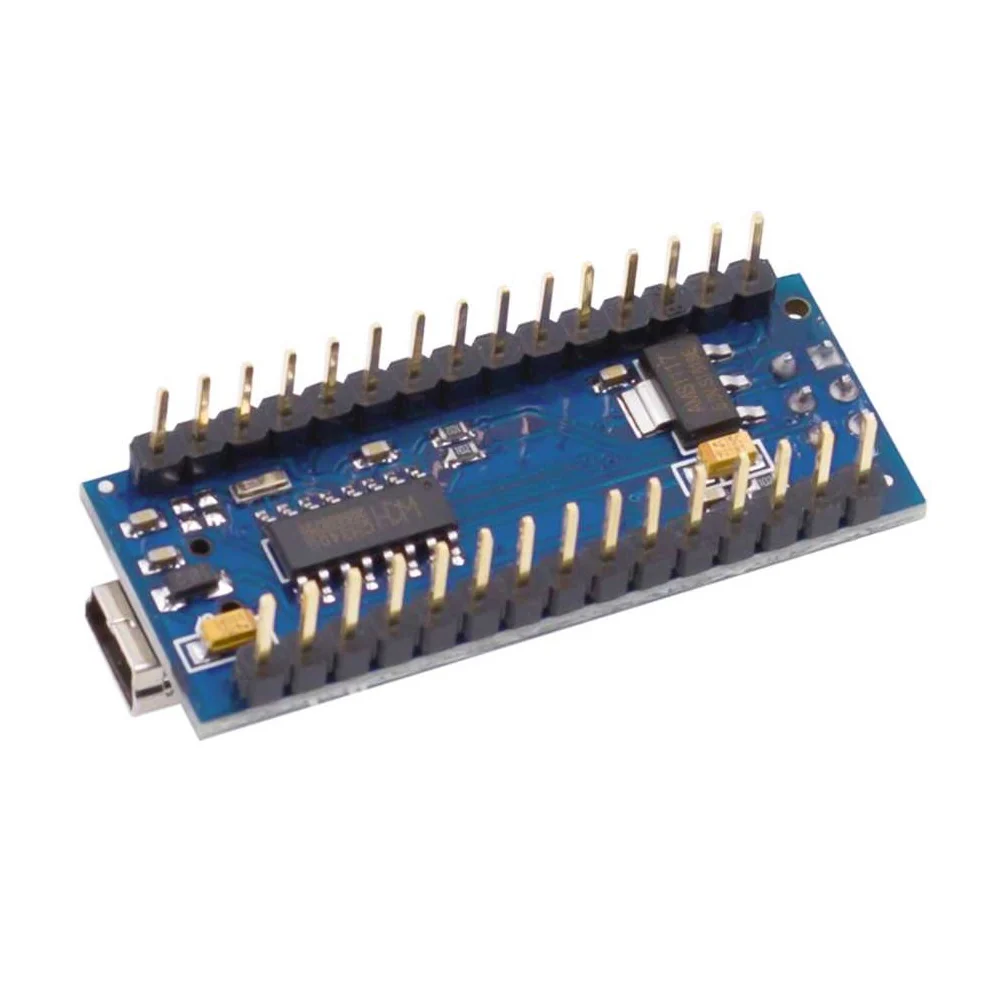

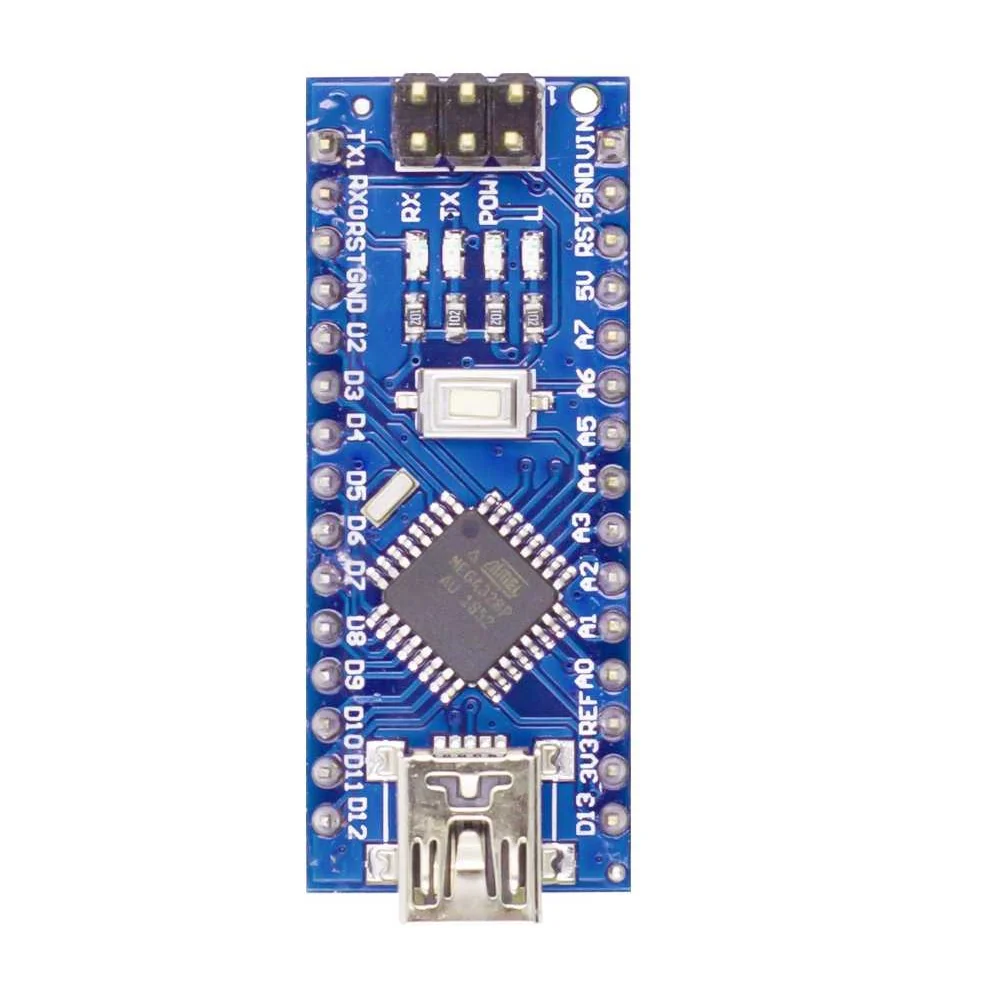

Nano CH340 Chip Board without USB cable compatible with Arduino
The Viduino Nano CH340G without USB Cable chipboard is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint.
The Nano board compatible with arduino equips a low-cost USB-Serial Chip that makes it reliable and suitable for projects based around arduino. The Nano microcontroller board is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3).
The CH340 Nano microcontroller board can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
Technical Specification:
- Model Type: Nano
- Color: Blue
- Microcontroller: ATmega328
- Operating Voltage: 5 V
- Input Voltage (Recommended): 7-12 V
- Power Consumption: 19 mA
- Analog I/O Pins: 8
- Digital I/O Pins: 22
- PWM Output Pins: 6
- Architecture: AVR
- Clock Speed: 16 MHz
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB of which 2 KB used by bootloader
- EEPROM: 1KB
- SRAM: 2KB
- Dimensions (mm) LxWxH: 45x18x5
- Weight (gm): 8
Features:
- Operating Voltage (logic level): 5V
- 8 analog inputs ports: A0 ~ A7
- 14 Digital input / output ports: TX, RX, D2 ~ D13
- 1 pair of TTL level serial transceiver ports RX / TX
- Using Atmel Atmega328P-AU MCU
- There is a bootloader installed in it
- Standard 0.1” spacing DIP (breadboard friendly).
- Manual reset switch.
Pin Description:
Applications:
- Samples of electronic systems & products
- Medical Instruments
- Industrial Automation
- Android Applications
- GSM Based Projects
- Embedded Systems
- Automation and Robotics
- Home Automation and Defence Systems
- Virtual Reality Applications
