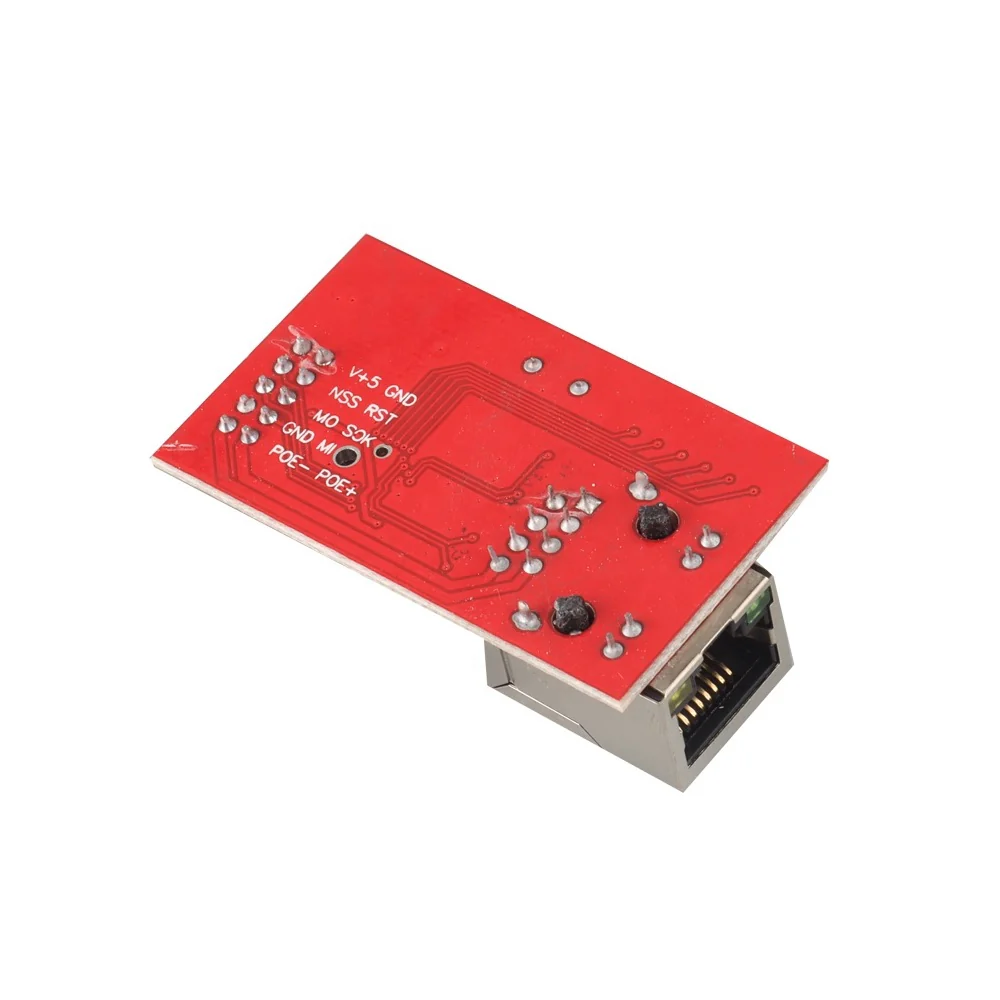

W5100 Ethernet Module Ethernet Network Module for arduino
The W5100 Ethernet Module has been designed to facilitate easy implementation of Internet connectivity without OS. W5100 is IEEE 802.3 17 BASE-T and 802.3u 10 BASE-TX compliant.
Technical Specification:
- Operation voltage: 3.3V
- Internal Memory: 16Kbytes
- I/O signal tolerance: 5V
- Operation temperature: 0 ~ 70℃
- Size: 54mm*31mm*18mm (L*W*H)
Features:
- Support Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
- 10BaseT/100BaseTX Ethernet PHY embedded
- Support Auto Negotiation (Full-duplex and half duplex)
- Support Auto MDI/MDIX
- Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode)
- Supports 4 independent sockets simultaneously
Applications:
- Security Systems: DVRs, Network Cameras, Kiosks
- Factory and Building Automations
- Medical Monitoring Equipments
- Embedded Servers
- Embedded applications
