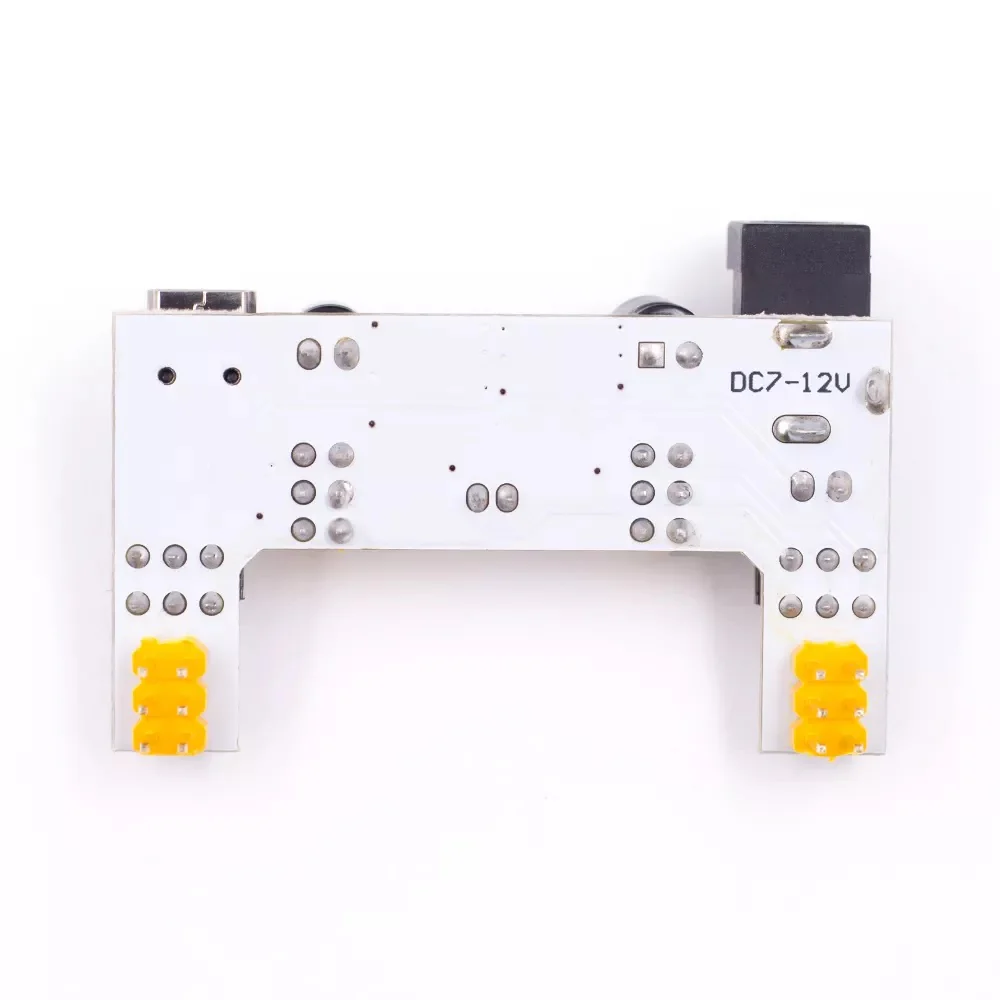

This Small and compact XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module can make your project easy and portable and you will not need to carry bulky power supplies with you. The module comes with a series diode, polarity reversal protection. The two-channel module can take DC 7V to 12V input through DC (Black ) Jack and can produce 3.3V and +5V on each separate channels.

The module is having onboard Mini USB port to take input to the module. It also has an indicator LED to show power On/Off status and Voltage switching (between 3.3v or 5V ) button for switching the output voltage on the breadboard on both channels. It is a must-have product in your DIY kit for experimenters those have to test/prototype electronic circuits on a breadboard .This is a power supply module for the standard breadboard. Its concave design will not waste your proto zone.

This breadboard power shield supports Mini USB power supply and power jack 7-12V supply. There are two independent power optional: 5V/3.3V. With this board, you can send power to both power lane of the breadboard, and each side has an on/off switch.

Technical Specification:

• Input Voltage Range: 6.5V – 12V
• Output Voltage(V): 3.3/5 Adjustable
• Size: 53mm*36mm*14mm(L*W*H)

Features:

• Locking On/Off Switch
• Green LED Power Indicator
• Voltage Swapping Switch on both rail Channel
• Its concave design will not waste your proto zone
• Easy to install on a breadboard with Compact portable size

Applications:

• DIY projects
