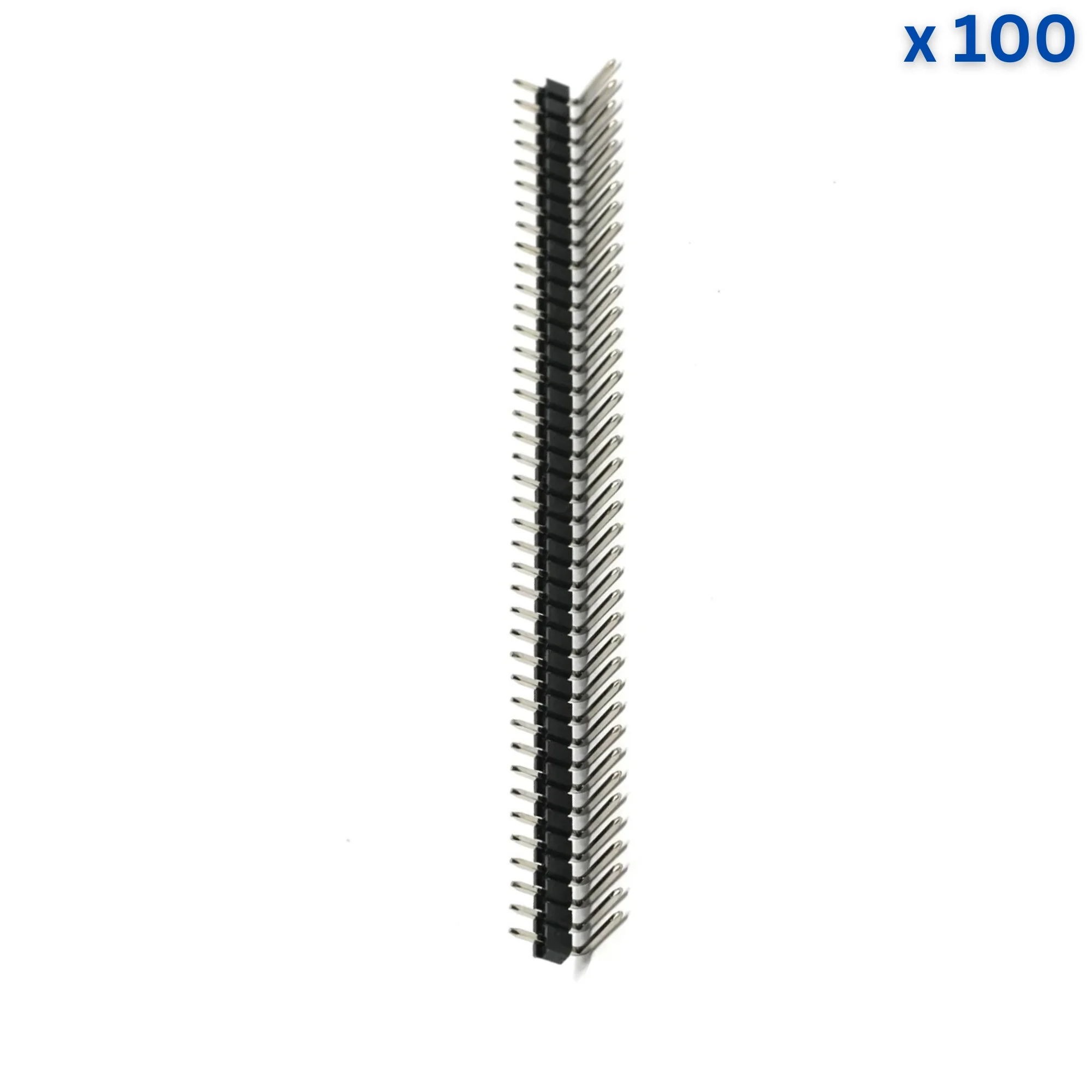

The 40×1 10 mm 2.54 mm Pitch Right Angle Male Pin Header is a single-row, right-angle through-hole connector designed for horizontal PCB connections. With a standard 2.54 mm pitch and sturdy metal pins, it provides reliable electrical and mechanical performance. This header is ideal for compact designs where vertical clearance is limited and side-entry connections are required.

Technical Specifications:

• Product Type: Right Angle Male Pin Header

• Pin Configuration: 1 × 40

• Pitch: 2.54 mm (0.1 inch)

• Pin Length: ~10 mm

• Orientation: Right Angle (90°)

• Mounting Type: Through-Hole (THT)

• Contact Material: Copper alloy

• Contact Plating: Tin or nickel plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C

• Cuttable: Yes (can be cut to required pin count)

Features:

• Standard 2.54 mm pitch for wide compatibility

• Right-angle design for low-profile and side-mount applications

• Strong and durable pins for secure solder joints

• Compatible with breadboards, jumper wires, and female headers

• Easily customizable by cutting to length

Applications:

• Arduino, Raspberry Pi, ESP32, and other development boards

• Embedded systems and IoT hardware

• Module-to-PCB and board-to-board connections

• Prototyping, testing, and educational electronics projects

• Consumer and industrial electronic assemblies
