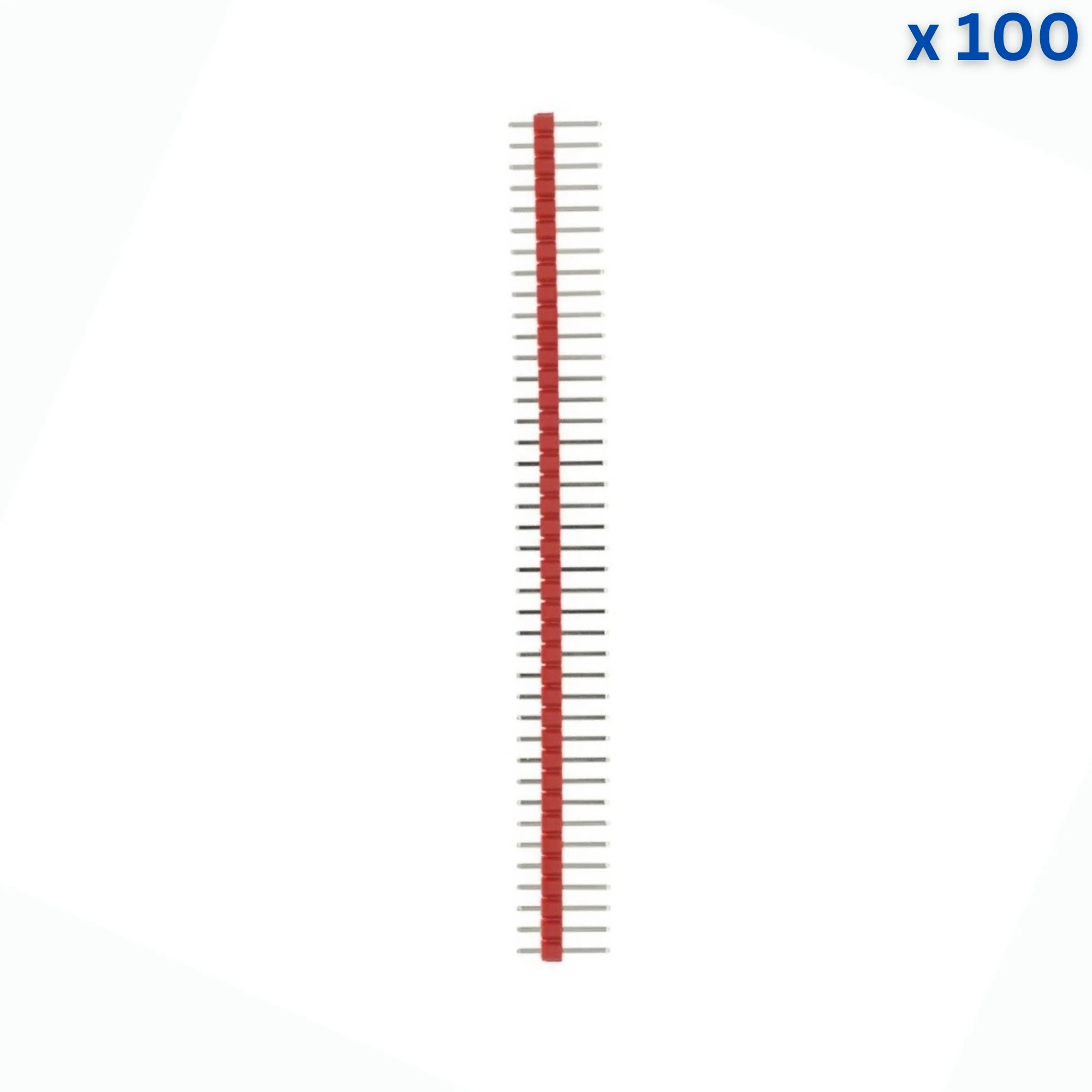

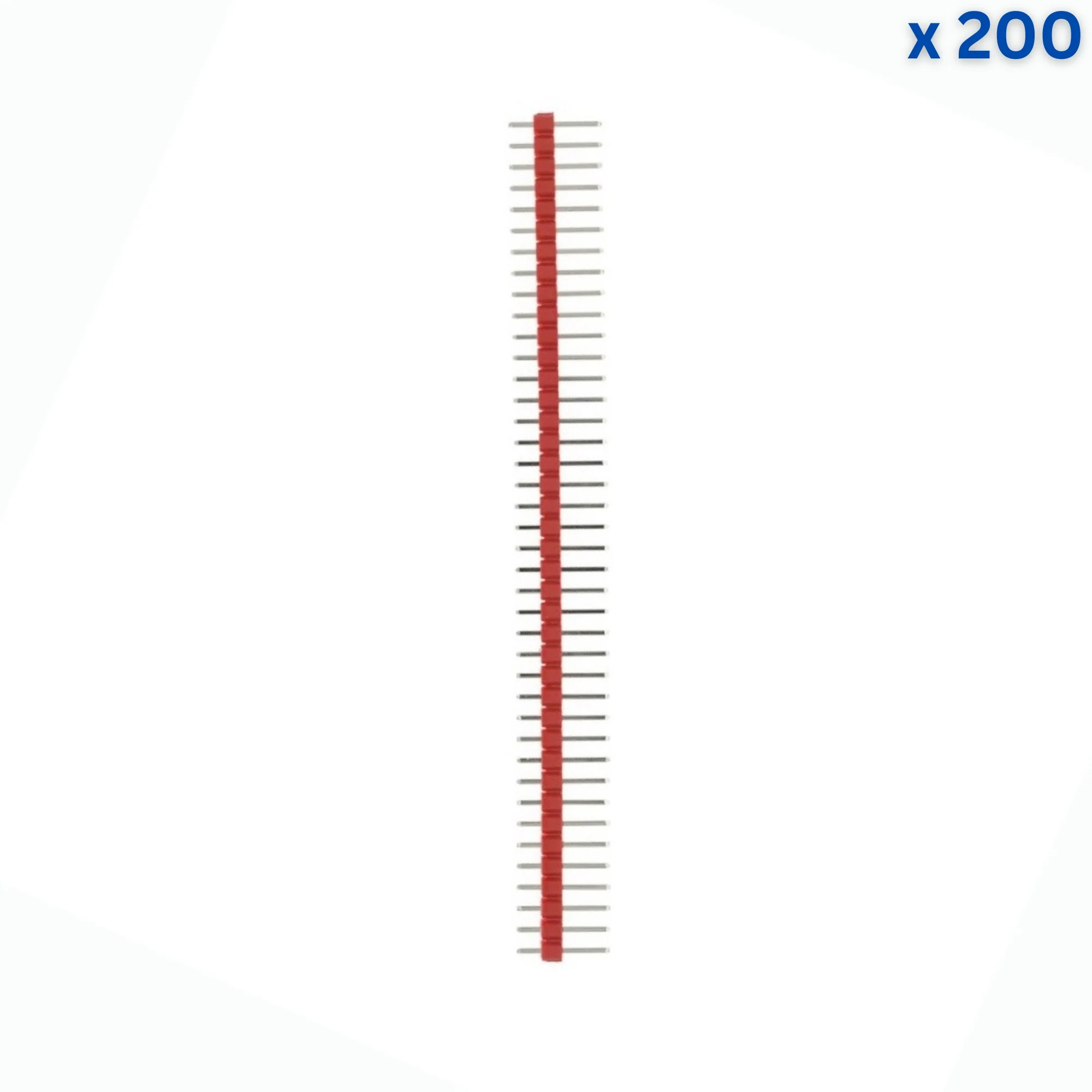

40X1 10mm 2.54mm Male Pin Header - Red

The 40×1 10 mm 2.54 mm Male Pin Header – Red is a single-row, straight through-hole connector designed for reliable PCB interconnections with clear visual identification. Featuring a standard 2.54 mm pitch and 10 mm pin length, this header is ideal for prototyping, signal routing, and power connections. The red insulating body helps with pin grouping, polarity indication, or functional differentiation in complex circuits.

Technical Specifications:

• Product Type: Male Pin Header
• Configuration: 1 × 40 pins
• Pitch: 2.54 mm (0.1 inch)
• Pin Length: ~10 mm
• Mounting Type: Through-Hole (THT)
• Orientation: Straight / Vertical
• Contact Material: Copper alloy
• Contact Plating: Tin-plated (typical)
• Insulator Material: Red thermoplastic
• Rated Current: ~1–3 A per pin (typical)
• Rated Voltage: Up to 250 V (typical)
• Operating Temperature: −40 °C to +105 °C
• Cuttable: Yes, can be broken to required pin count

Features:

• Standard 2.54 mm pitch for wide compatibility
• Red color housing for easy identification and organization
• Straight pin design for stable through-hole soldering
• Durable contacts for consistent electrical performance
• Easily customizable length for flexible PCB layouts
• Suitable for manual and wave soldering processes

Applications:

• Arduino, ESP32, Raspberry Pi, and compatible boards
• Prototyping and breadboard-to-PCB transitions
• Signal headers and power distribution pins
• Educational electronics projects
• Embedded systems and general-purpose PCB designs
