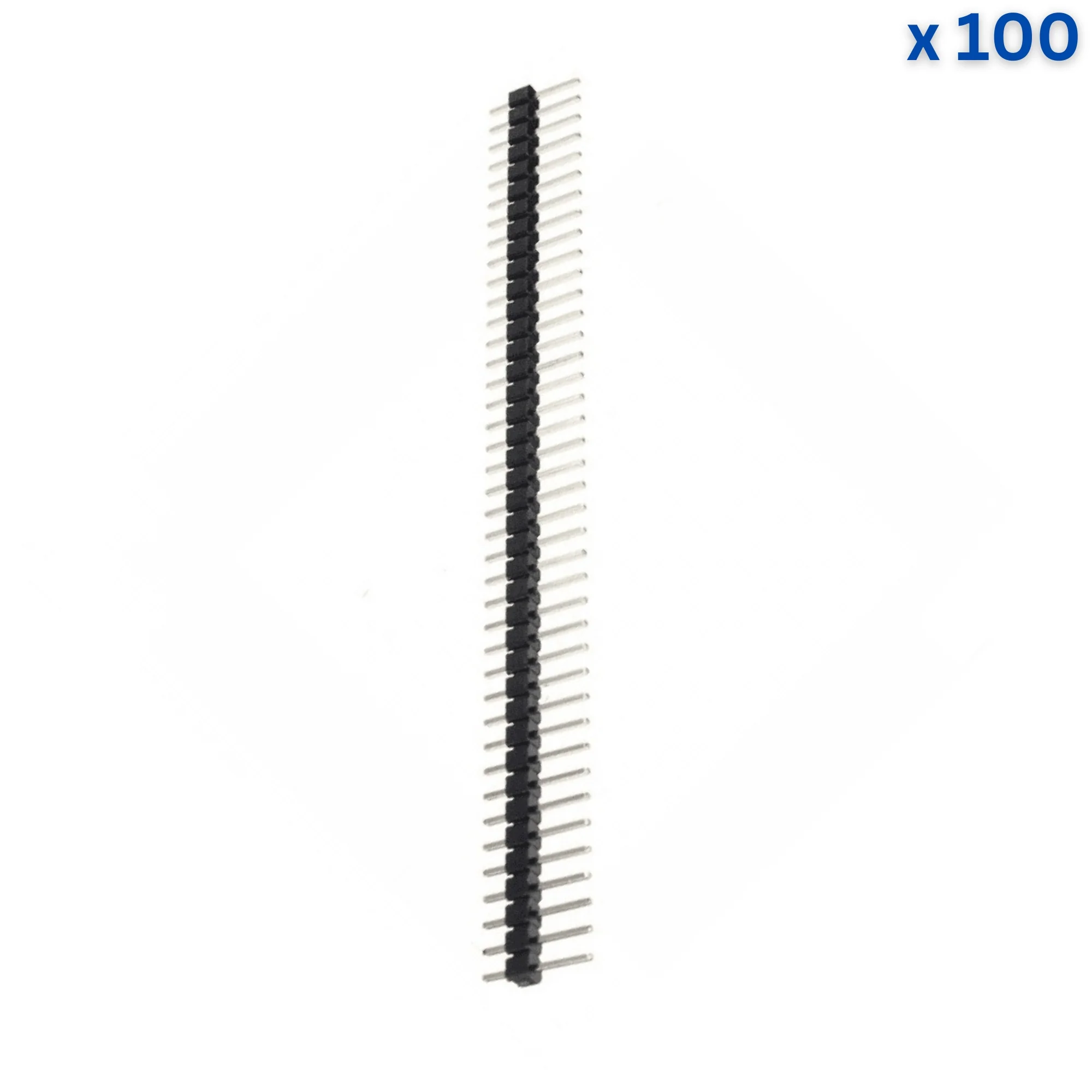

40x1 10mm 2.54mm Male Pin Header
40x1 10mm 2.54mm Male Pin Header
The 40×1 10 mm 2.54 mm Male Pin Header is a single-row, straight through-hole connector widely used in electronics prototyping and PCB assembly. With a standard 2.54 mm (0.1") pitch and a black insulating body, it is fully compatible with breadboards, development boards, and most standard PCB layouts. The 10 mm pin length provides a secure mechanical fit and reliable solder joints.
Technical Specifications:
- Product Type: Male Pin Header
- Configuration: 1 × 40 pins
- Pitch: 2.54 mm (0.1 inch)
- Pin Length: ~10 mm
- Mounting Type: Through-Hole (THT)
- Orientation: Straight / Vertical
- Contact Material: Copper alloy
- Contact Plating: Tin-plated (typical)
- Insulator Material: Black thermoplastic
- Rated Current: Approx. 1–3 A per pin (typical)
- Rated Voltage: Up to 250 V (typical)
- Operating Temperature: −40 °C to +105 °C
- Customizable Length: Yes, can be snapped to required pin count
Features:
- Standard 2.54 mm pitch for universal compatibility
- Straight pins for stable and easy soldering
- Durable black plastic housing
- Reliable electrical conductivity
- Break-away design for flexible pin counts
Applications:
- Breadboards and prototype PCBs
- Arduino, Raspberry Pi, ESP, and similar boards
- Signal, power, and ground connections
- Educational electronics projects
- General-purpose PCB interconnections
