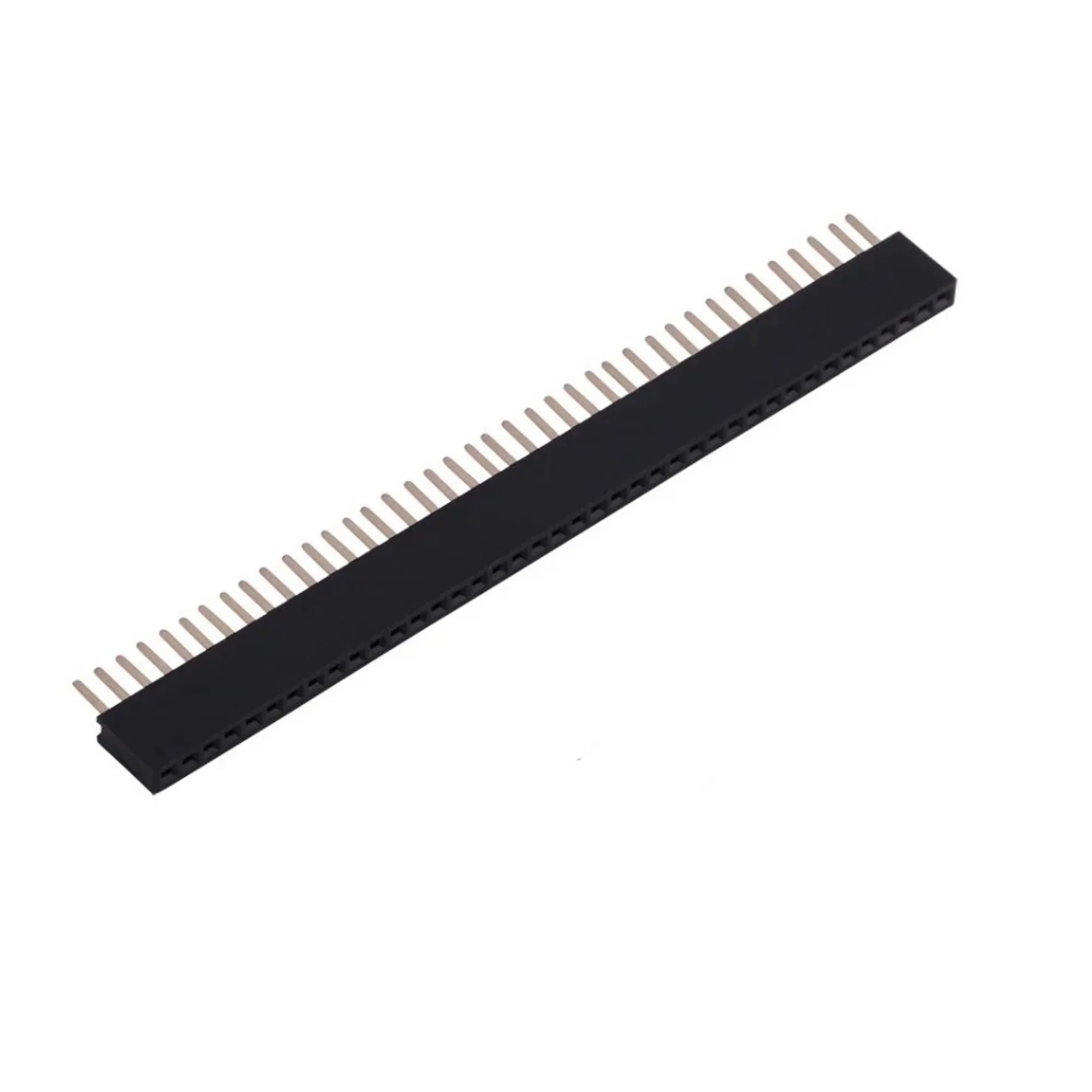

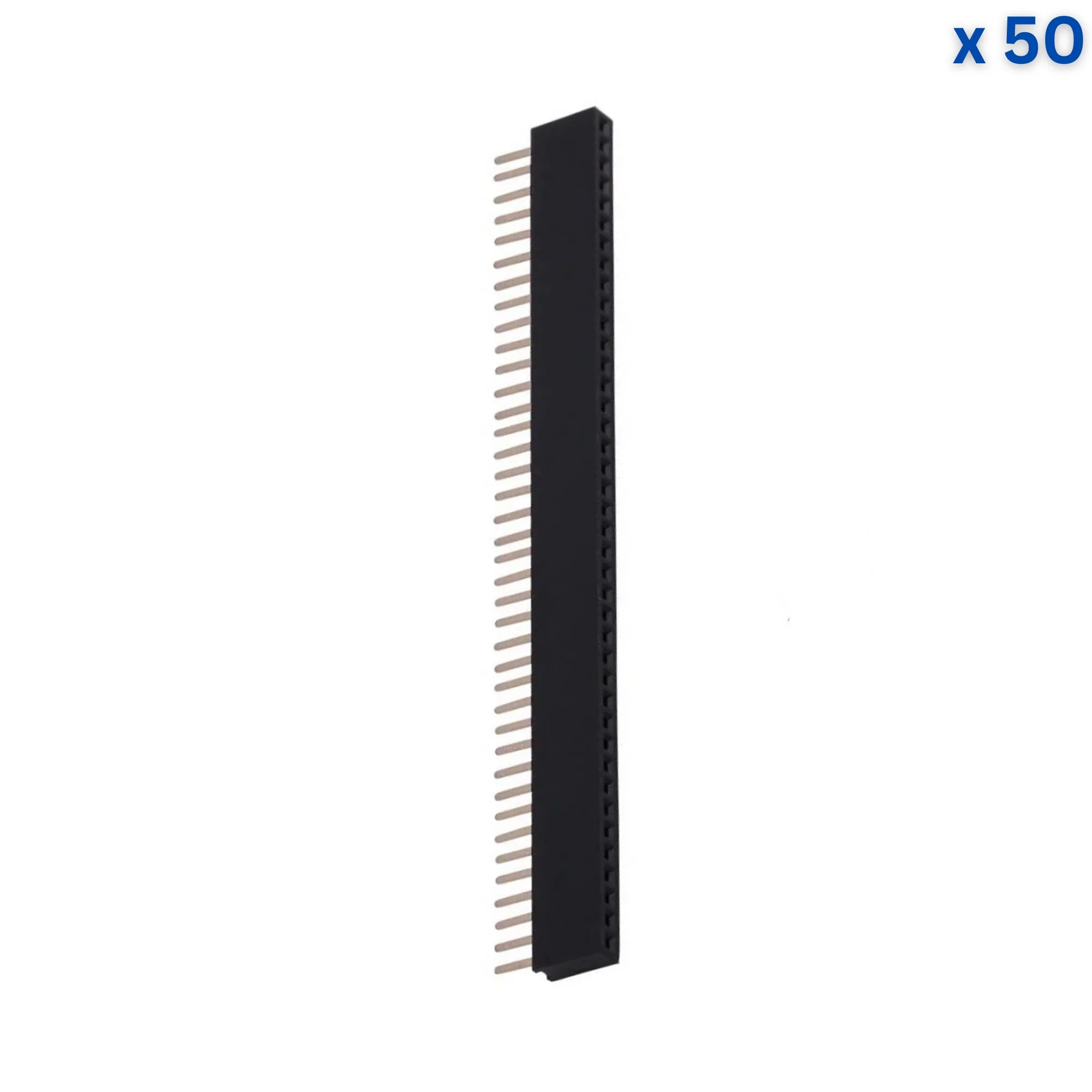

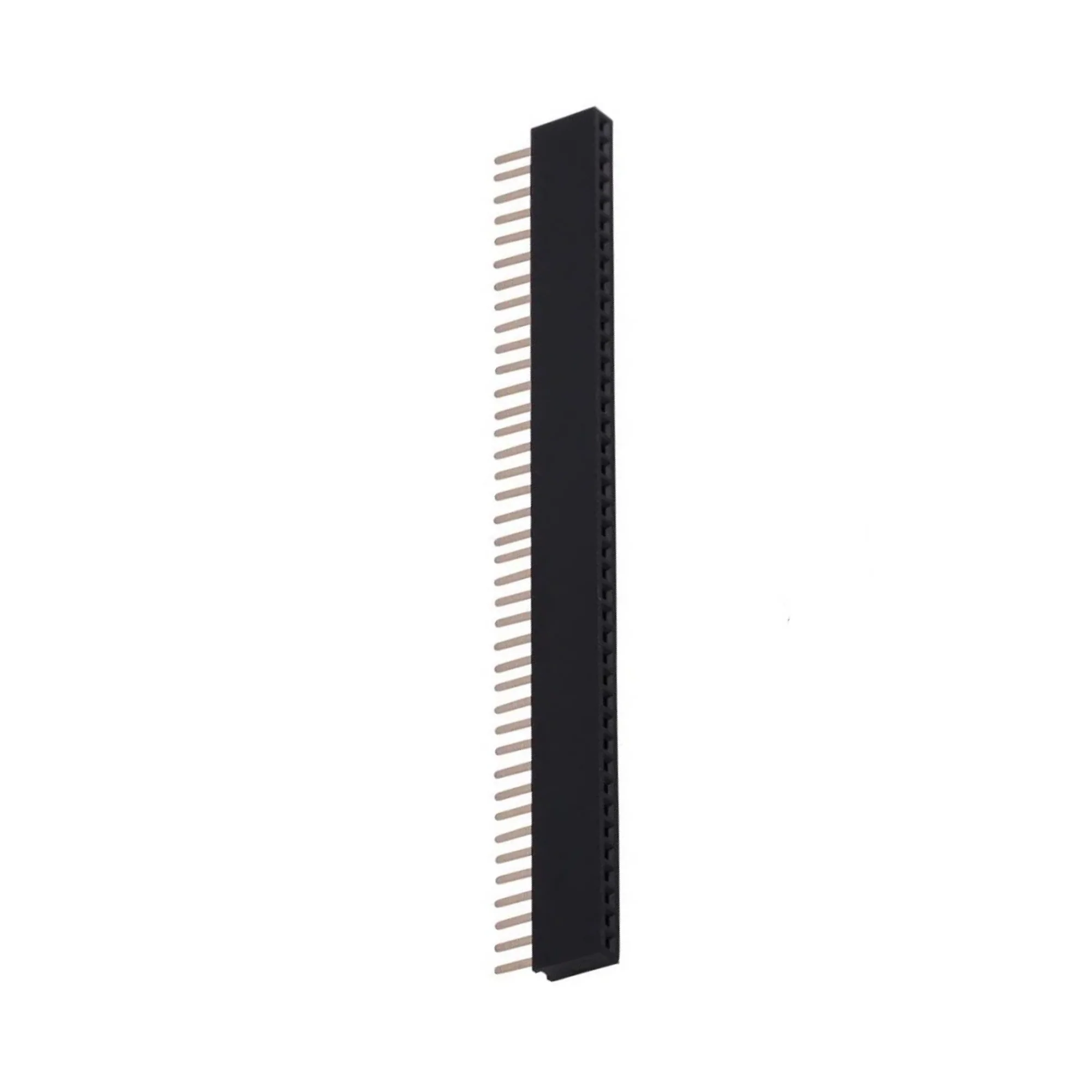

The 40×1 23 mm 2.54 mm Pitch Female Pin Header is a single-row through-hole connector designed to provide reliable socket connections on PCBs. With a standard 2.54 mm (0.1″) pitch and extended 23 mm body height, it is ideal for stacking boards, vertical connections, and applications requiring extra clearance between PCBs or modules.

Technical Specification:

• Product Type: Female Pin Header

• Configuration: 1 × 40 pins

• Pitch: 2.54 mm (0.1 inch)

• Body Height: ~23 mm

• Mounting Type: Through-hole (THT)

• Pin Orientation: Straight (Vertical)

• Contact Material: Copper alloy

• Contact Plating: Tin or gold plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required length

Features:

• Standard 2.54 mm pitch for wide compatibility

• Extra-long 23 mm body for board stacking and spacing

• Strong and reliable female socket contact

• Easy through-hole soldering

• Customizable length by cutting

• Compatible with standard male pin headers

Applications

• Arduino, ESP32, Raspberry Pi, and development boards

• PCB stacking and expansion headers

• Prototyping and testing boards

• Embedded systems and IoT hardware

• Industrial and consumer electronics assemblies
