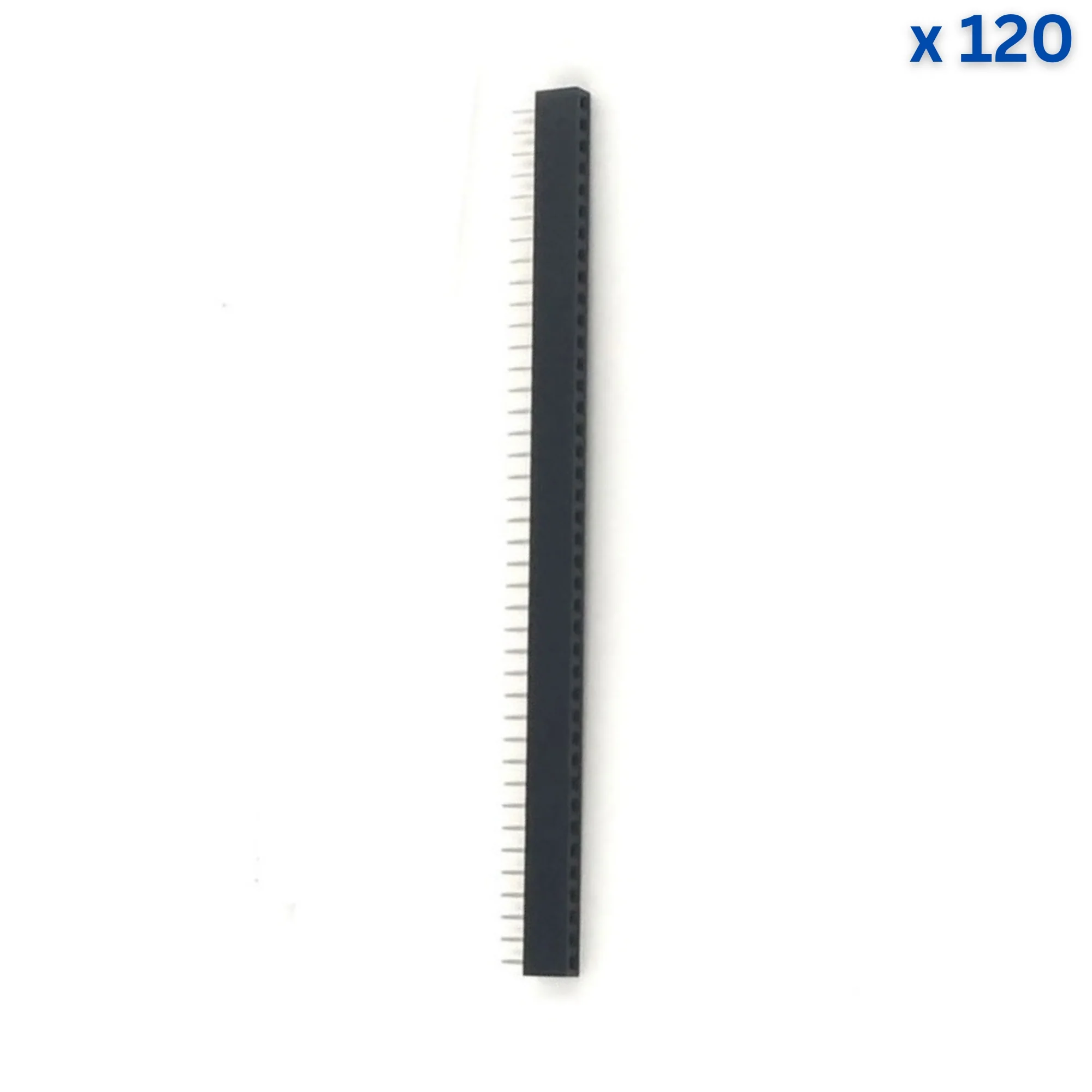

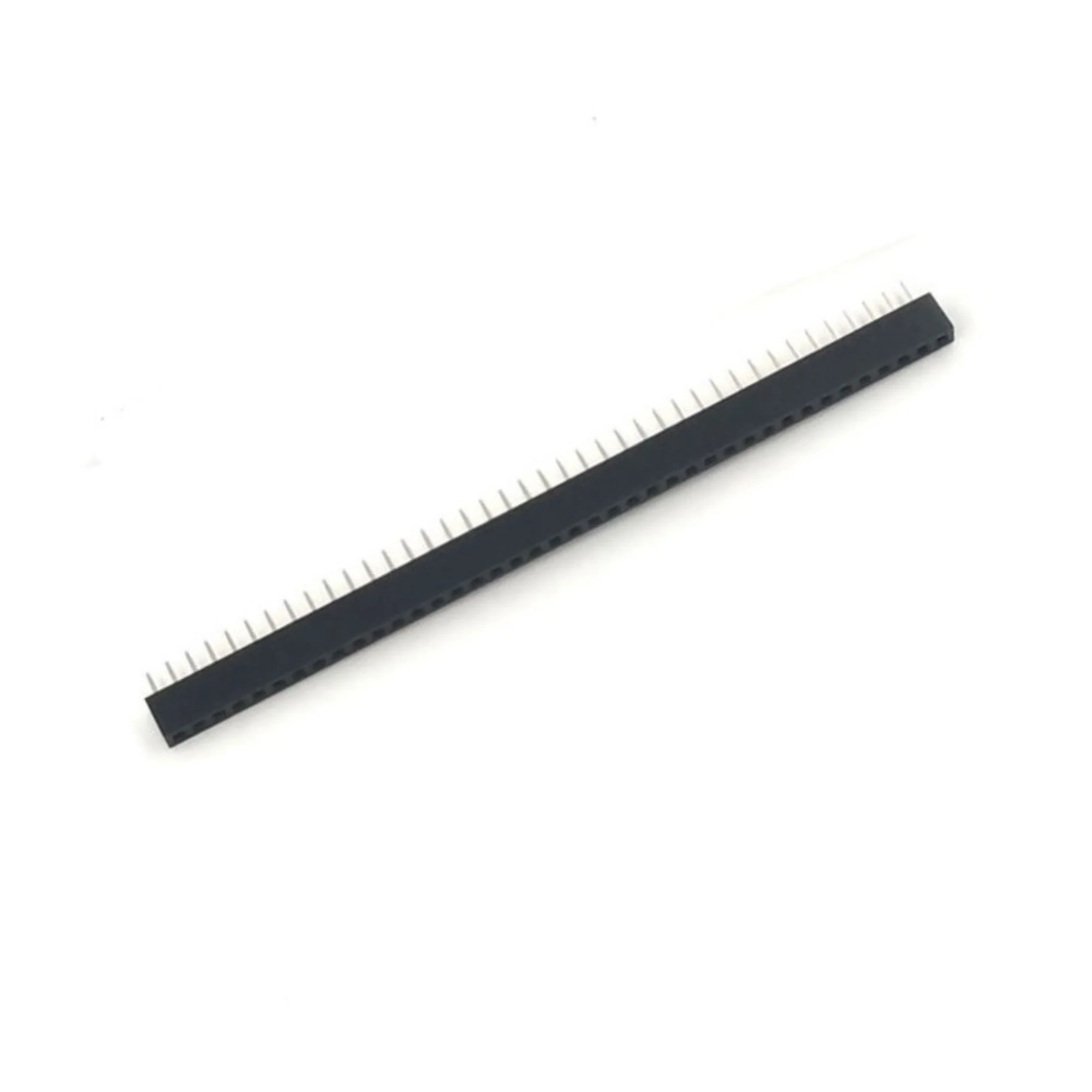

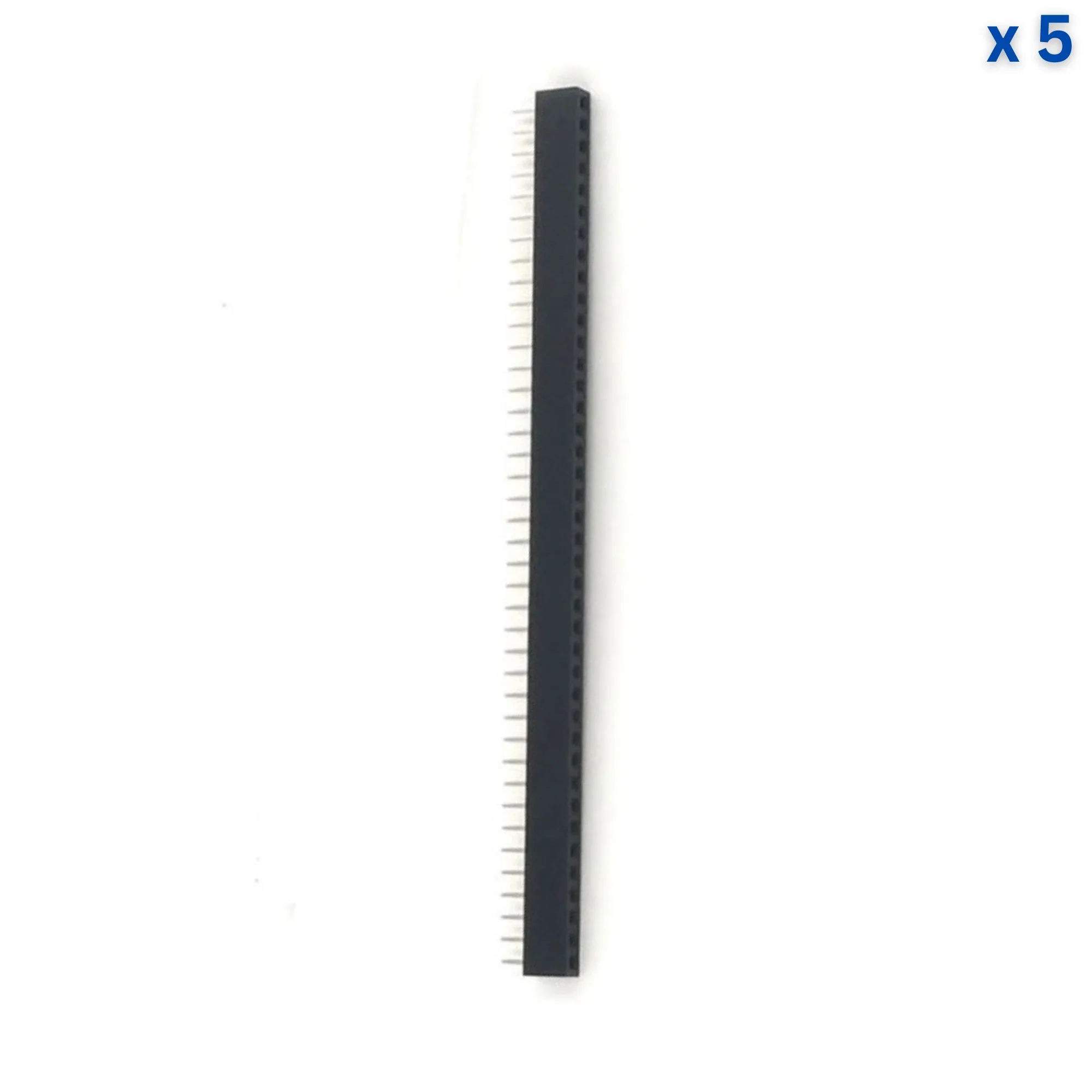

40x1 2mm Female Pin Header

The 40×1 2.0 mm Pitch Flow Solder Strip (Female Pin Header) is a single-row through-hole connector designed for compact PCB layouts requiring finer pin spacing than the standard 2.54 mm. With a 2.0 mm pitch and straight orientation, this header is well suited for flow soldering and wave soldering processes, ensuring strong and reliable solder joints in mass production and prototyping applications.

Technical Specifications:

• Product Type: Flow Solder Female Pin Header

• Pin Configuration: 1 × 40

• Pitch: 2.0 mm

• Mounting Type: Through-Hole (THT)

• Orientation: Straight / Vertical

• Contact Type: Female socket

• Contact Material: Copper alloy

• Contact Plating: Tin-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin (typical)

• Rated Voltage: Up to 200 V (typical)

• Operating Temperature: −40 °C to +105 °C

• Soldering Method: Flow solder / wave solder compatible

• Cuttable: Yes (can be cut to required pin count)

Features:

• Compact 2.0 mm pitch for high-density PCB designs

• Optimized for flow and wave soldering processes

• Strong insulation body for mechanical stability

• Reliable electrical contact with mating male headers

• Easily customizable length by cutting

Applications:

• Compact development boards and modules

• Embedded systems with space constraints

• Board-to-board and module interconnections

• Consumer electronics and industrial PCBs

• Prototyping and small-to-medium scale production
