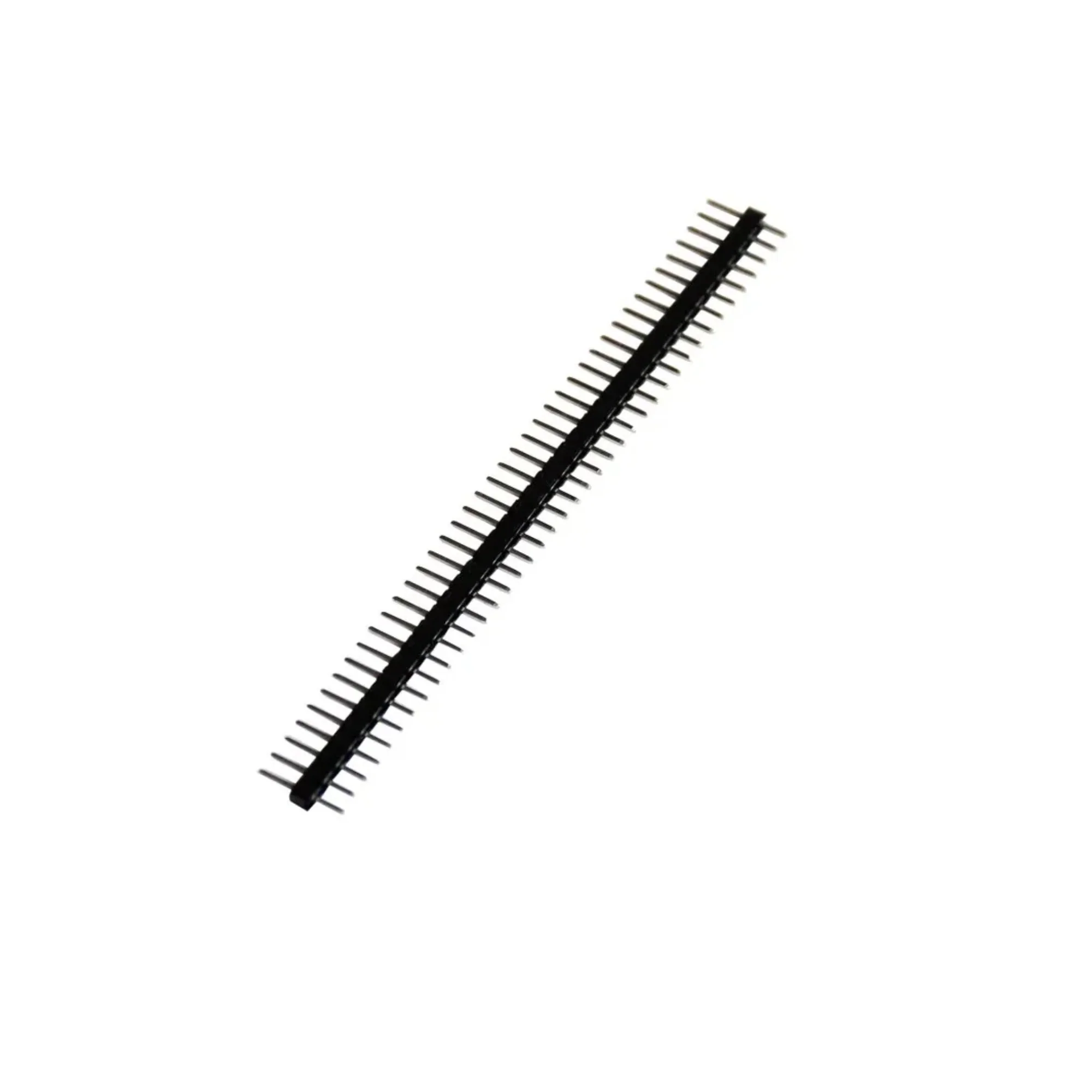

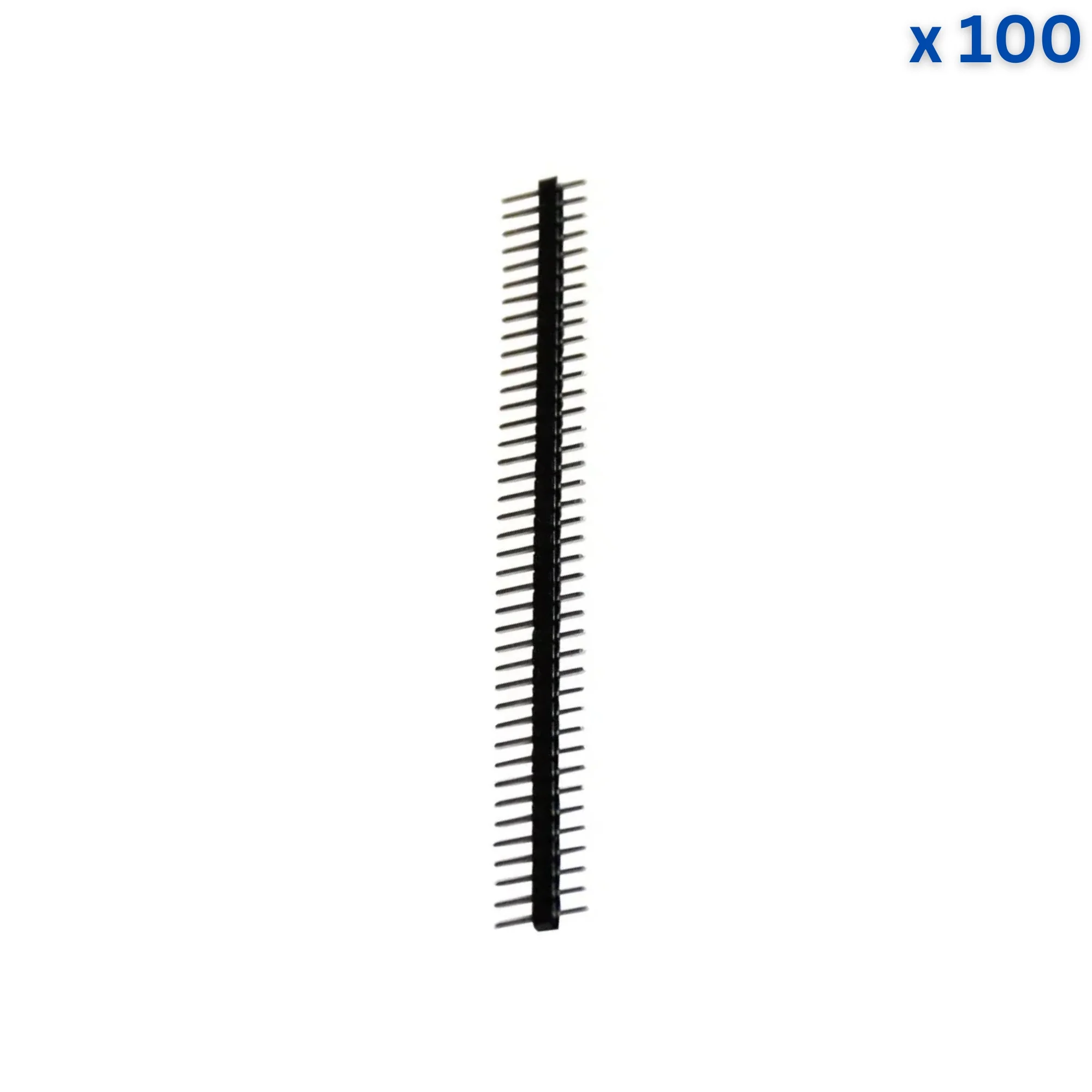

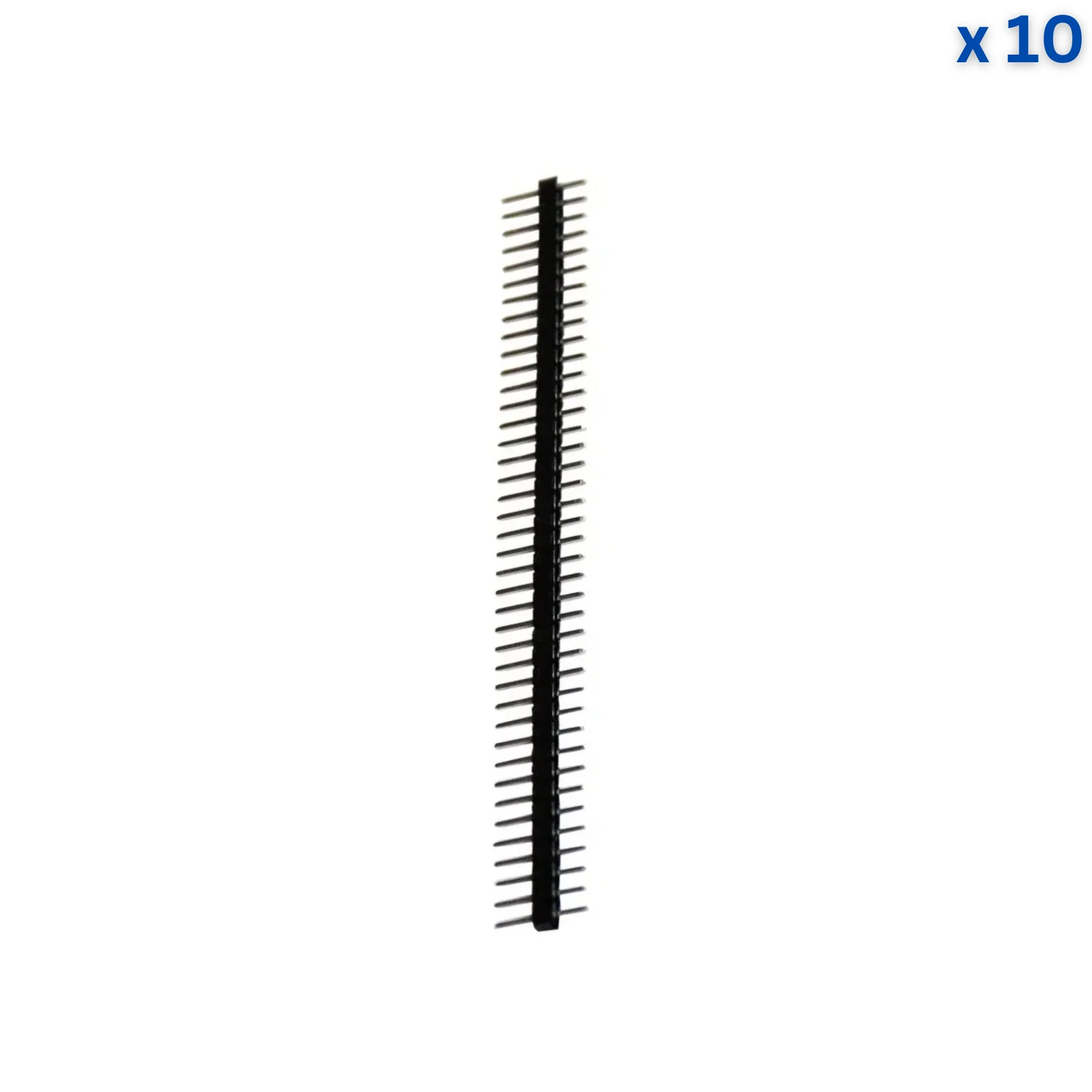

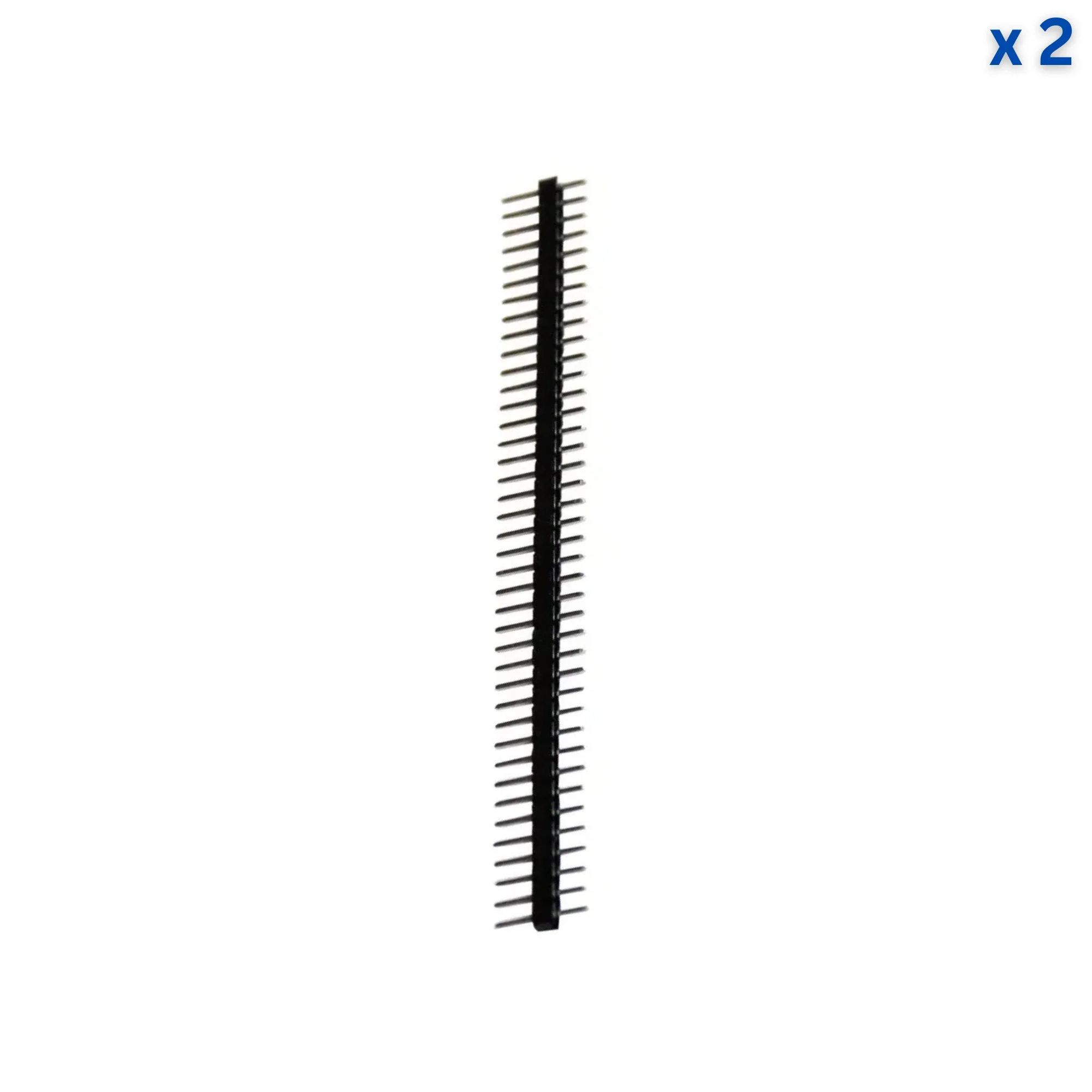

40×1 SMT Male Pin Header

The 40×1 SMT Male Strip is a single-row, surface-mount male pin header designed for compact and low-profile PCB assemblies. It provides a standard 2.54 mm pin spacing, making it fully compatible with common development boards, breakout modules, and prototyping systems. This header is ideal for applications requiring reliable electrical connections while supporting automated SMT assembly processes.

Technical Specification:

• Product Type: SMT Male Pin Header
• Configuration: 1 × 40 pins
• Pitch: 2.54 mm (0.1 inch)
• Mounting Type: Surface Mount Technology (SMT)
• Pin Orientation: Straight
• Contact Material: Copper alloy
• Contact Plating: Tin-plated (typical)
• Insulator Material: Black thermoplastic
• Rated Current: ~1 A per pin
• Rated Voltage: Up to 250 V (typical)
• Operating Temperature: −40 °C to +105 °C (typical)
• Cuttable: Yes (can be cut to required pin count)

Features:

• Standard 2.54 mm pitch for broad compatibility
• Surface-mount design for low-profile PCB layouts
• Suitable for automated pick-and-place assembly
• Strong mechanical stability after reflow soldering
• Can be easily cut to custom lengths
• Reliable electrical contact with mating female headers

Applications:

• Arduino, ESP32, and Raspberry Pi compatible boards
• Breakout boards and development modules
• Embedded systems and IoT hardware
• Prototyping and PCB testing setups
• Consumer electronics and industrial control boards
